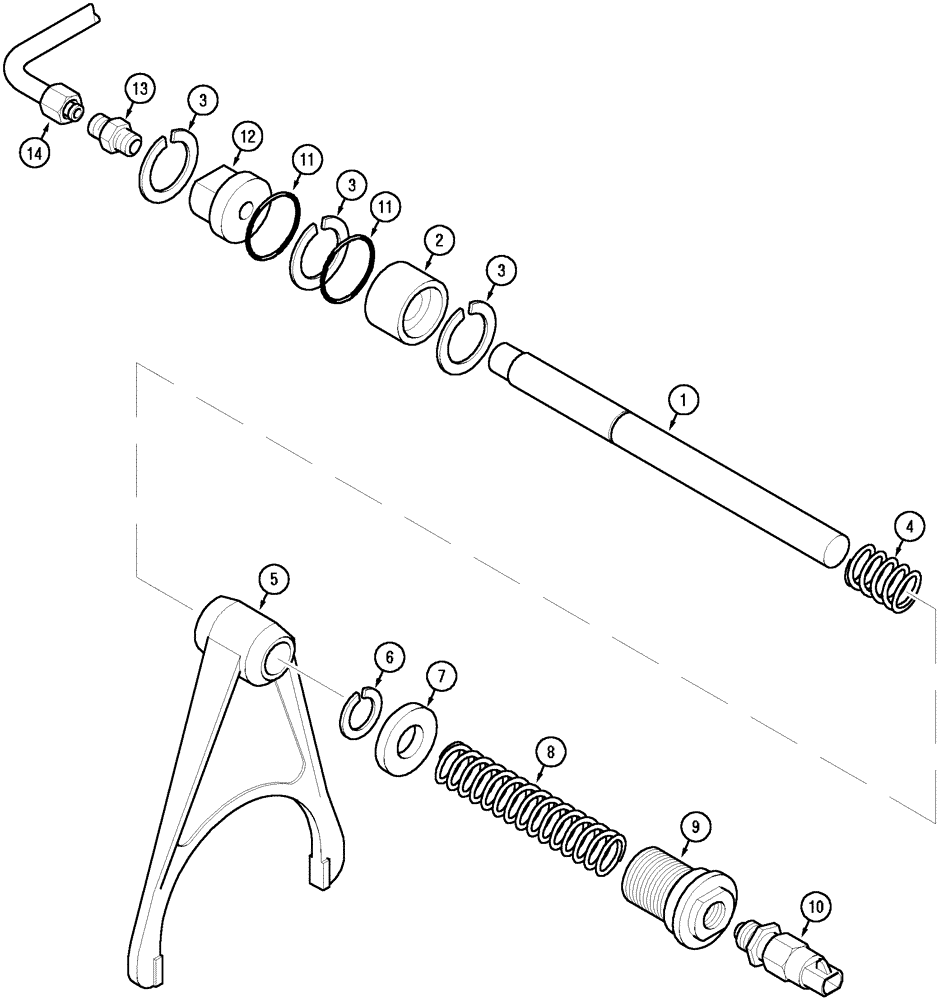

Запчасти Case IH CX50 (06-29) - DIFFERENTIAL LOCK INTERNAL (06) - POWER TRAIN

Hydraulic

1шт.

362377A1

PISTON

Consists Of 1,2

1шт.

1

NSS

NOT SOLD SEPARAT

Shaft

1шт.

2

NSS

NOT SOLD SEPARAT

Piston

1шт.

3

100-21150

SNAP RING,1.50", Int, #150

3шт.

4

282991A1

SPRING

1шт.

5

527875R3

SHIFTER FORK

1шт.

6

100-1675

SNAP RING,#75, Ext

1шт.

7

362378A1

THRUST WASHER

1шт.

8

282989A1

SPRING

1шт.

9

282990A1

SUPPORT

1шт.

10

177500A2

NEUTRAL START SWITCH

1шт.

11

238-5128

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

2шт.

12

282993A1

CAP

1шт.

13

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

1шт.

14

318539A1

HYD TUBE,0.375" OD, 350, 120 mm Length

1шт.
