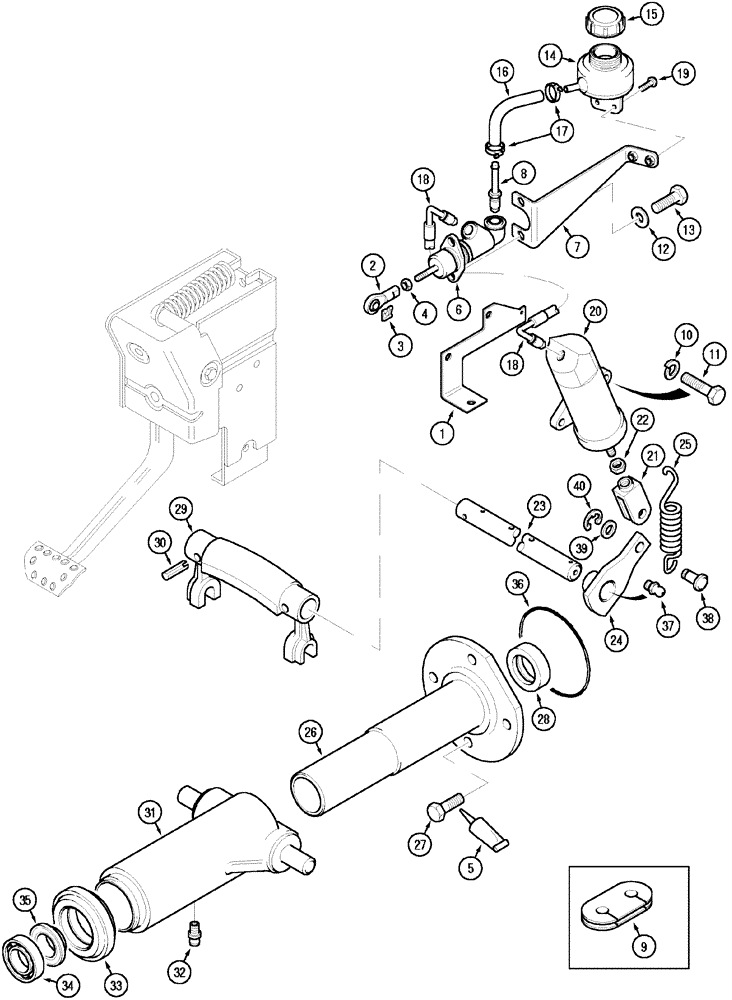

Запчасти Case IH CX50 (06-21) - CLUTCH HYDRAULIC CYLINDERS (06) - POWER TRAIN

*

- JJE1014494

1шт.

1

281259A2

SUPPORT ASSY.

1шт.

2

280984A1

BALL JOINT

1шт.

3

277059A1

CLIP

1шт.

4

829-4410

THIN NUT,Thin, M10 x 1.5, Cl 05

1шт.

5

345-75

SEALANT

1шт.

6

3129807R92

MASTER CYLINDER

CYLINDER,MASTER , See Page(s) 6-97

1шт.

6

86011371R

REMAN-MASTER CYLINDE

CX50, CX60, Both CASE IH CX-SERIES DIESEL TRACTOR, CYLINDER, MASTER (1/98-), Reman for New PN 3129807R92

1шт.

6

86011371C

CORE-MASTER CYLINDER

Return Number

1шт.

7

280420A2

SUPPORT

1шт.

8

3129659R1

PIPE ASSY.

1шт.

9

292673A1

GROMMET

1шт.

10

892-11010

LOCK WASHER,M10

2шт.

11

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

2шт.

13

613-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

2шт.

14

3129808R1

RESERVOIR

1шт.

15

1500731C3

CAP

1шт.

16

253915A3

HOSE

152 mm

1шт.

17

104609A1

CLAMP

2шт.

18

253914A2

HOSE

1050 mm

1шт.

19

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

20

3129800R92

MASTER CYLINDER

CYLINDER,MASTER

1шт.

21

713-2110

CLEVIS

1шт.

22

825-1410

NUT,M10, Cl 8

1шт.

23

280515A1

SHAFT

1шт.

24

280518A2

LEVER ASSY.

1шт.

25

1500587C2

SPRING

1шт.

26

242113A1

PIN

1шт.

27

326-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

4шт.

28

188931C1

OIL SEAL,47.63mm ID x 63.7mm OD x 8.41mm Thk

1шт.

29

253079A1

CLUTCH FORK

1шт.

30

38-32022

PIN,5/16" x 1 3/8", Coiled

5/16" x 1 3/8", Coiled

2шт.

31

253083A1

SLEEVE

Includes 32

1шт.

32

219-14

LUBE NIPPLE,1/4" NPTF

1шт.

33

85104C92

BALL BEARING,73.1mm ID x 101.6mm OD x 21.38mm W

1шт.

34

537290R91

BALL BEARING,20mm ID x 47mm OD x 14mm W

1шт.

35

224496A1

THRUST WASHER,53.6mm ID x 100mm OD x 4.5mm Thk

1шт.

36

238-5241

O-RING,0.139" Thk x 3.859" ID, -241, Cl 5, 75 Duro

1шт.

37

219-14

LUBE NIPPLE,1/4" NPTF

1шт.

38

294778A1

CLEVIS PIN,9.95mm OD x 34.2mm L

1шт.

39

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

1шт.

40

100-3337

SNAP RING,E-Type, 0.3" OD

1шт.

12

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

2шт.
