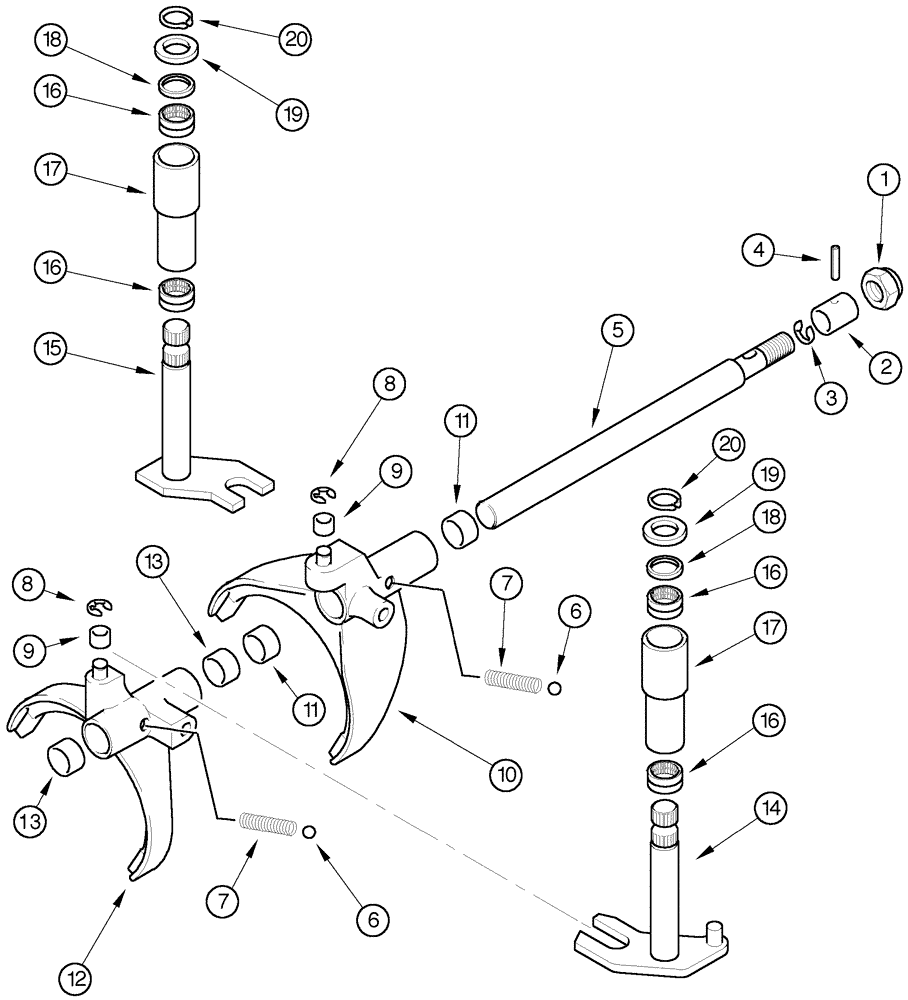

Запчасти Case IH CX50 (06-20) - RANGE SHIFT LINKAGE INNER (06) - POWER TRAIN

1

231-14412

LOCK NUT,3/4"-10, GB

1шт.

2

115543A1

SLEEVE

1шт.

3

115544A1

CIRCLIP

1.0 mm

1шт.

3

115545A1

CIRCLIP

0.9 mm

1шт.

3

115546A1

CIRCLIP

0.8 mm

1шт.

3

115547A1

CIRCLIP

0.7 mm

1шт.

3

115548A1

CIRCLIP

0.6 mm

1шт.

3

115549A1

CIRCLIP

0.5 mm

1шт.

4

38-31624

ROLL PIN,1/4" x 1 1/2", Coiled

1шт.

5

115542A3

RAIL

1шт.

6

211-1013

BALL,10.31mm OD, Gr 24

13/32; 24,CRS

2шт.

7

128866A1

SPRING

2шт.

8

100-3344

SNAP RING,#X43, .438" Dia, E-Type

2шт.

9

A178954

SLEEVE

2шт.

10

115528A1

SHIFTER FORK

Includes 11

1шт.

10

341478A1

SHIFTER FORK

Includes 11, With Creep Speed

1шт.

11

3057214R1

BUSHING

2шт.

12

311711A1

SHIFTER FORK

Includes 13, With Creep Speed

1шт.

13

3057214R1

BUSHING

2шт.

14

115538A2

ARM ASSY.

With Creep Speed

1шт.

14

309241A1

LEVER

With Creep Speed

1шт.

15

115540A2

ARM ASSY.

With Creep Speed

1шт.

15

309242A1

LEVER

With Creep Speed

1шт.

15

115555A1

ARM ASSY.

1шт.

16

359955R91

BEARING, NEEDLE,Needle, 19.04mm ID x 25.4mm OD x 15.76mm W

4шт.

17

115541A2

SLEEVE,25.4mm ID x 38mm OD x 90mm L

2шт.

18

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

2шт.

19

A186416

WASHER, THRUST

2шт.

20

100-1168

SNAP RING,#68, Ext

2шт.
