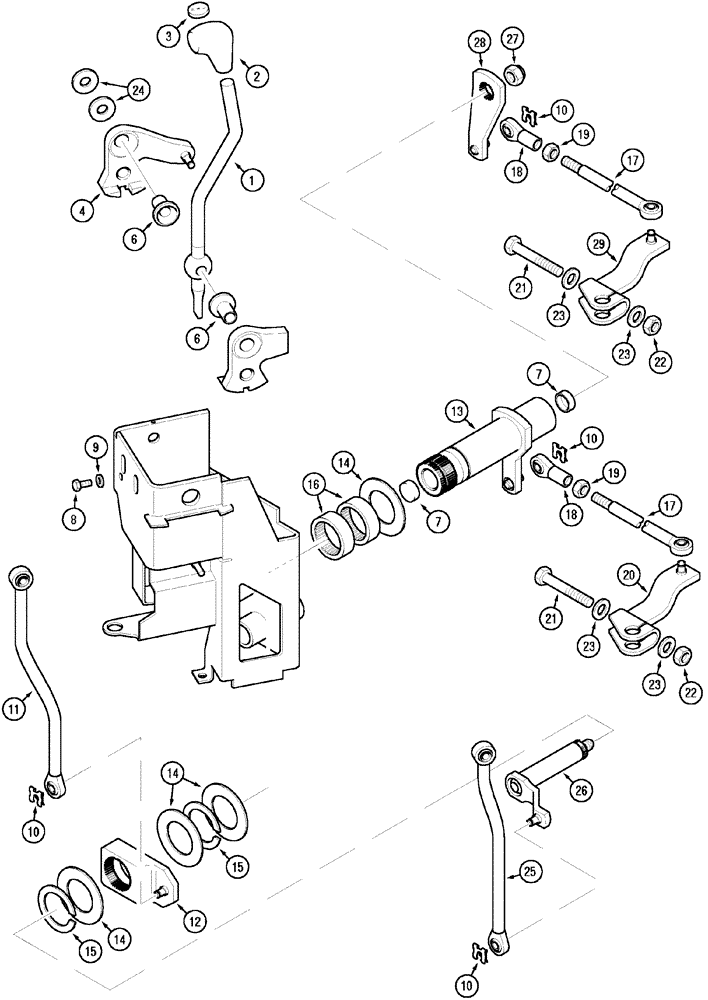

Запчасти Case IH CX50 (06-19) - RANGE SHIFT CONTROLS (06) - POWER TRAIN

External

1шт.

1

299092A2

LEVER

1шт.

1

316506A1

LEVER

With Creep Speed

1шт.

299093A2

BALL KNOB

Consists Of 2,3

1шт.

316505A2

BALL KNOB

With Creep Speed, Consists Of 2,3

1шт.

2

NSS

NOT SOLD SEPARAT

Knob

1шт.

3

327973A1

SYMBOLS

SYMBOL

1шт.

3

327974A1

SYMBOLS

SYMBOL , With Creep Speed

1шт.

4

294825A2

ARM ASSY.

Right

1шт.

4

311736A1

ARM ASSY.

With Creep Speed, Right

1шт.

5

294525A2

ARM ASSY.

Left

1шт.

5

311737A1

ARM ASSY.

With Creep Speed, Left

1шт.

6

T101960

BUSHING,14mm ID x 17mm OD x 20mm L

2шт.

7

41-1620

PLUG,Cup, 1 1/4", Stainless

1-1/4, Without Creep Speed

2шт.

8

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

4шт.

9

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

10

3226538R1

CLIP

1шт.

11

279950A2

LEVER

1шт.

12

280382A1

ARM

1шт.

13

281121A1

SHAFT

1шт.

14

495-81225

WASHER,1 17/32" x 2 1/2" x .060"

1-17/32 x 2-1/2 x 3/64

1шт.

15

100-11150

SNAP RING,#150, Ext

2шт.

16

116620A1

BEARING, NEEDLE

2шт.

279960A2

ROD ASSY.

With Creep Speed, Consists Of 17,18,19

1шт.

279962A2

ROD ASSY.

Consists Of 17,18,19

1шт.

17

NSS

NOT SOLD SEPARAT

Rod

1шт.

18

315610A1

BALL JOINT

Serial No. JJE1005920 -

1шт.

18b

280163A1

BALL JOINT

Serial No. - JJE1005919

1шт.

20

281868A1

LEVER ASSY.

1шт.

21

828-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

1шт.

22

829-1312

NUT,M12 x 1.75, Cl 10

1шт.

23

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

24

T102056

WASHER

2шт.

25

315699A1

ROD ASSY.

With Creep Speed

1шт.

26

315707A1

PIVOT

With Creep Speed

1шт.

27

131-208

SPECIAL NUT,1/2"-13

With Creep Speed

1шт.

28

315706A1

PIVOT

With Creep Speed

1шт.

29

315705A2

LEVER ASSY.

With Creep Speed

1шт.

19

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.
