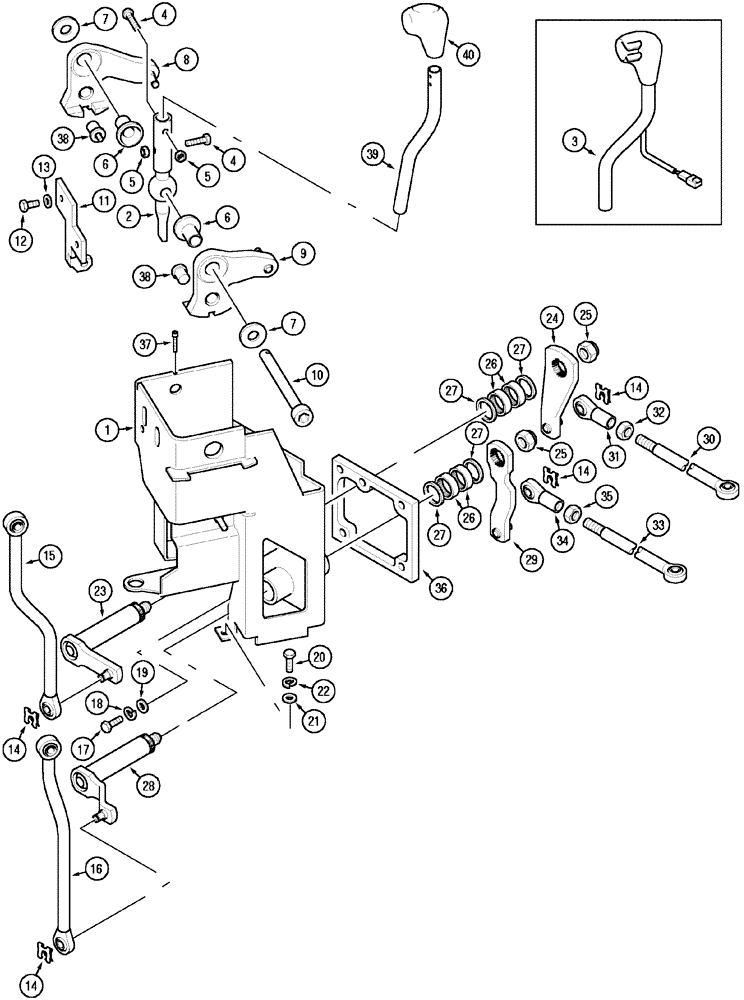

Запчасти Case IH CX50 (06-18) - GEAR SHIFT CONTROLS (06) - POWER TRAIN

External

1шт.

1

279353A5

SUPPORT

1шт.

2

294513A2

LEVER

1шт.

3

325678A2

LEVER

Includes 42, Serial No. - JJE1002940

1шт.

4

614-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8, Full Thd

2шт.

5

832-10406

NUT,M6 x 1, Cl 8

2шт.

6

T101960

BUSHING,14mm ID x 17mm OD x 20mm L

2шт.

7

T102056

WASHER

2шт.

8

311736A1

ARM ASSY.

Includes 38

1шт.

9

311737A1

ARM ASSY.

Includes 38

1шт.

10

1533898C1

STUD,27mm OD x 160mm L

1шт.

11

283646A1

SUPPORT

Interlock

1шт.

12

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

4шт.

13

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

14

3226538R1

CLIP

1шт.

15

279948A1

LEVER

1st and 2nd Speed

1шт.

16

279947A2

LEVER

3rd and 4th Speed

1шт.

17

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

5шт.

18

892-11010

LOCK WASHER,M10

5шт.

20

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

21

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

22

892-11008

LOCK WASHER,8mm ID

1шт.

23

281119A1

ARM ASSY.

1шт.

24

281120A1

ARM

1шт.

25

131-208

SPECIAL NUT,1/2"-13

2шт.

26

359955R91

BEARING, NEEDLE,Needle, 19.04mm ID x 25.4mm OD x 15.76mm W

4шт.

27

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

4шт.

28

282324A1

ARM

1шт.

29

281122A2

ARM

1шт.

279960A2

ROD ASSY.

Consists Of 30,31,32

1шт.

30

NSS

NOT SOLD SEPARAT

Rod

1шт.

31

315610A1

BALL JOINT

Serial No. JJE1005920 -

1шт.

31

280163A1

BALL JOINT

Serial No. - JJE1005919

1шт.

279959A2

ROD ASSY.

Consists Of 33,34,35

1шт.

33

NSS

NOT SOLD SEPARAT

Rod

1шт.

34

315610A1

BALL JOINT

Serial No. JJE1005920 -

1шт.

34

280163A1

BALL JOINT

Serial No. - JJE1005919

1шт.

36

248098A1

GASKET

1шт.

37

878-2058

SET SCREW,Hex Skt, M5 x 8mm, Cone Pt

M5 x 8

1шт.

38

NSS

NOT SOLD SEPARAT

Bushing Assy, Consists Of 38A,38B,38C

2шт.

38b

T102057

SPLIT PIN/SAFETY PIN

1шт.

38c

T102181

SPRING

1шт.

38d

1534604C1

BUSHING

1шт.

39

313314A1

LEVER

Serial No. JJE1002940 -

1шт.

40

313313A2

BALL KNOB

Serial No. JJE1002940 -, Includes 41

1шт.

41

327972A1

SYMBOLS

SYMBOL , Not Illustrated, 4 Speed H Pattern, Serial No. JJE1002940 -

1шт.

42

327971A1

SYMBOLS

SYMBOL , Not Illustrated, 4 speed H Pattern, Serial No. - JJE1002940

1шт.

32

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

35

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

19

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

6шт.
