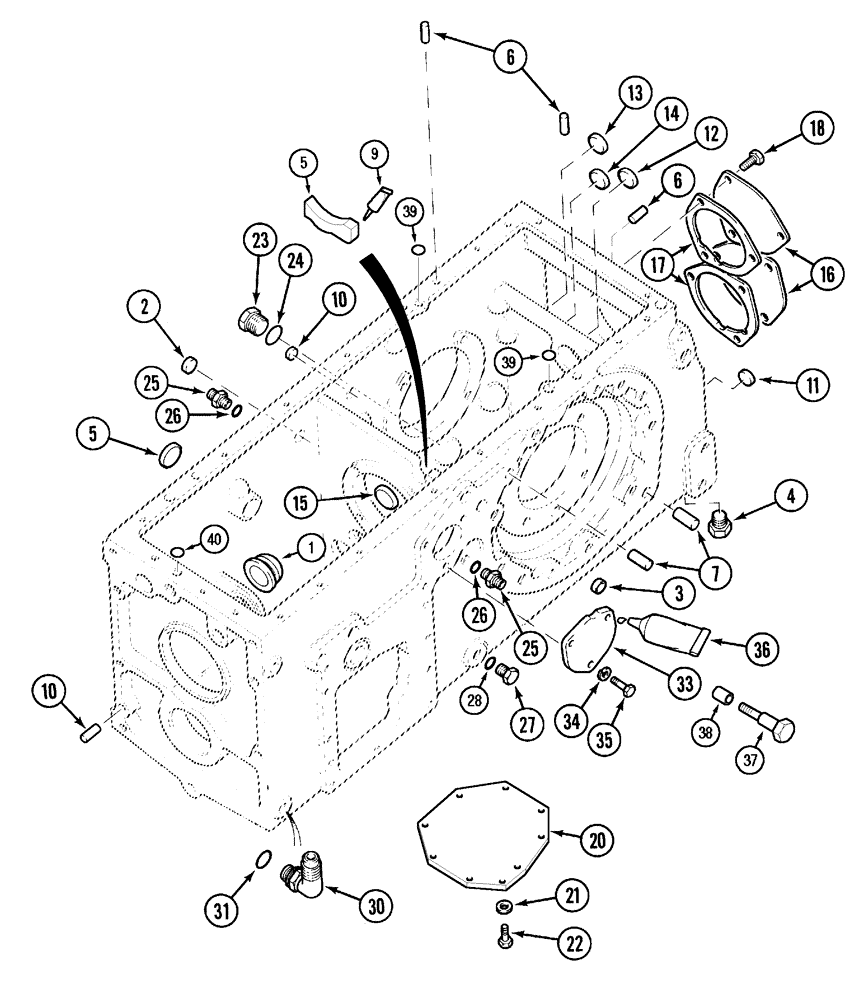

Запчасти Case IH CX50 (06-12) - REAR FRAME (06) - POWER TRAIN

Without Independent Power Take Off A

1шт.

254361A1

HOUSING ASSY.

Version Without Shiftable P.T.O., Includes 1 - 9

1шт.

322748A1

HOUSING ASSY.

Version Without Shiftable P.T.O., With Hydraulic Differential Lock, Includes 1 - 9

1шт.

254369A1

HOUSING ASSY.

With Creep Speed, Version Without Shiftable P.T.O., Includes 1,2,4 - 9

1шт.

254365A1

HOUSING ASSY.

Version With Shiftable PTO, Includes 1 - 9

1шт.

322752A1

HOUSING ASSY.

With Hydraulic Differential Lock, Version With Shiftable PTO, Includes 1 - 9

1шт.

254371A1

HOUSING ASSY.

With Creep Speed, Version With Shiftable PTO, Includes 1,2,4 - 9

1шт.

1

257422A1

PLUG

Oil Reservoir

1шт.

2

930342R1

PLUG,M16, Conical

16 mm dia, With Forward And Reverse

1шт.

3

41-1614

PLUG,Cup, 7/8", Stainless

7/8 in dia

1шт.

4

71100209

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

5

252858A1

SEAL

1шт.

6

37-1816

DOWEL,1/2" x 1"

1/2 x 1

4шт.

7

37-11024

DOWEL,5/8" x 1 1/2"

5/8 x 1-1/2

4шт.

8

37-1820

DOWEL,1/2" x 1 1/4"

1/2 x 1-1/4

1шт.

9

345-188

GLUE

1шт.

10

41-1612

PLUG,Cup, 3/4", Stainless

Without Differential Lock

2шт.

11

41-1036

PLUG,Cup, 2 1/4"

Without Dual Independent Power Take Off

1шт.

12b

41-1622

PLUG,Cup, 1 3/8", Stainless

1-3/8 in dia

1шт.

13b

41-1036

PLUG,Cup, 2 1/4"

1шт.

14

41-1040

PLUG,Cup, 2 1/2"

2-1/2 in dia

1шт.

15

41-1034

PLUG,Cup, 2 1/8"

2-1/8 in dia

1шт.

16b

399842R1

COVER

Rear Frame

2шт.

17

1970891C1

GASKET

Rear Frame, Independent Power Take Off

2шт.

18

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

6шт.

20

94293C2

COVER

4WD

1шт.

21

396-21053

WASHER,17/32" x 1 1/16" x .134"

9шт.

22

326-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

9шт.

23

273916

PLUG,Hex, 1-5/16" - 12 ORB

Auxiliary Hydraulic Pump, Includes Ref. 24

1шт.

24

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

25

3129671R1

FITTING

Brake

2шт.

26

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

3шт.

27b

9672438

PLUG,7/16" - 20 ORB

Incl. 28

1шт.

28

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

30

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes 31

1шт.

31

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

33

116599A2

COVER

4WD

1шт.

33

119248A1

SUPPORT

2WD, See Page(s) 7-9

1шт.

34

492-11038

LOCK WASHER,3/8"

4WD

2шт.

35

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

4WD

2шт.

36

B17501

LOCTITE

6 ml

1шт.

37

135925A1

BOLT,Hex, 3/8" - 16 - 14.22 - 14.30mm x 56mm L

4WD

1шт.

38

135951A1

SPACER

4WD

1шт.

39

238-6110

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

2шт.

40

238-6112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

7/8 ID x 1/8

1шт.
