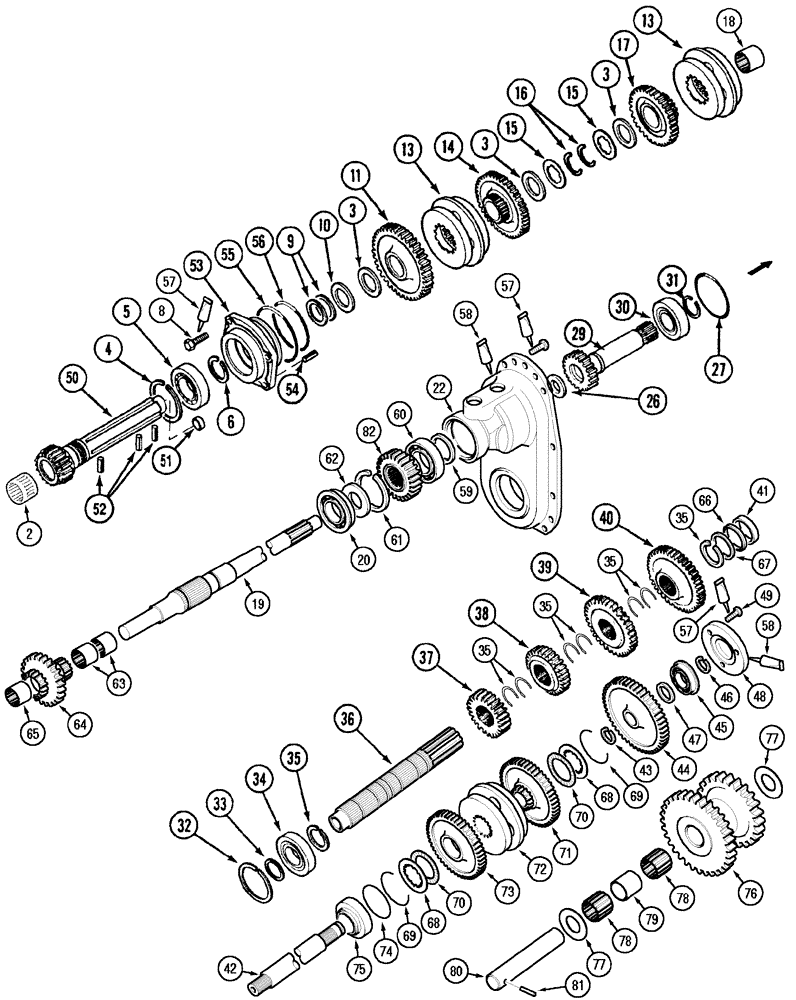

Запчасти Case IH CX50 (06-05) - SPEED TRANSMISSION (06) - POWER TRAIN

2

116589A1

BEARING, NEEDLE,37.3mm ID x 50.01mm OD x 28.5mm W

1шт.

3

A54022

THRUST BEARING,44.56mm ID x 63.13mm OD x 1.98mm W

3шт.

4

A32422

SNAP RING,2.36mm Thk, Int

1шт.

5

ST264

BEARING, BALL,50 mm ID x 90 mm OD x 20 mm

Main Shaft

1шт.

6

A27089

SNAP RING,2.36mm Thk, Ext

1шт.

8

326-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

9

116597A1

SEAL

2шт.

10

390362R1

THRUST WASHER,44.63mm ID x 63mm OD x 3.16mm Thk

1шт.

11

242182A1

PINION

45T

1шт.

11

245207A1

PINION

41T

1шт.

13

304844A1

SYNCHRONIZER

See Page(s) 6-27

2шт.

14

242183A1

PINION

36T

1шт.

14

245208A1

PINION

33T

1шт.

15

245832A1

WASHER

3.2 mm

2шт.

16

398329R1

CIRCLIP

2.36 mm

1шт.

16

254509A1

CIRCLIP

1.85 mm

1шт.

16

254510A1

CIRCLIP

2.1 mm

1шт.

16

256519A1

CIRCLIP

2.62 mm

1шт.

17

242188A2

PINION

24T, 30 km/h

1шт.

17

242186A2

PINION

32T, 40 km/h

1шт.

18

A76557

BEARING,31.75mm ID x 41.3mm OD x 18.86mm W

1шт.

19

241610A1

SHAFT

Clutch

1шт.

20

ST243

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

Clutch Shaft

1шт.

22

241609A1

COVER

1шт.

26

114321A1

OIL SEAL

1шт.

27

238-5241

O-RING,0.139" Thk x 3.859" ID, -241, Cl 5, 75 Duro

1шт.

29

241692A1

SHAFT

1000rpm/25T

1шт.

29

241694A1

SHAFT

750rpm/22T

1шт.

30

237417A1

BEARING, BALL,49.99mm ID x 89.99mm OD x 19.94mm W

1шт.

31

101-11196

SNAP RING,#196, 1.849", Ext

1шт.

32

574964R1

RING, SNAP

RING SNAP

1шт.

33

101-11177

SNAP RING,#177, 1.657", Ext

1шт.

34

ST201

BEARING, BALL,45mm ID x 85mm OD x 19mm W

1шт.

35

258444A1

SNAP RING

8шт.

36

258453A2

SHAFT

1шт.

37

258446A1

PINION

22T

1шт.

37

258445A1

PINION

26T

1шт.

38

258448A1

PINION

31T

1шт.

38

258447A1

PINION

34T

1шт.

39

258451A1

PINION

43T, 30 km/h

1шт.

39

258452A1

PINION

64T, 40 km/h

1шт.

40

258449A1

PINION

39T, 30 km/h

1шт.

40

258450A1

PINION

37T, 40 km/h

1шт.

41

112822R91

NEEDLE BEARING,Needle, 50.78mm ID x 60.31mm OD x 25.4mm W

1шт.

42

135986A2

SHAFT

1шт.

43

101-11118

SNAP RING,#118, 1.121", Ext

1шт.

44

241693A1

PINION

1000rpm/50T

1шт.

44

241695A2

PINION

750rpm/59T

1шт.

45

135990A1

BEARING, BALL,19.99mm ID x 71.99mm OD x 18.94mm W

1шт.

46

800-1120

SNAP RING,M20, Ext

1шт.

47

244076A1

SPACER

1шт.

48

242111A1

FLANGE

1шт.

49

326-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 8

3шт.

50

254508A2

SHAFT ASSY.

Main, Includes 51,52

1шт.

51

115583A1

PLUG

5/8 in dia

1шт.

52

38-1805

LOCK PIN,1/8" x 5/16", Slotted

1/8" x 5/16", Slotted

3шт.

53

253944A2

BALL RACE

Includes 54

1шт.

54

38-1605

LOCK PIN,2.36mm OD x 7.92mm L, Slotted

3/32" x 5/16", Slotted

1шт.

55

638-54125

O-RING,3.55mm Thk x 125mm ID, Cl 5, 75 Duro

125 ID x 3,55

1шт.

56

638-54115

O-RING,3.55mm Thk x 115mm ID, Cl 5, 75 Duro

115 ID x 3,55

1шт.

57

345-75

SEALANT

1шт.

58

B17501

LOCTITE

6 ml

1шт.

59

A21619

CIRCLIP

1шт.

60

ST205A

BEARING, BALL,35 mm ID x 72 mm OD x 17 mm

1шт.

61

377911R1

RING, SNAP

RING SNAP

1шт.

62

402562R1

THRUST WASHER

1шт.

63

A12652

NEEDLE BEARING,1" ID x 1.251" OD x 0.75"

2шт.

64

242185A2

PINION

28T, 30 km/h

1шт.

64

242184A2

PINION

29T, 40 km/h

1шт.

65

A76557

BEARING,31.75mm ID x 41.3mm OD x 18.86mm W

1шт.

66

241615A1

RING

1шт.

67

241614A1

SEALING RING

SEALRING

1шт.

- JKA406058

1шт.

68

246250A1

WASHER

2.25 mm

1шт.

68

246251A1

WASHER

2.55 mm

1шт.

68

246252A1

WASHER

2.85 mm

1шт.

68

246253A1

WASHER

3.15 mm

1шт.

69

100-11187

SNAP RING,#187, Ext

JKA406059 -

2шт.

68

301037A1

SHIM

2.25 mm

1шт.

68

301038A1

SHIM

2.55 mm

1шт.

68

298482A1

SHIM

2.85 mm

1шт.

68

301039A1

SHIM

3.15 mm

1шт.

69

100-11168

SNAP RING,#168, Ext

2шт.

70

241601A1

BEARING, NEEDLE,50.91mm ID x 69.47mm OD x 1.98mm W

2шт.

71

254723A3

GEAR

44T, Reverse

1шт.

71

241611A4

SPROCKET ASSY.

46T, Reverse

1шт.

72

298397A2

SYNCHRONIZER

Forward-Reverse, See Page(s) 6-27

1шт.

73

254718A3

SPROCKET ASSY.

42T, 30 km/h

1шт.

73

254717A3

GEAR

40T, 40 km/h

1шт.

74

241599A1

SEALING RING

SEALRING

1шт.

75

241616A1

RING

1шт.

76

241703A1

SPROCKET ASSY.

26/30T, 30 km/h

1шт.

76

241699A1

SPROCKET ASSY.

25/30T, 40 km/h

1шт.

76

241612A2

SPROCKET ASSY.

25/28T

1шт.

77

3112846R1

THRUST WASHER

2шт.

78

A58077

ROLLER BEARING,25.395 mm ID x 33.3578 mm OD x 25.21 mm

1.313 in

2шт.

79

277922A1

SPACER

1шт.

80

277921A1

SHAFT

1шт.

81

838-3620

PIN,6mm OD x 20mm L, Coiled

1шт.

82

241613A1

PINION

26T, 8 Speed

1шт.
