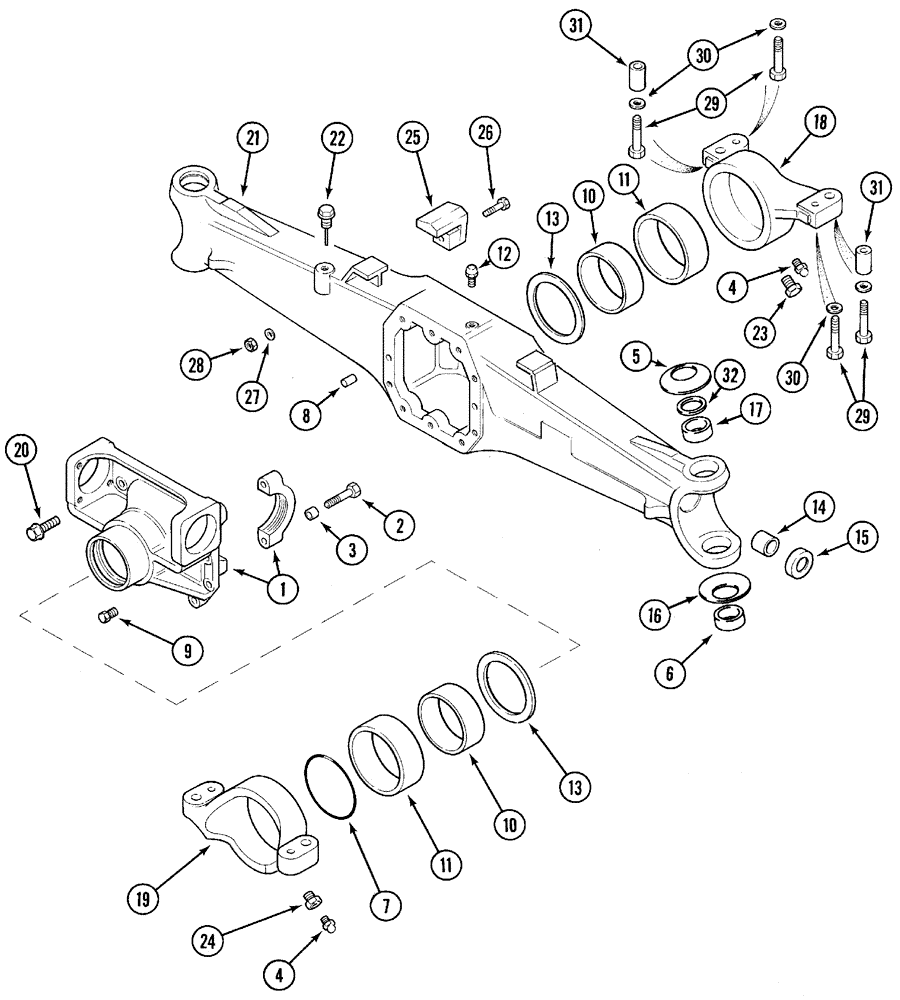

Запчасти Case IH CX50 (05-09) - AXLE HOUSING - M.F.D. (05) - STEERING

- JJE1015565

1шт.

1985085C3

4WD AXLE ASSY

1шт.

193521A2

4WD AXLE ASSY

10/32, Front, Consists Of 1 - 24

1шт.

1

100521A1

SUPPORT

Differential

1шт.

2

S301065

BOLT,Hex Flg, M14 x 75, 12.9

4шт.

3

1966136C1

BUSHING,15mm ID x 18mm OD x 12mm L

Center

4шт.

4

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

2шт.

5

122270A1

BELLEVILLE WASHER,36mm ID x 71mm OD x 2mm Th

4шт.

6

100520A1

SPHERICAL BEARING,25mm ID x 47mm OD x 15mm W

2шт.

7

K965267

O-RING,0.07" Thk x 4.489" ID

1шт.

8

1966138C1

DOWEL

2шт.

9

110782A1

PLUG, DRAIN

1шт.

10

K965266

BUSHING

2шт.

11

K965265

BUSHING

2шт.

12

1966149C2

BREATHER

1шт.

13

K395022

WASHER

2шт.

14

1966186C1

BUSHING

2шт.

15

1966191C1

OIL SEAL

Serial No. - JKA037835, Order Also 311566A1

2шт.

15

311565A1

OIL SEAL

Serial No. JKA037836 -

2шт.

16

122268A1

BELLEVILLE WASHER

4шт.

17

100522A1

BUSHING

2шт.

18

1537607C1

SUPPORT

1шт.

19

1537608C1

SUPPORT

1шт.

20

5194169

BOLT,Hex Flg, M12 x 33, 12.9

10шт.

21

137045A2

HOUSING

1шт.

22

1537610C1

DIPSTICK

1шт.

23

1537654C1

BOLT

1шт.

24

1537655C1

BOLT

1шт.

25

1537537C1

STOP

2шт.

26

814-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

2шт.

27

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

2шт.

28

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

29

626-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9, Full Thd

Hex, M16 x 80, 10.9

8шт.

30

3141764R1

WASHER

M16

8шт.

31

838-42136

LOCK PIN,M21 x 36, Slotted

21 x 36 mm

4шт.

32

136990A1

WASHER

2шт.
