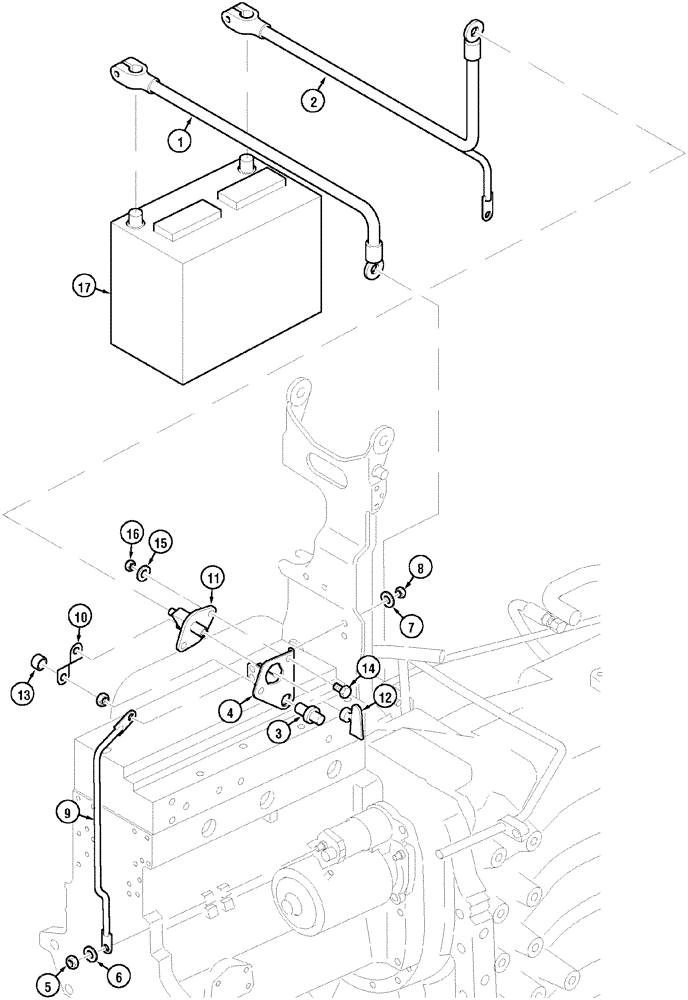

Запчасти Case IH CX100 (04-33) - BATTERY AND CABLES (04) - ELECTRICAL SYSTEMS

Starter

1шт.

1

225988A2

CABLE

- ve, Ground, With Disconnect

1шт.

2

374274A1

CABLE

1 Battery, With Disconnect, With Jump Stud

1шт.

3

1964554C1

TERMINAL

1шт.

4

326256A1

SUPPORT

1шт.

5

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

6

892-11008

LOCK WASHER,8mm ID

1шт.

7

892-11006

LOCK WASHER,M6

2шт.

8

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

9

333584A2

CABLE ASSY.

1шт.

10

374619A1

CONNECTOR, ELEC

CONNECTOR

1шт.

11

1983240C1

SWITCH

Includes 12

1шт.

12

1539005C1

IGNITION KEY

1шт.

13

3221520R1

CAP

3шт.

14

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

15

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

16

832-10406

NUT,M6 x 1, Cl 8

2шт.

17

1502296C1

BATTERY, DRY

BATTERY DRY 12V

1шт.
