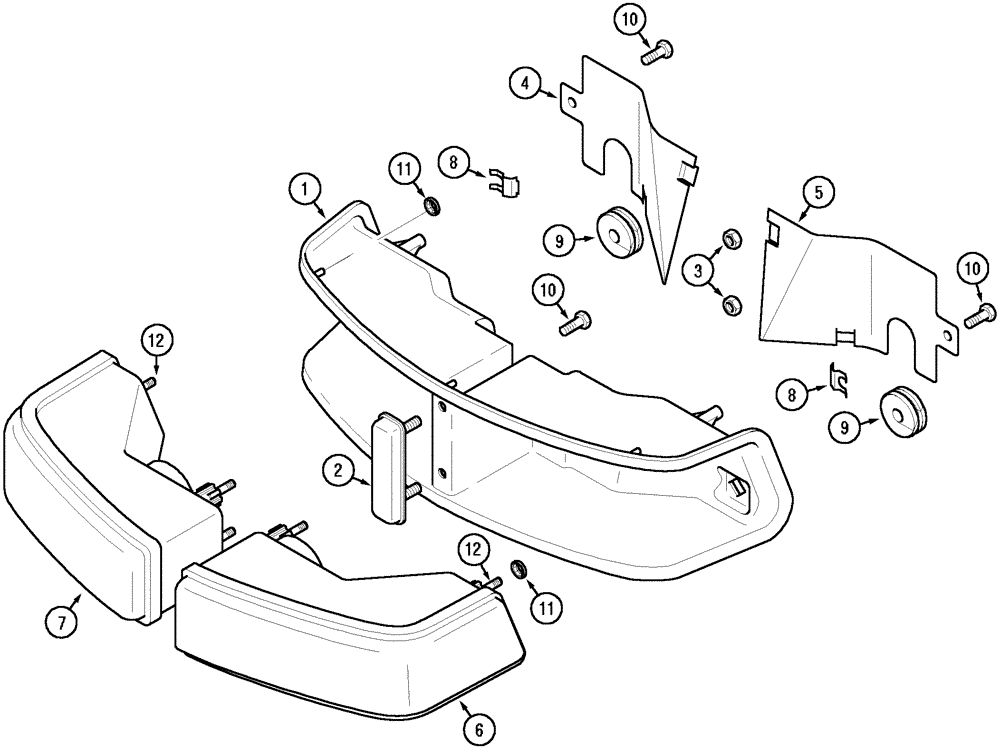

Запчасти Case IH CX100 (04-20) - HEADLIGHTS (04) - ELECTRICAL SYSTEMS

Europe Only

1шт.

1

311297A1

HOUSING

1шт.

2

310962A1

LINING

1шт.

3

131-431

PUSH-ON NUT,Self, Threading, 1/4"

2шт.

4

303583A1

COVER

Right

1шт.

5

303585A1

COVER

Left

1шт.

6

232449A2

HEADLIGHT,Halogen/Incandescent, 12V, Clear

With Worklight, Left, RH Dip

1шт.

6

232451A2

HEADLIGHT,Halogen/Incandescent, 12V, Clear

With Worklight, Left, LH Dip, For UK

1шт.

7

232448A2

HEADLIGHT,Halogen/Incandescent, 12V, Clear

With Worklight, Right, RH Dip

1шт.

7

232450A2

HEADLIGHT,12V

With Worklight, Right, LH Dip, For UK

1шт.

8

259713A1

CLIP

If So Equipped

6шт.

9

284238A1

GROMMET

2шт.

10

780-34616

SELF-TAP SCREW,Hex Wash Hd, M6.3 x 16

6.3 x 16 mm, If So Equipped

2шт.

11

1536080C1

PUSH-ON NUT

6шт.

12

780-34619

SELF-TAP SCREW,Hex Wash Hd, M6.3 x 19

6.3 x 19 mm

6шт.

N.A. Only

1шт.

1

311298A1

HOUSING

1шт.

2

313332A1

LINING

1шт.

3

131-431

PUSH-ON NUT,Self, Threading, 1/4"

2шт.

4

303583A1

COVER

Right

1шт.

5

303585A1

COVER

Left

1шт.

6

232453A2

HEADLIGHT

With Worklight, Left, RH Dip

1шт.

7

232452A2

HEADLIGHT

With Worklight, Right, RH Dip

1шт.

8

259713A1

CLIP

If So Equipped

6шт.

9

284238A1

GROMMET

2шт.

10

780-34616

SELF-TAP SCREW,Hex Wash Hd, M6.3 x 16

6.3 x 16 mm, If So Equipped

2шт.

11

1536080C1

PUSH-ON NUT

6шт.

12

780-34619

SELF-TAP SCREW,Hex Wash Hd, M6.3 x 19

6.3 x 19 mm

6шт.
