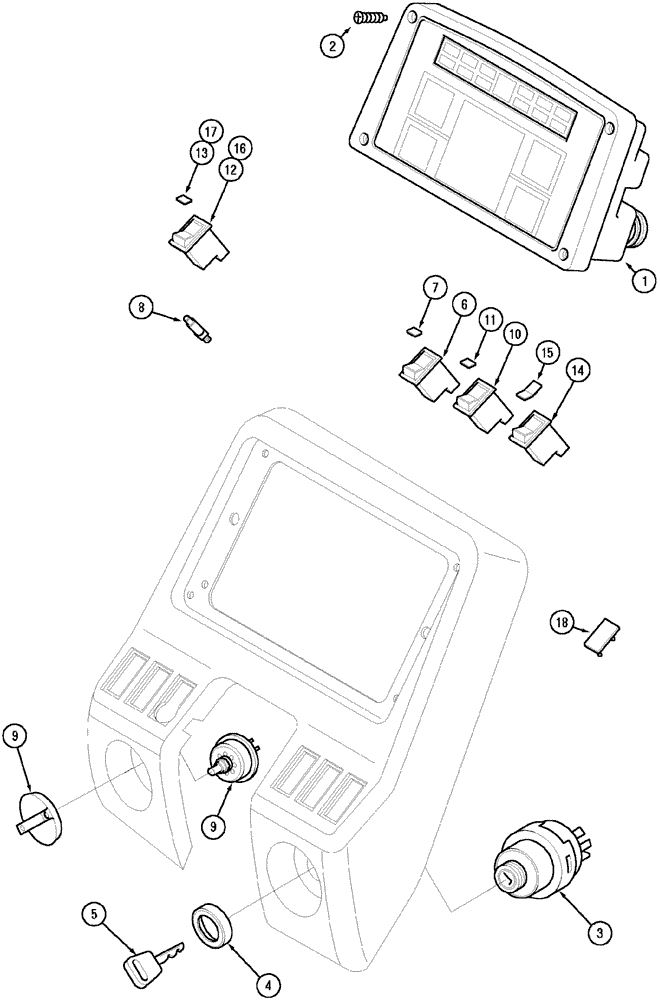

Запчасти Case IH CX100 (04-12) - INSTRUMENT PANEL (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

Cluster Assy, Instr., Standard, See Page(s) 4-37

1шт.

1

REF

INSTRUCTION

Cluster, Instr., De-Luxe, See Page(s) 4-35

1шт.

2

260-16516

SELF-TAP SCREW,Cross Pan Hd, #10 x 1"

4шт.

3

282775A1

IGNITION SWITCH

Ignition, Includes 4,5B

1шт.

4

A77314

NUT

1шт.

5

A77313

SET OF 2 KEYS

Metal Without Padding

1шт.

5b

1964831C2

IGNITION KEY

Padded, Included With 282775A1 Switch; Cab

1шт.

6

245908C1

FLASHER SWITCH

Hazard Warning, Europe Only

1шт.

7

1983283C1

SYMBOLS

SYMBOL , Red

1шт.

8

134608A1

LAMP SOCKET

Includes Bulb

1шт.

3141107R1

BULB,W5/1.2, 12V, 1.2W

1шт.

9

197168A1

SWITCH

Headlight, 3 Position, Europe Only

1шт.

9

177249A1

ASSEMBLY

Headlight, 4 Position, N.A. Only

1шт.

194109A1

SWITCH

Worklight, Includes 10,11

1шт.

10

196946A1

LIGHT SWITCH

1шт.

11

1983589C1

SYMBOLS

SYMBOL , Yellow

1шт.

3141107R1

BULB,W5/1.2, 12V, 1.2W

1шт.

12

3231782R1

SWITCH

Thermostart, Europe Only

1шт.

13

183042A1

SYMBOLS

SYMBOL , Black

1шт.

14

225024A2

LIGHT SWITCH

Roof Lights, With Front Hitch, Europe Only

1шт.

15

190525A3

SYMBOLS

SYMBOL , Green

1шт.

194110A1

SWITCH

Ether Start, N.A. Only, Includes 16,17

1шт.

16

3231782R1

SWITCH

1шт.

17

1983275C1

SYMBOLS

SYMBOL

1шт.

18

245918C1

LENS

Blanking rocker switch

1шт.
