Запчасти Case IH CX100 (04-09) - HARNESS - REAR FENDER (04) - ELECTRICAL SYSTEMS

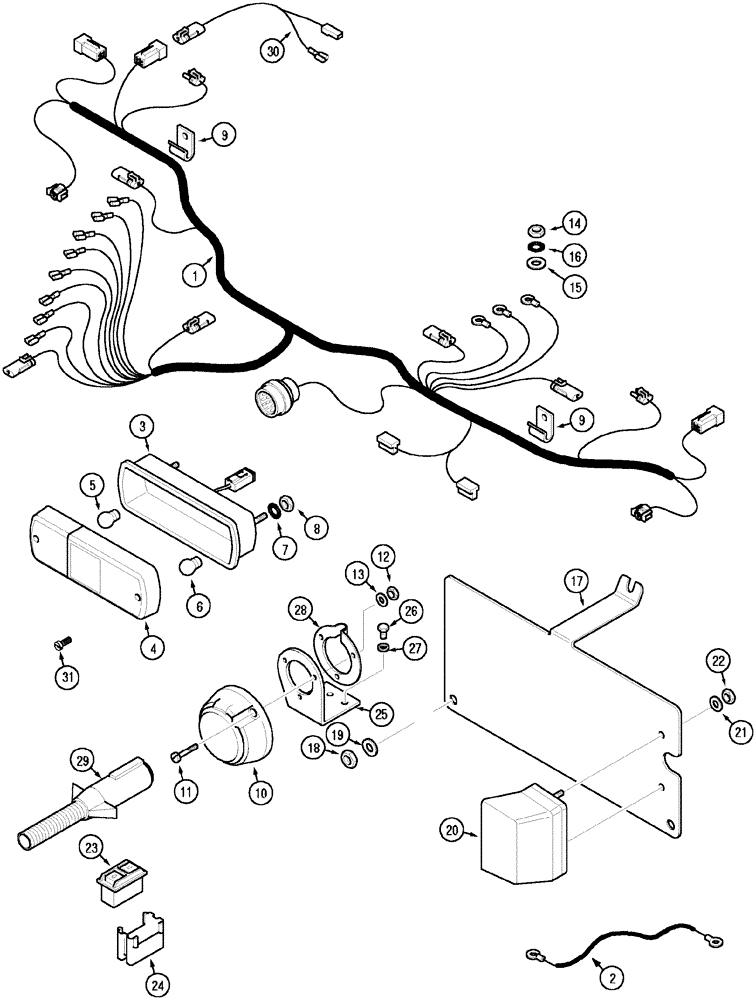

Схема запчастей Case IH CX100 - (04-09) - HARNESS - REAR FENDER (04) - ELECTRICAL SYSTEMS
28
12
11
8
31
24
22
1
26
21
6
9
4
10
27
14
13
9
7
20
29
15
16
18
23
2
25
3
17
5
19

Артикул

Название

Примечание

Количество

Europe Only

1шт.

1

243128A2

HARNESS

With Cab

1шт.

1

310952A1

HARNESS

Platform

1шт.

2

192935A1

CABLE

1шт.

3

177239A2

LAMP, TAIL

LIGHT, TAIL , Combination, Right, Consists Of 4 - 6, 31

1шт.

3

259816A1

LAMP, TAIL,12V, 21W, Amber/Red

LIGHT, TAIL , Combination, Left, Consists Of 4 - 6, 31

1шт.

4

187140A1

LENS

1шт.

5

1094366R1

BULB

12V, 21w, Turn Signal

1шт.

6

3131234R1

BULB,P25-2, 12V, 5W

Stop - Tail Lights

1шт.

7

893-11006

LOCK WASHER,Ext Tooth, M6

4шт.

8

829-1406

NUT,Hex, M6 x 1, Cl 10.9

4шт.

9

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

2шт.

10

230228A1

ELEC CONNECTOR,7 Pole

1шт.

11

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

3шт.

12

825-1408

NUT,M8, Cl 8

3шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

14

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

15

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

16

892-11008

LOCK WASHER,8mm ID

1шт.

17

251881A2

LARGE PLATE

PLATE, LARGE

1шт.

18

825-1408

NUT,M8, Cl 8

3шт.

19

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

20

92190C1

LIGHT,12V, 10W

1шт.

21

892-11005

LOCK WASHER,M5

2шт.

22

824-1405

NUT,M5, Cl 5

2шт.

23

220415A2

SWITCH ASSY

Hitch, Remote Control

2шт.

24

220416A2

CLAMP

2шт.

25

1961336C2

SUPPORT

Connector, 7 Pin

1шт.

26

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

2шт.

27

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

28

3131909R1

CAP

1шт.

29

121646C1

TERMINAL CONNECTOR,Female

7 pin

1шт.

30

304972A2

HARNESS

Beacon Light

1шт.

31

83960379

SCREW,Pan HD, M4 x 50.25mm

Tail light Lens

2шт.

Выбрано товаров: 34
