Запчасти Case IH CX100 (04-06) - HARNESS - CAB ROOF (04) - ELECTRICAL SYSTEMS

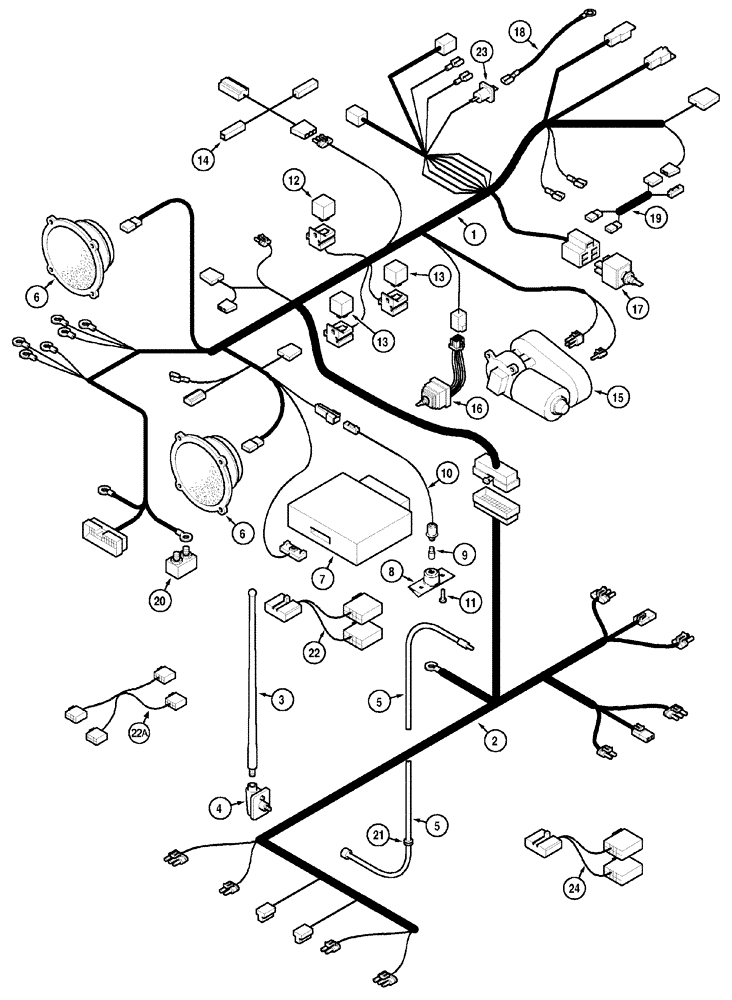

Схема запчастей Case IH CX100 - (04-06) - HARNESS - CAB ROOF (04) - ELECTRICAL SYSTEMS
7
20
5
12
13
17
13
21
1
18
6
5
4
11
10
22a
3
8
14
16
9
22
2
24
23
15
6
19

Артикул

Название

Примечание

Количество

1

296736A1

HARNESS

Inner

1шт.

2

229047A2

HARNESS

Outer

1шт.

197745A1

ANTENNA

410 mm, Consists Of 3,4

1шт.

3

198960A1

ANTENNA

360 mm

1шт.

4

NSS

NOT SOLD SEPARAT

Body

1шт.

5

198962A1

CABLE

750 mm

1шт.

5

1983247C1

CABLE

1500 mm

1шт.

6

182721A2

SPEAKER

5-1/2

2шт.

7

366631A2

RADIO

Delco, N.A. Only

1шт.

7

355623A2

RADIO

Delco, Cassette, N.A. Only

1шт.

7

141950A2

RADIO

N.A. Only Audio Vox

1шт.

7

141951A2

RADIO

Cassette, N.A. Only Audio Vox

1шт.

7

284761A1

RADIO

Philips, Cassette, Europe Only Philips

1шт.

7

284762A1

RADIO

Philips, Cassette, Europe Only Philips RDS

1шт.

8

83882C91

LAMP

Includes 9,10

1шт.

9

D71346

TAIL LAMP,12V

No. 168

1шт.

10

107329C1

WIRE HARNESS

1шт.

11

1977686C1

SCREW

4,2 x 25 mm

2шт.

12

384114A1

RELAY

20 amp, Control

1шт.

13

384114A1

RELAY

20 amp, Blower

2шт.

14

254919A1

HARNESS

Dome, Light

1шт.

15

REF

INSTRUCTION

Motor, Wiper, See Page(s) 4-93

1шт.

16

357662A1

WINDSHIELD WIPER SWI

Windshield Wiper Front, See Page(s) 9-71

1шт.

17

168822C2

SWITCH

Blower, New Style Switch is 403129A1

1шт.

18

236864A2

HARNESS,500mm L

Diode

1шт.

19

254920A2

HARNESS

A Post, Front Work Light

1шт.

20

92056C1

CIRCUIT-BREAKER

40 amp

1шт.

21

248-21110

GROMMET,1" ID x 1 3/8" Groove Dia

1 in

1шт.

22

296455A1

HARNESS

Adaptor, N.A. Only Delco

1шт.

22

296470A1

HARNESS

Adaptor, N.A. Only Audio Vox

1шт.

22b

379465A1

WIRE HARNESS

Delco, Adaptor

1шт.

23

355956A1

DIODE

1шт.

24

366526A1

WIRE HARNESS

Adaptor, N.A. Only Delco, Use With, Serial Range: YAXAKI-DELCO

1шт.

1534229C1

PUSH BUTTON SWITCH

Door, Not Illustrated

1шт.

765-34313

SELF-TAP SCREW,Oval Hd, M4.2 x 13

4,2 x 13 mm, Not Illustrated

1шт.

296456A2

CABLE

Not Illustrated

1шт.

Выбрано товаров: 36
