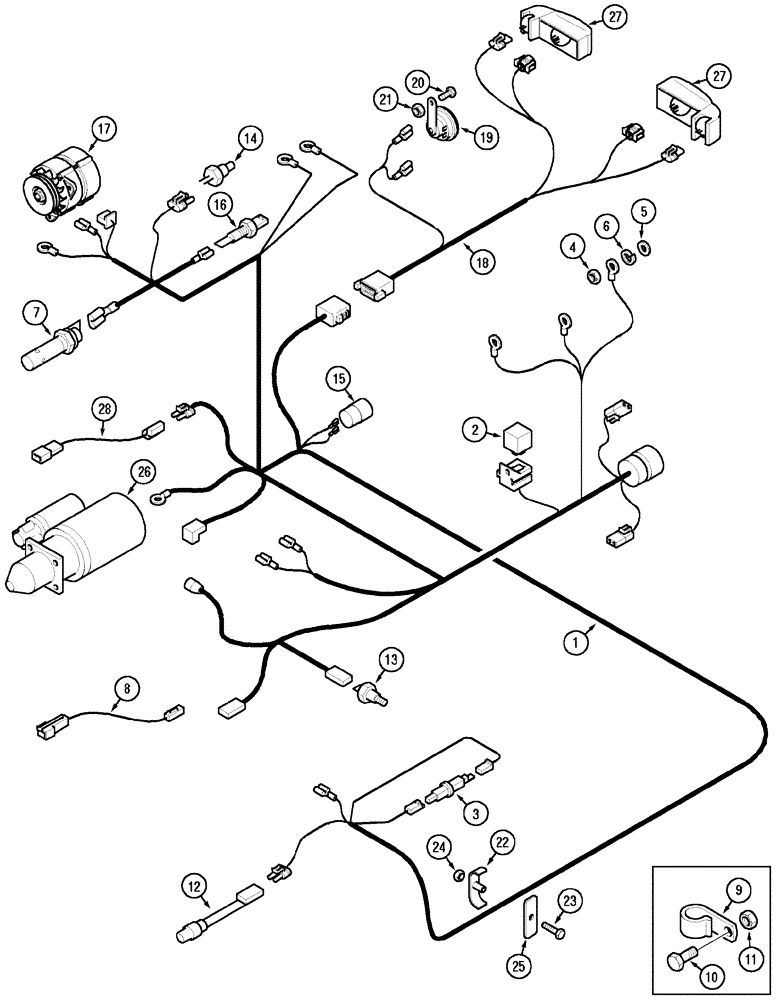

Запчасти Case IH CX100 (04-02) - HARNESS - ENGINE (SLOPING HOOD) (04) - ELECTRICAL SYSTEMS

1

373575A1

HARNESS

Use With 229301A1

1шт.

1

392594A1

HARNESS

Use With 388189A1

1шт.

2

296541A1

RELAY

80 amp

1шт.

3

113699A1

RECTIFIER

1шт.

4

832-46410

NUT,M10 x 1.5, Cl 8

1шт.

5

892-11010

LOCK WASHER,M10

1шт.

6

A39519

WASHER

1шт.

7

A77616

GLOW PLUG

Thermostart

1шт.

8

303353A1

CABLE

Fuel, If So Equipped

1шт.

9

516-23158

CLAMP,J, 11/16" Insul, 3/8" Bolt

1/2 x 5/8

4шт.

10

844-10016

BOLT,Hex, M10 x 16mm, Cl 8.8, Full Thd

M10 x 16; 8,8

2шт.

11

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

2шт.

12

232948A1

SWITCH, A/C HIGH PRE

2шт.

13

1534526C2

SWITCH, PRESSURE

PRESSURE SWITCH , Engine Oil Pressure

1шт.

14

243803A2

TEMPERATURE SENDER,1/2" - 14

Temperature

1шт.

15

279492A1

RESTRICTION SWITCH

Air Filter

1шт.

16

143417A3

SENSOR

Coolant

1шт.

17

REF

INSTRUCTION

65 amp, Alternator, See Page(s) 4-87

1шт.

18

298374A1

HARNESS

Hood

1шт.

19

237582A1

HORN

12V

1шт.

20

844-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

1шт.

21

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

22

275874A1

CLAMP

1шт.

23

844-6035

BOLT,Hvy Hex, M6 x 35mm, Cl 8.8

M6x35

1шт.

24

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

1шт.

25

279918A1

LARGE PLATE

PLATE, LARGE

1шт.

26

REF

INSTRUCTION

Iskra 3.0 Kw, Starter Assy, See Page(s) 4-85

1шт.

27

REF

INSTRUCTION

Lamp, Head, See Page(s) 4-51,53

2шт.

28

299360A1

HARNESS

Ether Start, Solenoid

1шт.
