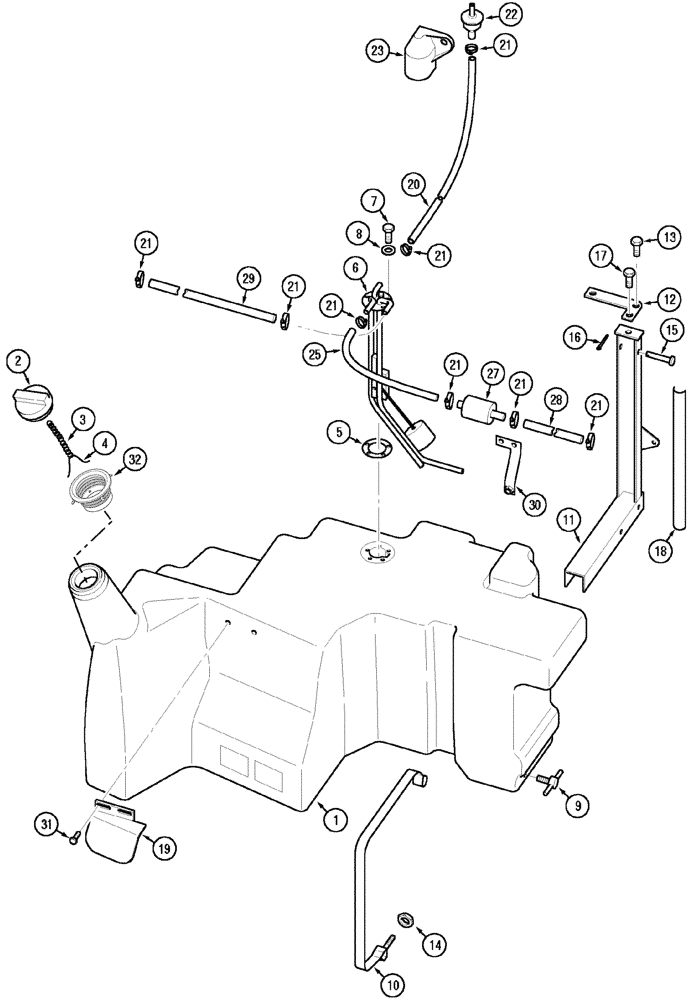

Запчасти Case IH CX100 (03-11) - FUEL TANK AND PIPING (03) - FUEL SYSTEM

245642A5

FUEL TANK

Serial No. - JJE1006246, Consists Of 1,2,3,4,9

1шт.

315062A2

FUEL TANK

Serial No. JJE1006247 -, Consists Of 1,2,3,4,9,32

1шт.

1

NSS

NOT SOLD SEPARAT

Tank Assy

1шт.

2

277106A1

LOCKABLE FUEL CAP

With Key 2

1шт.

2

87731275

CAP

Fuel, Non-Lockable

1шт.

278374A1

CHAIN (AG)

Consists Of 3,4

1шт.

3

NSS

NOT SOLD SEPARAT

Chain

1шт.

4

NSS

NOT SOLD SEPARAT

Retainer

1шт.

5

528359R4

GASKET,3.05mm Thk

1шт.

6

245558A2

FUEL GAUGE

1шт.

7

840-1520

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

5шт.

8

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

5шт.

9

217-92

COCK

1/4

1шт.

10

251939A2

STRAP

1шт.

11

294953A1

SUPPORT

1шт.

12

294892A2

LARGE PLATE

PLATE, LARGE

1шт.

13

326-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

1шт.

14

825-5148

SERRATED NUT,M8, Flg Ser

1шт.

15

1500270C1

HEADED PIN

1шт.

16

733-3220

COTTER PIN,M3.2 x 20

1шт.

17

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

18

1502167C1

CHANNEL

2шт.

19

248260A3

SUPPORT

1шт.

20

293949A1

FUEL HOSE

1200 mm, Cut From 194882C1

1шт.

21

1348264C1

HOSE CLAMP

3/8 ID

8шт.

22

T103750

BREATHER

1шт.

23

186814A1

CAP

1шт.

24

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

Not Illustrated

1шт.

25

293935A1

FUEL HOSE

1130 mm, Cut From 194882C1

1шт.

27

D139225

FILTER, FUEL

1шт.

28

253096A1

FUEL HOSE

50 mm, Cut From 194882C1

1шт.

29

259833A1

FUEL HOSE

Cut From Bulk Hose

1шт.

30

300468A1

SUPPORT

1шт.

31

844-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

2шт.

32

87731276

INSERT

1шт.
