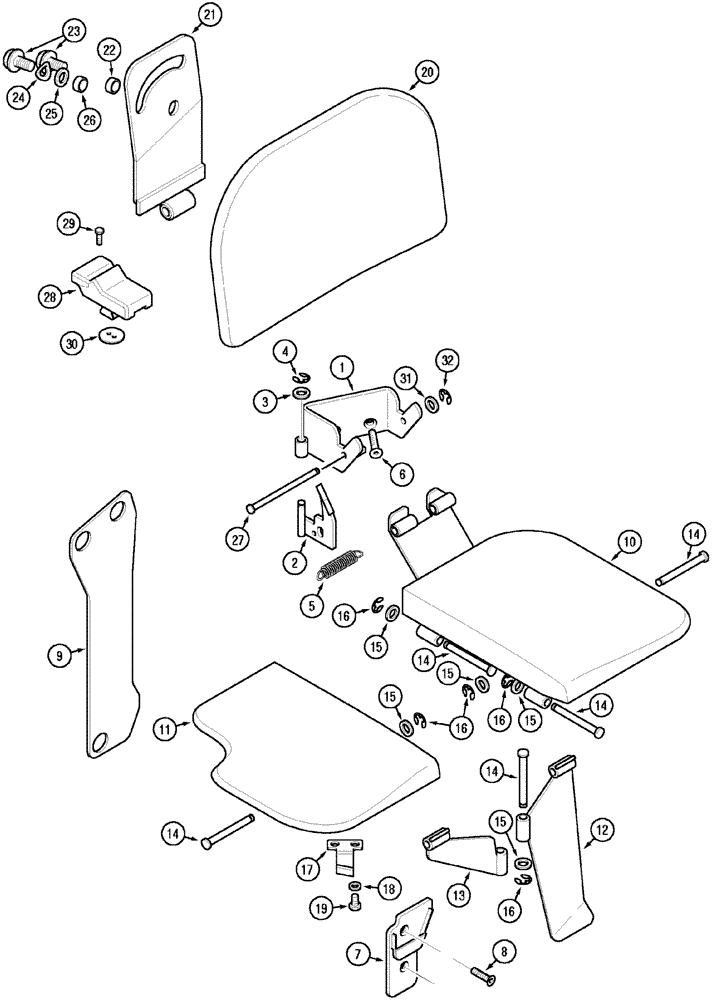

Запчасти Case IH CX100 (09-56) - SEAT CO-WORKER, EUROPE ONLY (09) - CHASSIS/ATTACHMENTS

Europe Only

1шт.

304057A1

SEAT ASSY.

Consists Of 1 - 32

1шт.

276331A1

SEAT SUPPORT

Includes 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

Bracket, Upper

1шт.

2

NSS

NOT SOLD SEPARAT

Bracket, Retainer

1шт.

3

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

4

800-438

CIRCLIP,M8

1шт.

5

275661A1

SPRING

1шт.

6

906035R1

HEX SOC SCREW,Flat Hd, CSK, M8 x 25mm, Cl 10.9

M8 x 25; 10,9

2шт.

7

224051A4

SEAT SUPPORT

1шт.

8

906036R1

HEX SOC SCREW,Flat Hd, CSK, M8 x 40mm, Cl 10.9

2шт.

9

291387A1

PROTECTOR

1шт.

10

NSS

NOT SOLD SEPARAT

Seat

1шт.

11

224043A5

CUSHION ASSY.

1шт.

12

NSS

NOT SOLD SEPARAT

Bracket

1шт.

13

NSS

NOT SOLD SEPARAT

Bracket

1шт.

14

225043A1

PIN

5шт.

15

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.

16

800-438

CIRCLIP,M8

5шт.

17

303137A1

SEAT SUPPORT

1шт.

18

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

19

614-5008

BOLT,Hex, M5 x 0.8 x 8mm, Cl 8.8, Full Thd

2шт.

244525A3

BACKREST

Consists Of 20 - 26

1шт.

20

NSS

NOT SOLD SEPARAT

Backrest

1шт.

21

NSS

NOT SOLD SEPARAT

Bracket Assy

1шт.

22

242820A1

SPACER

9 x 12 x 5 mm

1шт.

23

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

2шт.

24

300487A1

WAVE WASHER

10,5 x 21 x 1

1шт.

25

300486A1

WASHER

10,5 x 23 x 2

1шт.

26

300485A1

SPACER

1шт.

27

225041A2

PIN

1шт.

28

303138A1

FASTENER

1шт.

29

864-5012

HEX SOC SCREW,M5 x 12mm, Cl 8.8

2шт.

30

322626A1

LARGE PLATE

PLATE, LARGE

1шт.

31

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

32

800-438

CIRCLIP,M8

1шт.
