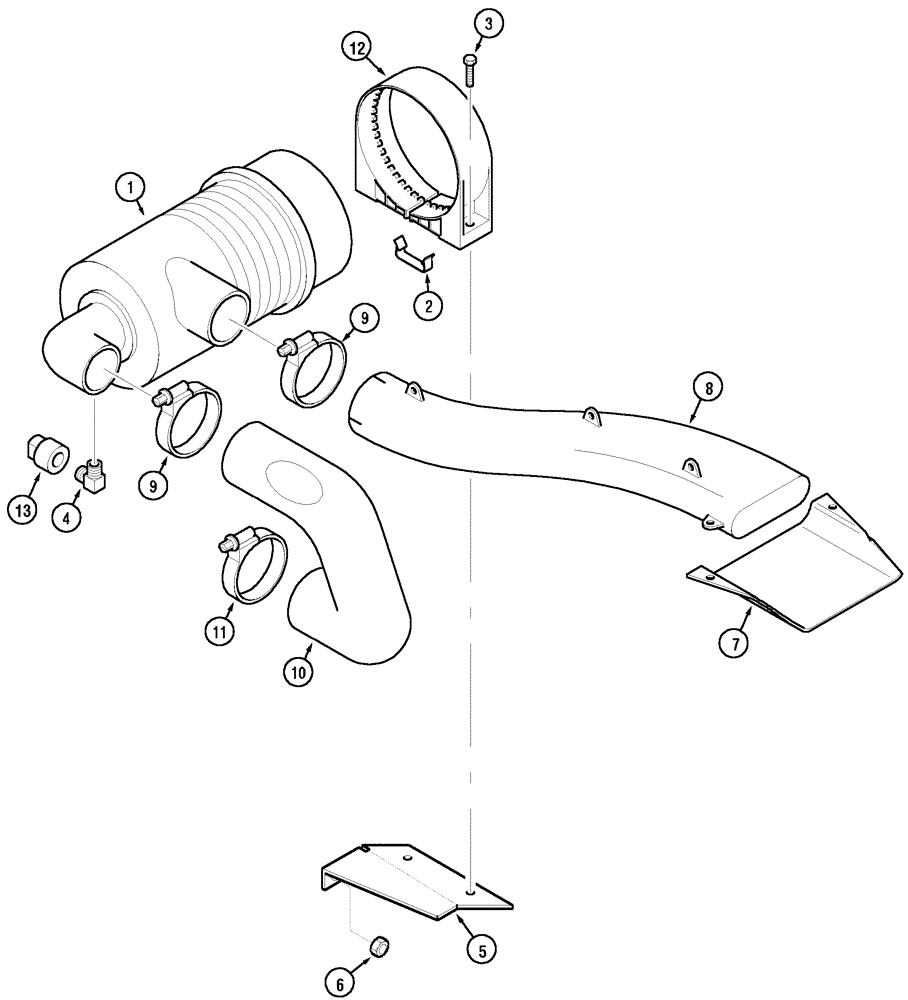

Запчасти Case IH CX100 (02-16) - AIR CLEANER AND CONNECTIONS (02) - ENGINE

Sloping Hood

1шт.

1

138940A4

AIR CLEANER

See Page(s) 2-37

1шт.

2

281083A1

CLIP,ELECTRICAL

2шт.

3

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

9шт.

4

217-1227

ELBOW,90 Degree, 1/8"-27 Male

1шт.

5

380286A2

SUPPORT

1шт.

6

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

7

389298A1

GUARD

Use With, Row Crop

1шт.

8

382459A1

DUCT

Inlet

1шт.

9

214-1460

HOSE CLAMP,#60, 3.31" - 4.25", Type F Worm

2шт.

10

298168A3

INTAKE AIR HOSE,54.00 mm ID, 70.00 mm ID, 91.00 mm ID

1шт.

11

214-1440

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

2-1/16 - 3

1шт.

12

226500A1

SUPPORT

1шт.

13

279492A1

RESTRICTION SWITCH

1шт.
