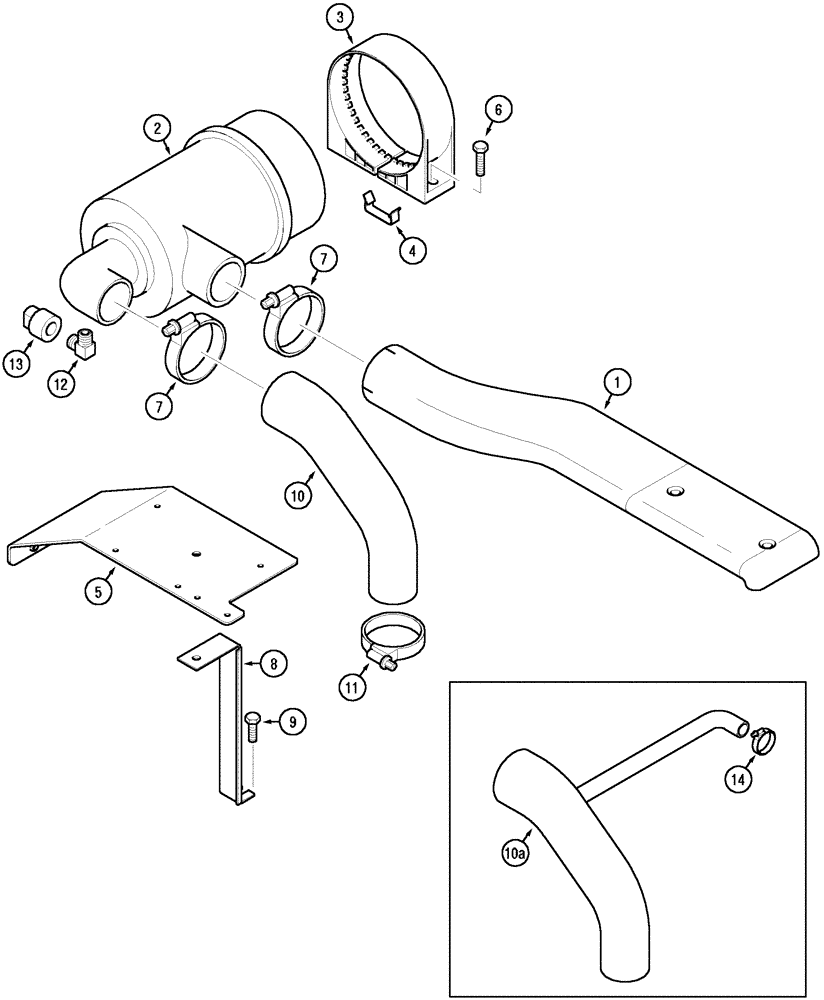

Запчасти Case IH CX100 (02-15) - AIR CLEANER AND CONNECTIONS (02) - ENGINE

Normally Aspirated

1шт.

Tilting Hood

1шт.

1

243182A2

DUCT

1шт.

2

138940A4

AIR CLEANER

See Page(s) 2-37

1шт.

3

226500A1

SUPPORT

1шт.

4

281083A1

CLIP,ELECTRICAL

2шт.

5

304656A1

SUPPORT

1шт.

6

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

9шт.

7

214-1460

HOSE CLAMP,#60, 3.31" - 4.25", Type F Worm

2шт.

8

245180A1

SUPPORT

1шт.

9

864-10016

HEX SOC SCREW,M10 x 16mm, Cl 8.8

1шт.

10

374240A1

INTAKE AIR HOSE,77.00 mm ID x 410.80 mm

1шт.

10b

374241A1

INTAKE AIR HOSE,77.00 mm ID, 89.00 mm ID x 410.80 mm

Version With Air Compressor

1шт.

11

214-1452

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

1шт.

12

217-1227

ELBOW,90 Degree, 1/8"-27 Male

1шт.

13

279492A1

RESTRICTION SWITCH

Restrictor

1шт.

14

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

1шт.
