Запчасти Case IH CX100 (02-14) - AIR CLEANER AND CONNECTIONS (02) - ENGINE

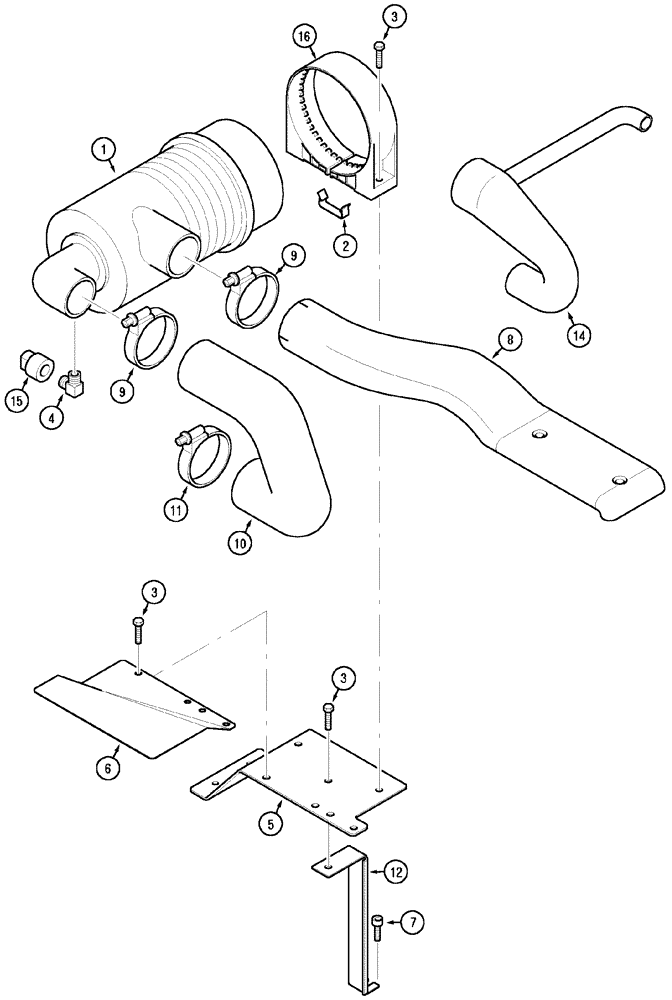

Схема запчастей Case IH CX100 - (02-14) - AIR CLEANER AND CONNECTIONS (02) - ENGINE
6
5
8
4
14
9
15
2
3
7
3
1
10
16
11
3
12
9

Артикул

Название

Примечание

Количество

With Turbocharger

1шт.

Tilting Hood

1шт.

1

138940A4

AIR CLEANER

See Page(s) 2-37

1шт.

2

281083A1

CLIP,ELECTRICAL

2шт.

3

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

9шт.

4

217-1227

ELBOW,90 Degree, 1/8"-27 Male

1шт.

5

243433A2

SUPPORT

1шт.

6

294853A2

PROTECTION PLATE

Turbocharger

1шт.

7

864-10016

HEX SOC SCREW,M10 x 16mm, Cl 8.8

1шт.

8

243182A2

DUCT

1шт.

9

214-1460

HOSE CLAMP,#60, 3.31" - 4.25", Type F Worm

2шт.

10

243435A2

INTAKE AIR HOSE,54.00 mm ID, 89.00 mm ID x 166.00 mm

1шт.

11

214-1440

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

2-1/16 - 3

1шт.

12

245180A1

SUPPORT

1шт.

14

308021A2

LARGE HOSE

HOSE,LARGE , Compressor

1шт.

15

279492A1

RESTRICTION SWITCH

Restrictor

1шт.

16

226500A1

SUPPORT

1шт.

Выбрано товаров: 17
