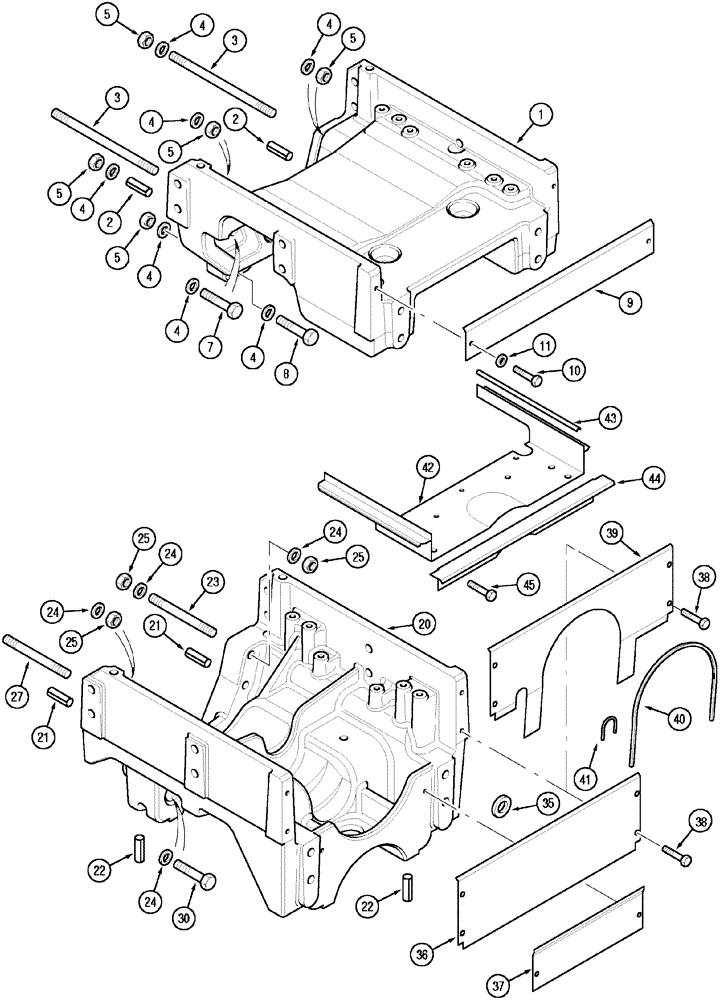

Запчасти Case IH CX100 (09-01) - FRONT BOLSTER (09) - CHASSIS/ATTACHMENTS

2WD

1шт.

1

221561A9

AXLE SUPPORT

Basic

1шт.

1

221560A5

AXLE SUPPORT

Row Crop

1шт.

2

838-42116

LOCK PIN,M21 x 16, Slotted

21 x 16 mm

2шт.

3

246467A1

STUD

2шт.

3

246510A1

STUD,M16 - 2 x 180mm, Class 10.9

M16 x 180, Basic

2шт.

4

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

4

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

Basic

1шт.

5

829-1316

NUT,M16, Cl 10

1шт.

7

828-16080

BOLT,Hex, M16 x 2 x 80mm, Cl 10.9

2шт.

8

828-16140

BOLT,Hex, M16 x 2 x 140mm, Cl 10.9

M16 x 140; 10.9

1шт.

8

828-16150

BOLT,Hex, M16 x 2 x 150mm, Cl 10.9

1шт.

9

275523A1

LARGE PLATE

PLATE, LARGE

1шт.

10

844-8012

BOLT,M8 x 1.25 x 20.1mm, Cl 8.8

2шт.

11

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

4WD

1шт.

20

221562A7

AXLE SUPPORT

1шт.

21

838-42116

LOCK PIN,M21 x 16, Slotted

21 x 16 mm

2шт.

22

838-42136

LOCK PIN,M21 x 36, Slotted

21 x 36 mm

4шт.

23

246510A1

STUD,M16 - 2 x 180mm, Class 10.9

M16 x 180

2шт.

24

896-12016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

1шт.

25

829-1316

NUT,M16, Cl 10

1шт.

27

246467A1

STUD

2шт.

30

828-16150

BOLT,Hex, M16 x 2 x 150mm, Cl 10.9

2шт.

35

3125069R1

SHIM

38 x 17 x 0.05 mm

1шт.

35

3125070R1

SHIM

38 x 17 x 0.12 mm

1шт.

35

3125071R1

SHIM

38 x 17 x 0.25 mm

1шт.

35

3125072R1

SHIM

38 x 17 x 0.50 mm

1шт.

36

275481A1

COVER

1шт.

37

275482A1

COVER

1шт.

38

844-8012

BOLT,M8 x 1.25 x 20.1mm, Cl 8.8

6шт.

39

242587A3

COVER

Front P.T.O.

1шт.

39

319125A1

COVER

With Front Hitch, Not Illustrated

1шт.

40

294067A1

SEAL

410 mm, Order K262759

1шт.

41

294069A1

SEAL

90 mm, Order K262759

1шт.

42

245191A5

GUARD

1шт.

43

275544A1

PROFILE

330 mm (13 in)

2шт.

44

242590A4

LARGE PLATE

PLATE, LARGE

1шт.

45

905-6012

BOLT,Hex Flg, M6 x 12mm

6x12 mm

2шт.

K262759

SEAL, RUBBER

RUBBER SEAL , 1000 mm

1шт.
