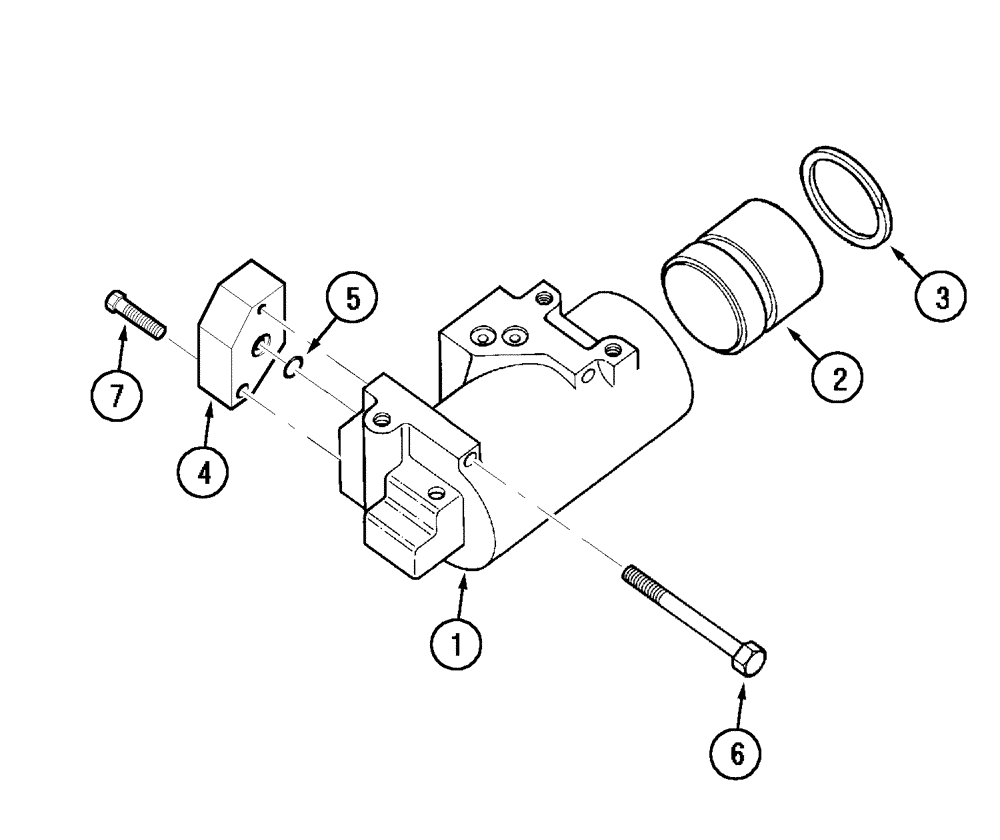

Запчасти Case IH CX100 (08-18) - DRAFT CONTROL (08) - HYDRAULICS

Cylinder

1шт.

303616A1

CYLINDER ASSY.

Consists Of 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

399886R1

PISTON ASSY.,88.87mm Bore, 43.78mm Rod, 71.12mm W

1шт.

3

295075A1

SEAL

1шт.

4

224132A1

MANIFOLD VALVE

1шт.

5

238-6113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

1шт.

6

326-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 8

1шт.

7

326-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

3/8 x 1-3/4; 8

1шт.
