Запчасти Case IH CX100 (08-16) - HITCH VALVE ASSEMBLY (08) - HYDRAULICS

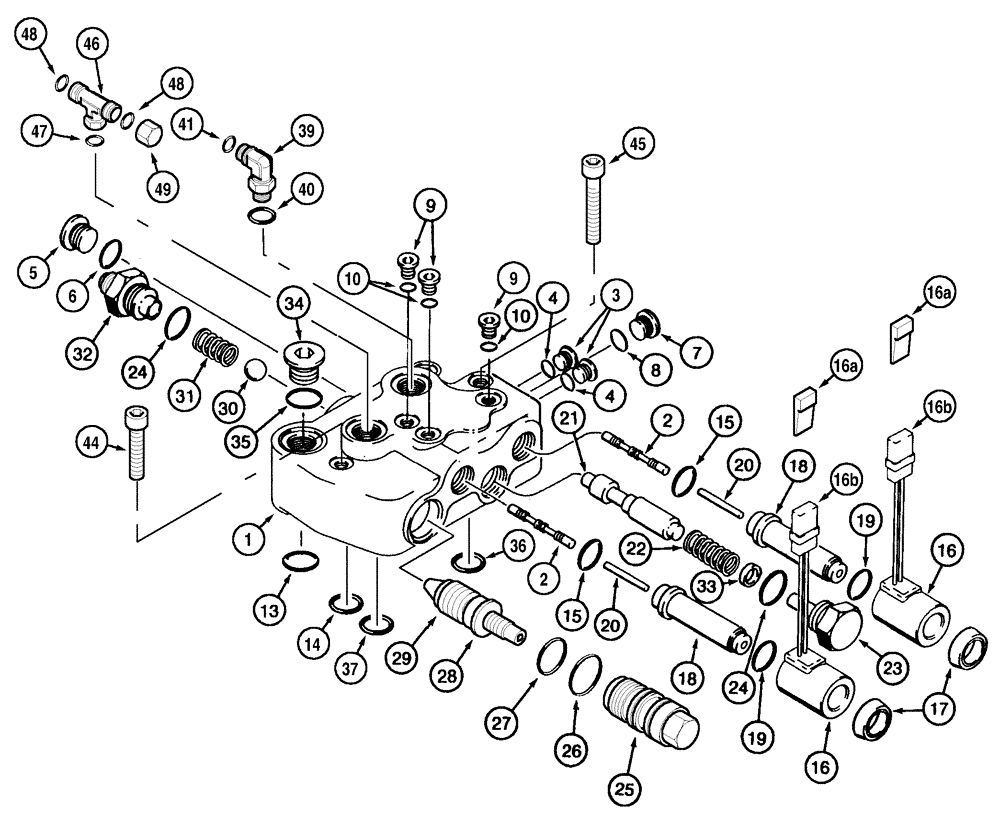

Схема запчастей Case IH CX100 - (08-16) - HITCH VALVE ASSEMBLY (08) - HYDRAULICS
3
16b
20
4
34
36
27
24
15
26
5
44
39
15
1
24
14
47
13
35
16
33
2
16b
6
17
18
48
23
7
49
37
8
16a
25
28
46
45
21
10
19
10
16
9
18
4
20
48
19
32
29
16a
2
41
30
31
40
22
9

Артикул

Название

Примечание

Количество

223026A1

VALVE

Consists Of 1 - 37

1шт.

1

NSS

NOT SOLD SEPARAT

Body, Valve

1шт.

2

188104A1

SPOOL

2шт.

3

86529630

PLUG,Hex Soc, 3/8"-24 ORB

Includes 4

2шт.

4

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

1шт.

5

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Incl Ref 6

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

7

9625178

PLUG,9/16" - 18 ORB

Incl. 8

1шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

9

278548

PLUG,Hex, 7/16"-20 ORB

Incl 10

3шт.

10

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

13

238-6125

O-RING,0.103" Thk x 1.299" ID, -125, Cl 6, 90 Duro

1-5/16 ID x 3/32

1шт.

14

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

2шт.

15

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

2шт.

243254A1

KIT

Consists Of 16,16A,16B

2шт.

16

188105A1

SOLENOID

1шт.

16b

225318C1

ELEC CONNECTOR,2 Pin

W2P

1шт.

16c

225315C1

ELEC CONNECTOR,Male, 2 Pin

DT104-2P

1шт.

17

188106A1

NUT

2шт.

18

188117A1

CARTRIDGE,72.25mm OAL

2шт.

19

238-5017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

2шт.

20

188116A1

PIN,3.25mm OD x 39.93mm L

2шт.

21

NSS

NOT SOLD SEPARAT

Spool

1шт.

22

NSS

NOT SOLD SEPARAT

Spring

1шт.

23

188110A1

PLUG

1шт.

24

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

308922A1

PACKAGE,SERVICE

Meter, Consists Of 25 - 29

1шт.

25

188111A1

PLUG,1-1/16" - 18

1шт.

26

238-5023

O-RING,0.07" Thk x 1.051" ID, -23, Cl 5, 75 Duro

1шт.

27

238-5022

O-RING,0.07" Thk x 0.99" ID, -22, Cl 5, 75 Duro

1шт.

28

308925A1

VALVE

1шт.

29

NSS

NOT SOLD SEPARAT

Poppet, Valve

1шт.

30

511-10200

BALL,20mm Dia

1шт.

31

188114A1

SPRING

1шт.

32

308924A1

FITTING

1шт.

33

NSS

NOT SOLD SEPARAT

Spacer

1шт.

34

9841223

PLUG,1-1/16" - 12 ORB

Incl. 35

1шт.

35

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

36

238-6111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 6, 90 Duro

1шт.

37

238-6112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

7/8 ID x 1/8

1шт.

39

700-306

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. 40, 41

2шт.

40

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

41

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

45

814-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

1шт.

46

700-403

TEE,1" - 14 Male ORFS x 1" - 14 Male ORFS x M22 x 1.5 Male ORB

Includes 47,48

1шт.

47

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

48

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

49

701-906

CAP,1" - 14

16 mm

1шт.

243253A1

SEAL KIT

Consists Of 4,6,8,10,13,14,15,19,24,26,27,35,36,37

1шт.
