Запчасти Case IH CX100 (08-09) - AUXILIARY VALVES, PIPES AND COUPLINGS (08) - HYDRAULICS

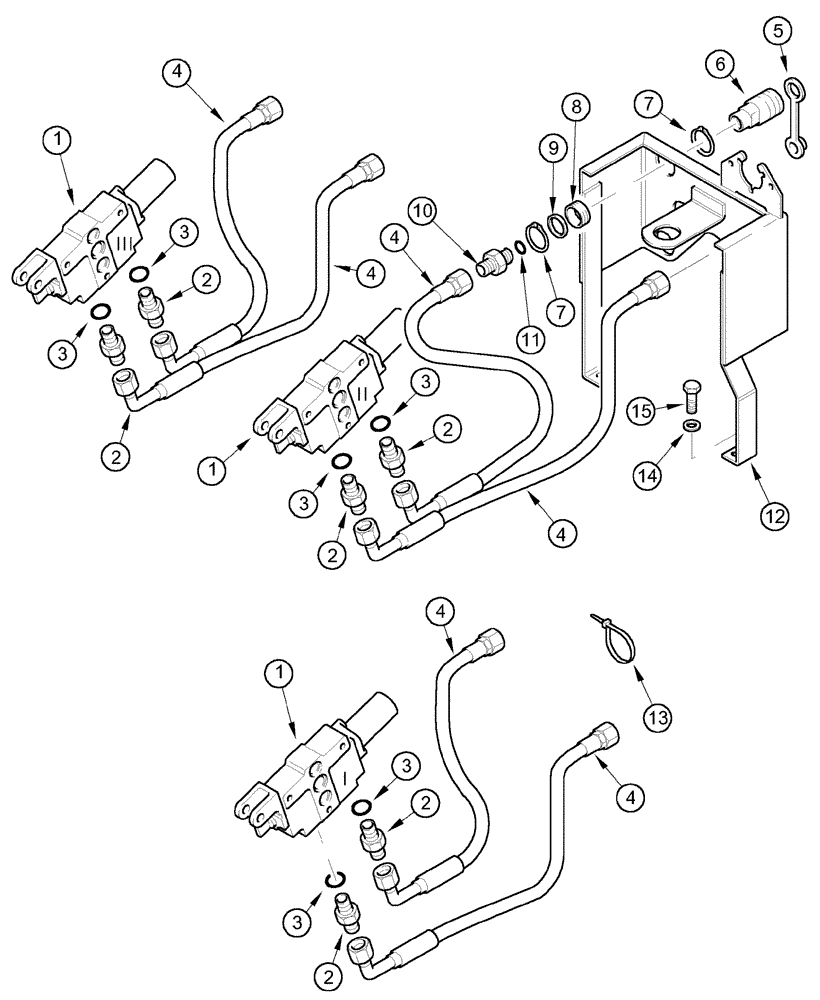

Схема запчастей Case IH CX100 - (08-09) - AUXILIARY VALVES, PIPES AND COUPLINGS (08) - HYDRAULICS
4
4
2
3
2
4
3
7
3
10
14
12
2
8
9
15
4
4
11
3
5
1
2
2
3
13
6
1
7
4
3
1
2

Артикул

Название

Примечание

Количество

1

1287379C91

VALVE

Double Acting W/O Check Valves

1шт.

1

1287384C91

VALVE

Double Acting With 1 Check Valve

1шт.

2

86165C1

FITTING

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

233961A1

HOSE ASSY.

6шт.

5

K950297

PLUG

1шт.

6

A177478

COUPLING, QUICK, FEM

1шт.

6

370506A1

COUPLING, BREAK AWAY

If So Equipped

1шт.

7

104-11150

SNAP RING,#150, 1.408", Ext

1шт.

8

A139805

RETAINER

1шт.

9

178400A1

SPACER

1шт.

10

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x Or

1шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

12

245253A5

SUPPORT

1шт.

13

306132C1

CABLE TIE,14.5" L

CABLE STRAP , 14 in

1шт.

14

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

2шт.

15

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1/2 x 1-3/4; 5

2шт.

Выбрано товаров: 17
