Запчасти Case IH CX100 (08-04) - HYDRAULIC CIRCUIT (08) - HYDRAULICS

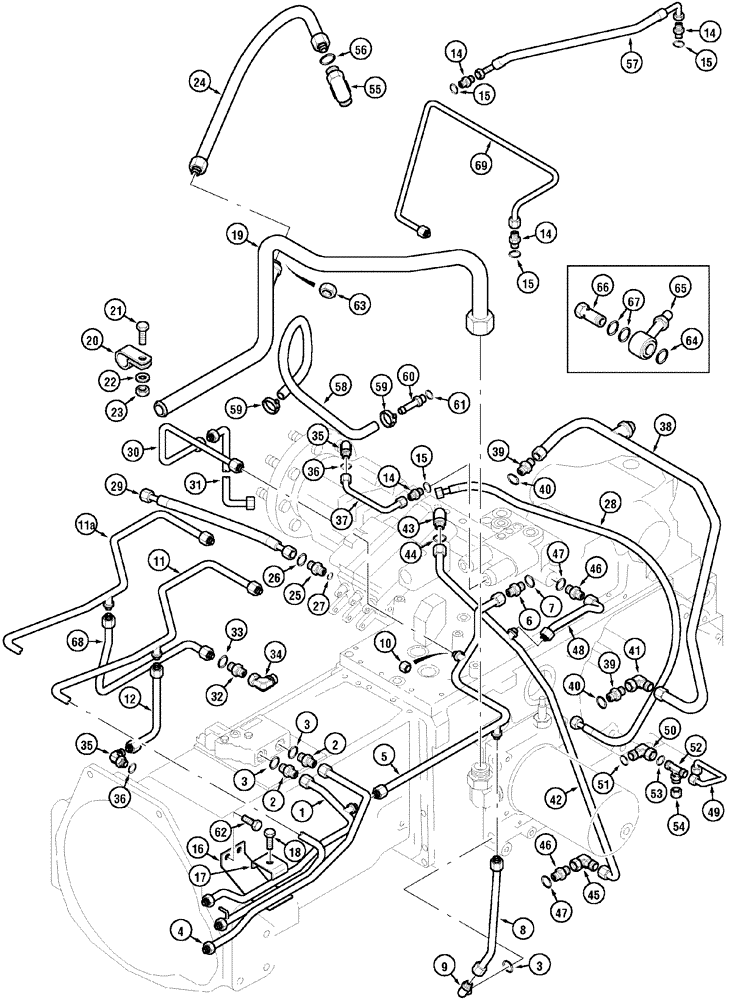

Схема запчастей Case IH CX100 - (08-04) - HYDRAULIC CIRCUIT (08) - HYDRAULICS
37
54
49
40
41
51
35
36
61
67
22
9
19
14
15
45
38
65
62
46
58
15
15
35
33
60
55
39
15
56
3
12
44
50
52
46
14
63
1
3
14
2
64
47
16
7
28
43
8
5
32
26
3
68
21
4
17
59
31
27
39
11a
66
53
24
47
59
40
11
14
6
20
36
25
10
2
23
34
42
18
48
29
69
30
57

Артикул

Название

Примечание

Количество

1

242241A2

HYD TUBE,.5" OD, 450, 168 mm Length

1шт.

2

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Includes 3

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

242243A4

HYD TUBE,.5" OD, 575, 217 mm Length

Supply

1шт.

5

328387A1

HYD TUBE

Differential

1шт.

6

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

3/4 fl x 9/16 Or, Includes 7

1шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

8

242242A3

HYD TUBE,.5" OD, 324.14, 40.71 mm Length

P.T.O.

1шт.

9

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Includes 3

1шт.

10

218-753

CAP,37 Degree, 1/2"-20

2WD

1шт.

11

244880A6

HYD TUBE,0.5" OD, 1002, 421.42 mm Length

Return

1шт.

11b

315890A1

HYD TUBE

Return, With Creep Speed

1шт.

12

246610A3

HYD TUBE,3" OD, 221.7, 124.3 mm Length

Lubrication

1шт.

13

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

Not Illustrated

1шт.

14

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 15

2шт.

15

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

16

240704A2

SUPPORT ASSY.

1шт.

17

240661A1

FIXING BRACKET

1шт.

18

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

1шт.

19

242236A6

PIPE,1.25" OD, 522, 218 mm Length

Control Valve

1шт.

20

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

1шт.

21

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

22

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

1шт.

23

425-106

NUT,3/8"-16, Cl 5

1шт.

24

278418A1

HOSE ASSY.

815 mm

1шт.

25

201-100

HYD CONNECTOR,9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

9/16 fc x 7/16 Or, Includes 26, 27

2шт.

26

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

27

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

28

258505A1

HYDRAULIC HOSE

1150 mm, Left, Brake

1шт.

29

231031A2

HOSE

510 mm, Right, Brake

1шт.

30

318793A2

HYD TUBE

4WD

1шт.

31

318794A1

PIPE,0.3125" OD, 473.62, 163.32 mm Length

4WD

1шт.

32

123627A1

FITTING

4WD

1шт.

33

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

4WD

1шт.

34

218-5229

ELBOW,90 Degree, 1/2"-20, 37 Degree x 1/2"-20, 37 Degree Fem Sw

1/2 fl x sw, 4WD

1шт.

35

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes 36

2шт.

36

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

37

225044A1

PIPE

1шт.

38

336233A1

PIPE

1шт.

39

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

Includes 40

2шт.

40

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

41

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

42

224137A2

PIPE

Draft Control, Without Trailer Brake

1шт.

42

248275A2

HYD TUBE

Draft Control, With Trailer Brake, See Page(s) 7-13

1шт.

43

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

7/8 fl x adj Or, Incl. 44

1шт.

44

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

45

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

46

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x Or, Includes 47

1шт.

47

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

48

224140A2

PIPE

Unloading

1шт.

49

258506A1

HYD TUBE,0.25" OD, 79.3, 69.1 mm Length

P.T.O.

1шт.

50

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

7/16 fl x adj Or, Includes 51

1шт.

51

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

52

218-5180

TEE,7/16" - 20 Male JIC x 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

1/4 in, Includes 53

1шт.

53

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

54

218-752

CAP,37 Degree, 7/16"-20

1шт.

55

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

1-1/16 fl x 7/8 Or, Includes 56

1шт.

56

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

57

226915A1

HOSE

600 mm, Diff Lock

1шт.

58

224156A1

LARGE HOSE,9.52 mm ID x 650.00 mm, SAE 100R6 Class 3

HOSE,LARGE

1шт.

59

214-1506

HOSE CLAMP,11.18mm - 19.81mm

2шт.

60

217-387

FITTING,3/8" Hose Barb x 9/16" - 18 Male ORB

3/8 stem x 9/16 Or

1шт.

61

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

62

463-33812

SCREW,Hex Wash Hd, 3/8"-16 x 3/4"

3/8 x 3/4 in

2шт.

63

218-335

CAP,37 Degree, 1 1/16"-12

Without Auxiliary Valves

1шт.

65

313810A1

PIPE,88.9 mm Length

Without Auxiliary Valves

1шт.

66

66766C1

PLUG

Without Auxiliary Valves

1шт.

67

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Without Auxiliary Valves

2шт.

68

315891A1

HYD TUBE

With Creep Speed

1шт.

69

318539A1

HYD TUBE,0.375" OD, 350, 120 mm Length

With Creep Speed

1шт.

64

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Without Auxiliary Valves

1шт.

Выбрано товаров: 71
