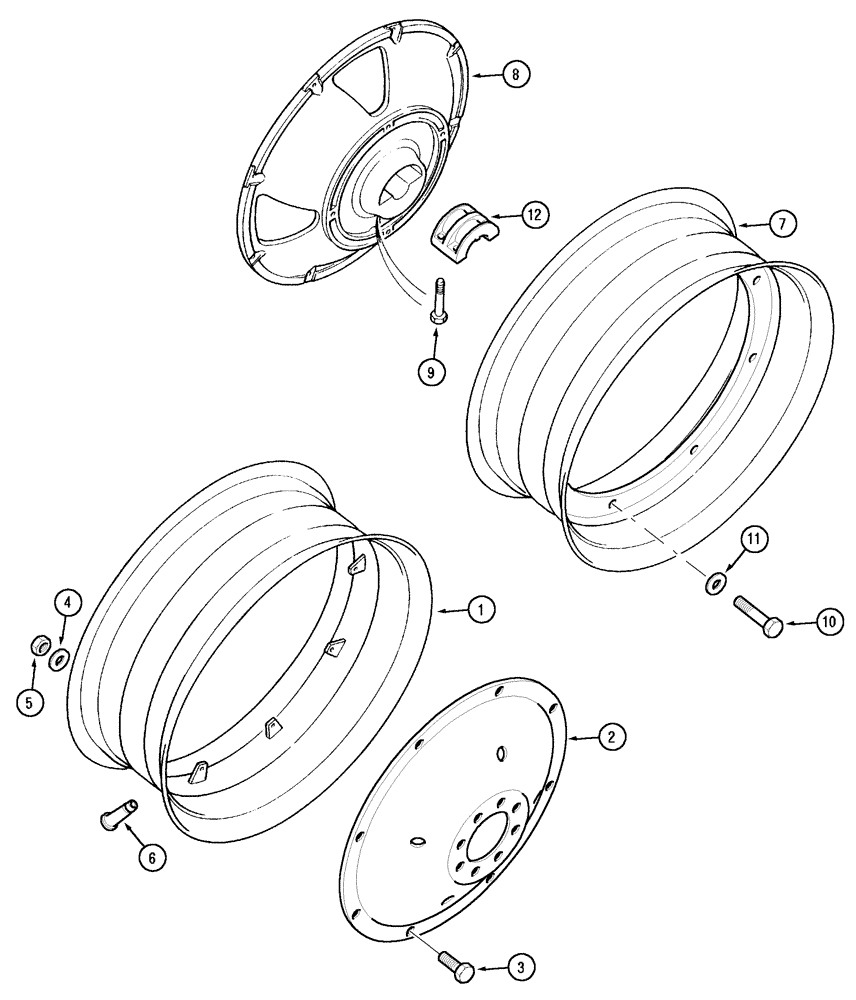

Запчасти Case IH CX100 (06-44) - REAR WHEELS - ADJUSTABLE (06) - POWER TRAIN

N.A. Only

1шт.

Wheels 42 inch

1шт.

1

177503A1

RIM

WHEEL , For Tires 12.4 x 42

2шт.

2

1985680C2

DISC, WHEEL

2шт.

3

614-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 8.8, Full Thd

16шт.

4

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

16шт.

5

829-1416

NUT,M16, Cl 10

16шт.

6

A20058

VALVE STEM

Wheels 42 inch

2шт.

7

1343119C1

RIM

WHEEL , For Tires 14.9 x 46

2шт.

8

388336R1

DISC

2шт.

9

375463R2

BOLT,Spcl, Hex, 7/8" - 14 x 4 3/4"

8шт.

10

381727R2

WHEEL BOLT,Sq Hd, 5/8" - 18 x 2 3/4"

16шт.

11

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

16шт.

12

1961091C1

CLAMP

2шт.
