Запчасти Case IH CX100 (02-09) - AIR CONDITIONER, COMPRESSOR AND CONDENSER (02) - ENGINE

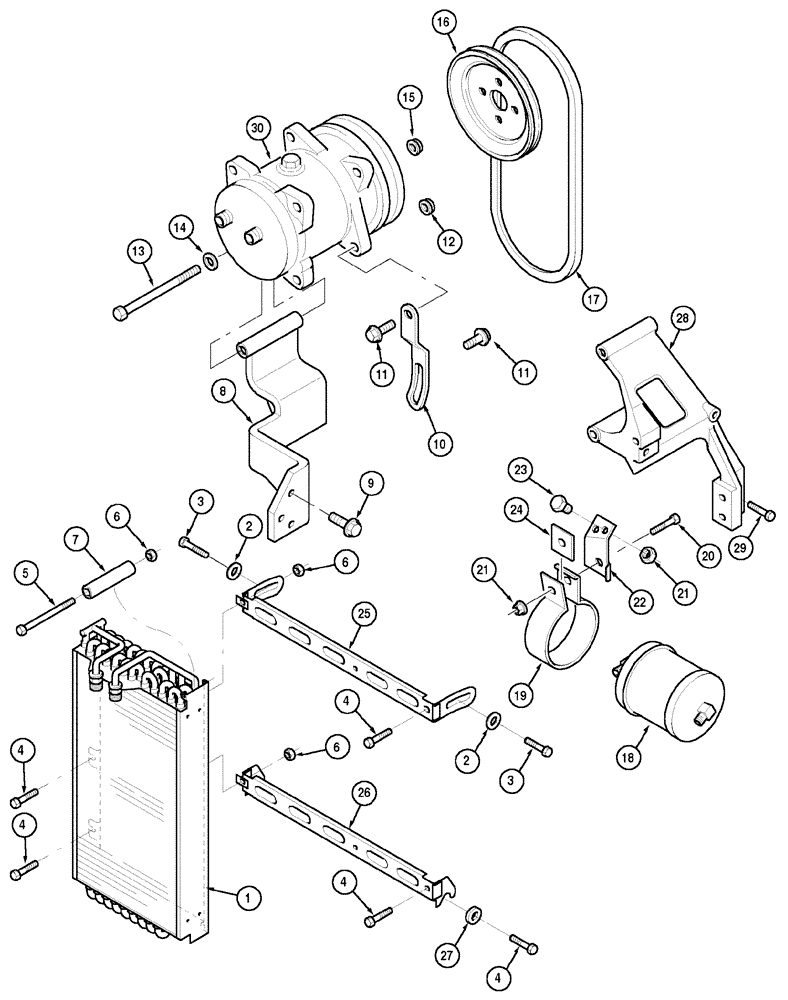

Схема запчастей Case IH CX100 - (02-09) - AIR CONDITIONER, COMPRESSOR AND CONDENSER (02) - ENGINE
26
7
4
30
20
18
21
1
8
25
11
6
3
22
13
17
14
4
10
29
6
4
5
12
6
9
24
27
23
4
3
15
28
11
2
16
4
21
19
2

Артикул

Название

Примечание

Количество

1

222893A5

CONDENSER

1шт.

3

906044R1

THUMB SCREW,M8 x 16mm

2шт.

4

844-8012

BOLT,M8 x 1.25 x 20.1mm, Cl 8.8

1шт.

5

844-8065

BOLT,Hvy Hex, M8 x 65mm, Cl 8.8

M8 x 65;8,8

1шт.

6

282164A1

NUT

1шт.

7

300396A1

SPACER

1шт.

8

228385A4

SUPPORT

Fixed Hood

1шт.

9

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

3шт.

10

228391A2

SUPPORT

1шт.

10

246188A1

TENSIONER

Tilting Hood

1шт.

11

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

2шт.

12

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

1шт.

13

814-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 8.8

1шт.

14

3120737R1

WASHER,10.8mm ID x 25mm OD x 5mm Thk

1шт.

15

825-1410

NUT,M10, Cl 8

1шт.

16

A189155

PULLEY

1шт.

17

228332A2

BELT,12.70 mm W x 925.00 mm L

1шт.

17

248265A2

BELT,12.70 mm W x 975.00 mm L

Tilting Hood

1шт.

18

1990758C2

RECEIVER-DRYER

1шт.

19

T102980

CLAMP

1шт.

20

844-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

1шт.

21

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

3шт.

22

229185A3

SUPPORT

1шт.

23

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

24

T103390

WASHER

1шт.

25

300460A1

SUPPORT

Upper

1шт.

26

300461A1

SUPPORT

Lower

1шт.

27

300395A1

BUSHING

2шт.

28

309695A2

SUPPORT

Tilting Hood

1шт.

29

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

4шт.

30

1999755C2

COMPRESSOR

See Page(s) 2-25

1шт.

30

86993462R

REMAN-COMPRESSOR

CX70, CX80, CX90, CX100 all CX-SERIES (1/98-); Reman For New P/N 1999755C2

1шт.

30

86993462C

CORE-COMPRESSOR

Return Part Number

1шт.

30

1999755C3R

REMAN-A/C COMPRESSOR

Inc.- 8 Mounting Holes, 2 Groove Pulley, For Use w/HFC134A Refrigerant

1шт.

30

1999755C3C

CORE-COMPRESSOR

Return Part Number

1шт.

30

48017123R

REMAN-A/C COMP KIT

Reman Kit -- A/C Compressor, Receiver-Dryer, Valve

1шт.

30

48017123C

REMAN-A/C COMP KIT

Return Part Number

1шт.

2

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

Выбрано товаров: 38
