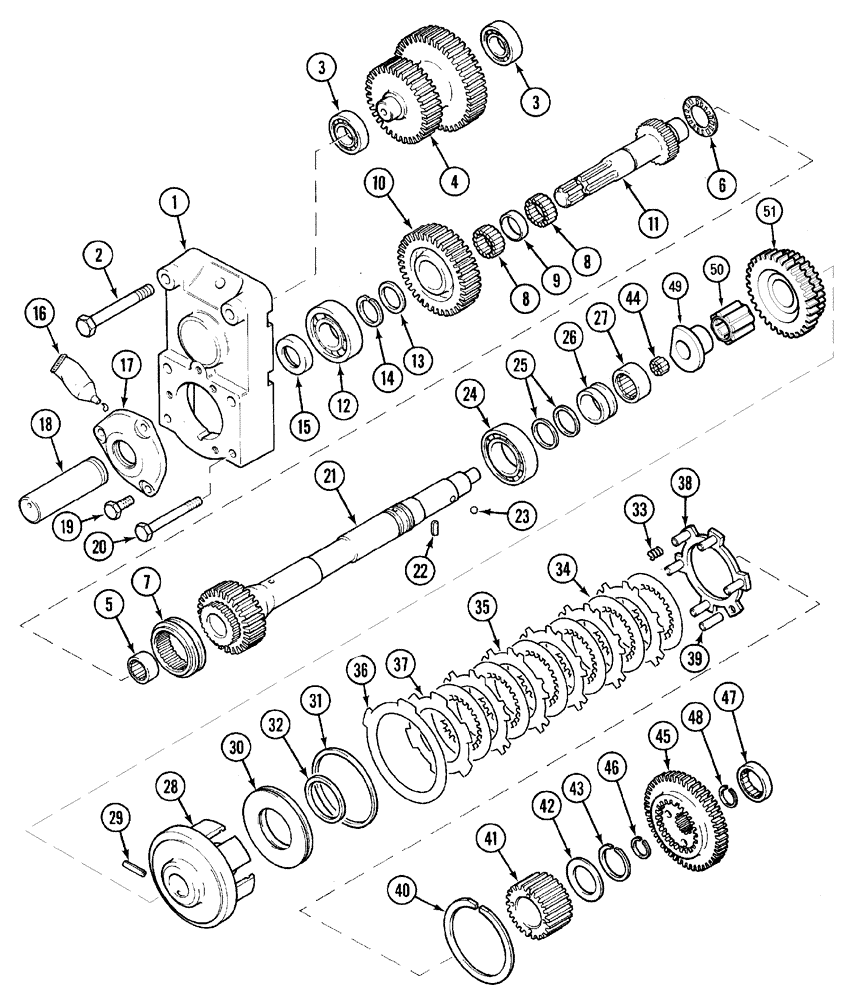

Запчасти Case IH CX100 (06-33) - SHIFTABLE P.T.O. (06) - POWER TRAIN

1

111437A1

COVER

1шт.

2

326-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 8

4шт.

3

116753A1

BEARING, ROLLER,29.99mm ID x 62mm OD x 16mm W

2шт.

4

123019A1

PINION

540/1000 rpm

1шт.

4

123020A1

PINION

540/750 rpm

1шт.

5

3106212R91

BEARING ASSY,1.25" ID x 1.6264" OD x 1"

1шт.

6

116755A1

THRUST BEARING,40.05mm ID x 59.86mm OD x 3mm W

1шт.

7

112684A2

SYNCHRO RING

1шт.

8

A175487

NEEDLE BEARING,39.99mm ID x 45.02mm OD x 16.8mm W

2шт.

9

117092A1

SPACER

1шт.

10

111989A1

PINION

34T

1шт.

11

111990A1

SHAFT

1шт.

12

132101A1

BEARING, ROLLER,40 mm ID x 90 mm OD x 23 mm

1шт.

13

1500085C1

WASHER

1шт.

14

100-16156

SNAP RING,#156, Ext

1шт.

15

385766R91

OIL SEAL,38.1mm ID x 60.45mm OD x 8.13mm Thk

1шт.

16

B17501

LOCTITE

6 ml

1шт.

17

182816A1

FLANGE

1шт.

18

181366A1

TUBE

1шт.

19

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3шт.

20

326-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 8

2шт.

21

132827A2

SHAFT

540/1000 rpm. 24T

1шт.

21

132828A2

SHAFT

540/750 rpm. 29T, Includes 22,23

1шт.

22

838-5410

LOCK PIN,M4 x 10, Slotted

4 x 10 mm

1шт.

23

211-1008

BALL,1/4" Dia

24, CRS

1шт.

24

116754A1

BEARING, ROLLER,49.99mm ID x 90mm OD x 20mm W

1шт.

25

88574C1

SEAL,35.92mm ID x 40.12mm OD x 2.9mm Thk

2шт.

26

93506C1

BUSHING

1шт.

27

93501C91

NEEDLE BEARING,37.03mm ID x 51.99mm OD x 21.94mm W

1шт.

28

82609C2

CLUTCH HOUSING

1шт.

29

38-32032

PIN,7.92mm OD x 50.8mm L

8 x 2 mm

1шт.

30

401722R1

PISTON

1шт.

66193C91

PACKAGE

CX70, Consists Of 31 - 35

1шт.

3125257R91

PACKAGE

CX80, CX90, CX100, Consists Of 31,32,33,34A,35A

1шт.

31

401724R1

SEAL,0.551" ID x 0.07" Width

1шт.

32

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

1шт.

33

66182C1

SPRING

6шт.

34

401716R3

DISC

CX70

5шт.

34b

3125322R2

DISC

CX80, CX90, CX100

6шт.

35

66188C1

DRIVEN PLATE

CX70

8шт.

35b

3125147R1

DRIVEN PLATE

CX80, CX90, CX100

5шт.

36

82349C3

RING

1шт.

37

66185C1

CLUTCH PLATE,98.55mm ID x 157.48mm OD x 3.05mm Thk

1шт.

38

66186C92

PLATE ASSY.

Includes 39

1шт.

39

38-32016

PIN,5/16" x 1", Coiled

5/16" x 1", Coiled

6шт.

40

401720R1

CIRCLIP

1шт.

41

66183C2

HUB ASSY.,45T

1шт.

42

401713R1

THRUST WASHER,52.48mm ID x 70.1mm OD x 1.82mm Thk

1шт.

43

101-11206

SNAP RING,#206, 1.936", Ext

1шт.

44

82351C91

NEEDLE BEARING

1шт.

45

REF

INSTRUCTION

Gear, See Figure 06-11, ref 16

1шт.

46

533266R1

RING, SNAP

RING SNAP , 0.98 in

1шт.

47

362251R91

BEARING, NEEDLE,Needle, 47.62mm ID x 57.15mm OD x 12.57mm W

1шт.

48

101-11118

SNAP RING,#118, 1.121", Ext

1шт.

49

82499C2

BUSHING

4WD

1шт.

50

82667C91

NEEDLE BEARING,44.99mm ID x 59.01mm OD x 31.63mm W

4WD

1шт.

51

82666C3

PINION

4WD

1шт.
