Запчасти Case IH CX100 (06-32) - INDEPENDENT POWER TAKE OFF (06) - POWER TRAIN

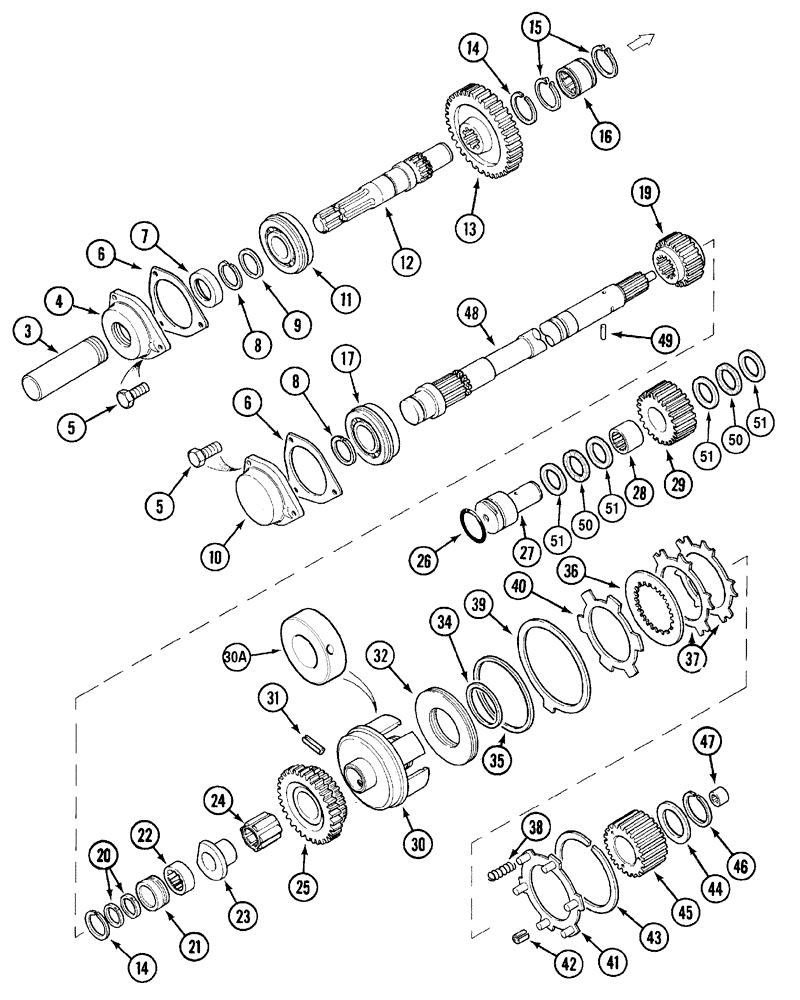

Схема запчастей Case IH CX100 - (06-32) - INDEPENDENT POWER TAKE OFF (06) - POWER TRAIN
10
13
14
26
25
37
51
15
40
3
5
21
6
30a
46
47
44
16
51
17
49
9
23
48
34
43
38
32
42
14
24
20
12
22
11
27
39
6
50
7
30
29
8
51
4
41
8
36
50
45
5
19
28
51
31
35

Артикул

Название

Примечание

Количество

3

1537007C1

TUBE

1шт.

4

1500086C1

FLANGED BEARING

1шт.

5

326-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 8

6шт.

6

1970891C1

GASKET

2шт.

7

385766R91

OIL SEAL,38.1mm ID x 60.45mm OD x 8.13mm Thk

1шт.

8

100-16156

SNAP RING,#156, Ext

2шт.

9

1500085C1

WASHER

1шт.

10

66191C1

FLANGED BEARING

Single Speed

1шт.

11

1537147C1

BALL BEARING,39.99mm ID x 89.99mm OD x 22.94mm W

1шт.

12

1500087C1

SHAFT

1шт.

13

1342557C2

PINION

38T

1шт.

14

101-11175

SNAP RING,#175, 1.640", Ext

No. 175

2шт.

15

100-11206

SNAP RING,#206, Ext

2шт.

16

1500088C91

NEEDLE BEARING,Needle, 38.14mm ID x 52.39mm OD x 35.56mm W

1шт.

17

132102A1

BEARING, ROLLER,40 mm ID x 90 mm OD x 23 mm

1шт.

19

1342558C2

PINION

21T

1шт.

20

88574C1

SEAL,35.92mm ID x 40.12mm OD x 2.9mm Thk

2шт.

21

93506C1

BUSHING

1шт.

22

93501C91

NEEDLE BEARING,37.03mm ID x 51.99mm OD x 21.94mm W

1шт.

23

82499C2

BUSHING

4WD

1шт.

24

82667C91

NEEDLE BEARING,44.99mm ID x 59.01mm OD x 31.63mm W

4WD

1шт.

25

82666C3

PINION

4WD

1шт.

26

238-5137

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

1шт.

27

256836A1

SHAFT

1шт.

28

A31213

NEEDLE BEARING,Needle, 34.91mm ID x 41.27mm OD x 31.75mm W

1шт.

29

401727R1

PINION

24T

1шт.

30

82609C2

CLUTCH HOUSING

1шт.

30b

240471A1

COLLAR

4WD

1шт.

31

38-32032

PIN,7.92mm OD x 50.8mm L

8 x 2 mm

1шт.

32

401722R1

PISTON

1шт.

66193C91

PACKAGE

CX70, Consists Of 34 - 38

1шт.

3125257R91

PACKAGE

CX80, CX90, CX100, Consists Of 34,35,36A,36B,37A,37B,38

1шт.

34

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

Inner

1шт.

35

401724R1

SEAL,0.551" ID x 0.07" Width

Outer

1шт.

36

401716R3

DISC

CX70

5шт.

36b

3125322R2

DISC

CX80, CX90, CX100

6шт.

37

66188C1

DRIVEN PLATE

CX70

8шт.

37b

3125147R1

DRIVEN PLATE

CX80, CX90, CX100

5шт.

38

66182C1

SPRING

6шт.

39

82349C3

RING

1шт.

40

66185C1

CLUTCH PLATE,98.55mm ID x 157.48mm OD x 3.05mm Thk

1шт.

41

66186C92

PLATE ASSY.

Includes 42

1шт.

42

38-32016

PIN,5/16" x 1", Coiled

5/16" x 1", Coiled

6шт.

43

401720R1

CIRCLIP

1шт.

44

401713R1

THRUST WASHER,52.48mm ID x 70.1mm OD x 1.82mm Thk

1шт.

45

66183C2

HUB ASSY.,45T

1шт.

46

101-11206

SNAP RING,#206, 1.936", Ext

1шт.

47

82351C91

NEEDLE BEARING

1шт.

48

99463C2

SHAFT

Single Speed, Includes 49

1шт.

48

99462C2

SHAFT

21 Splines, Dual Speed, Includes 49

1шт.

48

99466C2

SHAFT

6 Splines, Dual Speed, Includes 49

1шт.

49

838-5410

LOCK PIN,M4 x 10, Slotted

4 x 10 mm

1шт.

50

607146R91

THRUST BEARING,35.04mm ID x 51.99mm OD x 1.98mm W

2шт.

51

1327731C1

THRUST WASHER

1-13/32 x 2-1/4 x 1/8

4шт.

Выбрано товаров: 54
