Запчасти Case IH CX100 (06-26) - DIFFERENTIAL LOCK (06) - POWER TRAIN

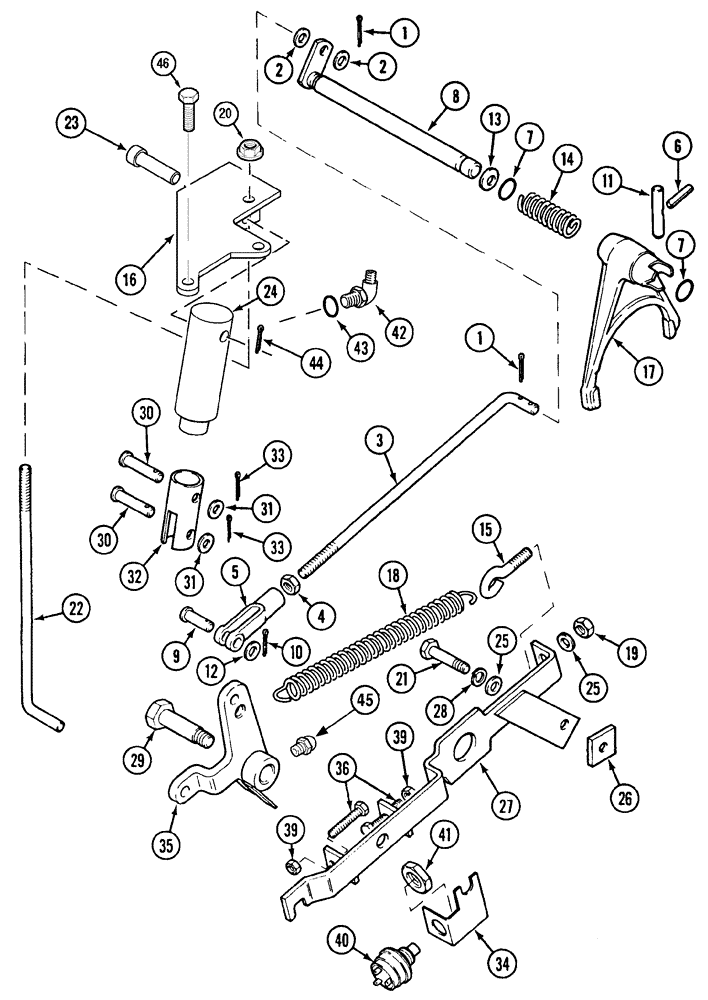

Схема запчастей Case IH CX100 - (06-26) - DIFFERENTIAL LOCK (06) - POWER TRAIN
34
25
14
5
44
7
18
41
13
30
42
31
45
40
32
33
24
10
30
2
3
43
4
21
26
25
1
35
36
20
19
27
22
15
29
7
17
16
33
28
8
9
6
39
31
39
23
46
12
11
1
2

Артикул

Название

Примечание

Количество

Manual Control

1шт.

1

32-812

COTTER PIN,1/8" x 3/4"

2шт.

2

495-51041

WASHER,3/8"

13/32 x 47/64 x 1/16

2шт.

3

123677A2

STEM

Includes 4,5

1шт.

4

425-146

JAM NUT,3/8" - 16, Gr 5

1шт.

5

753984R1

CLEVIS,3/8" - 16

1шт.

6

38-2810

PIN,1/8" x 5/8", Coiled

1/8" x 5/8", Coiled

1шт.

7

238-5113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

2шт.

8

128874A1

SHAFT ASSY.

1шт.

9

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

1шт.

10

432-612

COTTER PIN,3/32" x 3/4"

1шт.

11

1500388C2

PIN

1шт.

12

495-51041

WASHER,3/8"

13/32 x 47/64 x 1/16

1шт.

13

495-81020

WASHER,17/32" x 1" x .030"

17/32 x 1 x 1/32

1шт.

13

95-81056

WASHER,0.78" ID x 1.25" OD x 0.06" Thk

25/32 x 1-1/4 x 1/16

1шт.

14

527878R1

SPRING

1шт.

15

123976A1

BOLT,3/8" - 16 x 50mm

BOLT, EYE

1шт.

16

136751A1

SUPPORT

1шт.

17

1500386C1

FORK

1шт.

18

3121849R2

SPRING

1шт.

19

425-106

NUT,3/8"-16, Cl 5

3шт.

20

231-1446

NUT,3/8" - 16, Gr 5

2шт.

21

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

22

131783A4

STEM

248 mm

1шт.

23

27-8276

CLEVIS PIN,1/2" x 2.766"

1/2x71 mm

1шт.

24

139245A1

CYLINDER ASSY.

Cascade, Includes 24A,24B

1шт.

24b

196526A1

PISTON ROD

Cascade

1шт.

24c

196527A1

SEAL KIT

Cascade

1шт.

25

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

1шт.

36

814-6040

BOLT,Hex, M6 x 1 x 40mm, Cl 8.8

2шт.

26

1330751C1

SPACER

1шт.

27

113934A4

SUPPORT

1шт.

28

492-11038

LOCK WASHER,3/8"

1шт.

29

1500071C1

BOLT,Pivot, Hex, 9/16" - 12 x 57.50mm

1шт.

30

729-1045

CLEVIS PIN,M10x 45

10x45 mm

2шт.

32

117234A1

CLEVIS

1шт.

33

733-3220

COTTER PIN,M3.2 x 20

2шт.

34

277404A1

SUPPORT

1шт.

35

113932A4

LEVER ASSY.

1шт.

39

829-1406

NUT,Hex, M6 x 1, Cl 10.9

1шт.

40

231262A1

SWITCH

1шт.

41

1332725C1

NUT

M18

1шт.

42

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes 43

1шт.

44

32-418

COTTER PIN,1/16" x 1 1/8"

1шт.

45

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

46

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

31

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

2шт.

43

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Выбрано товаров: 48
