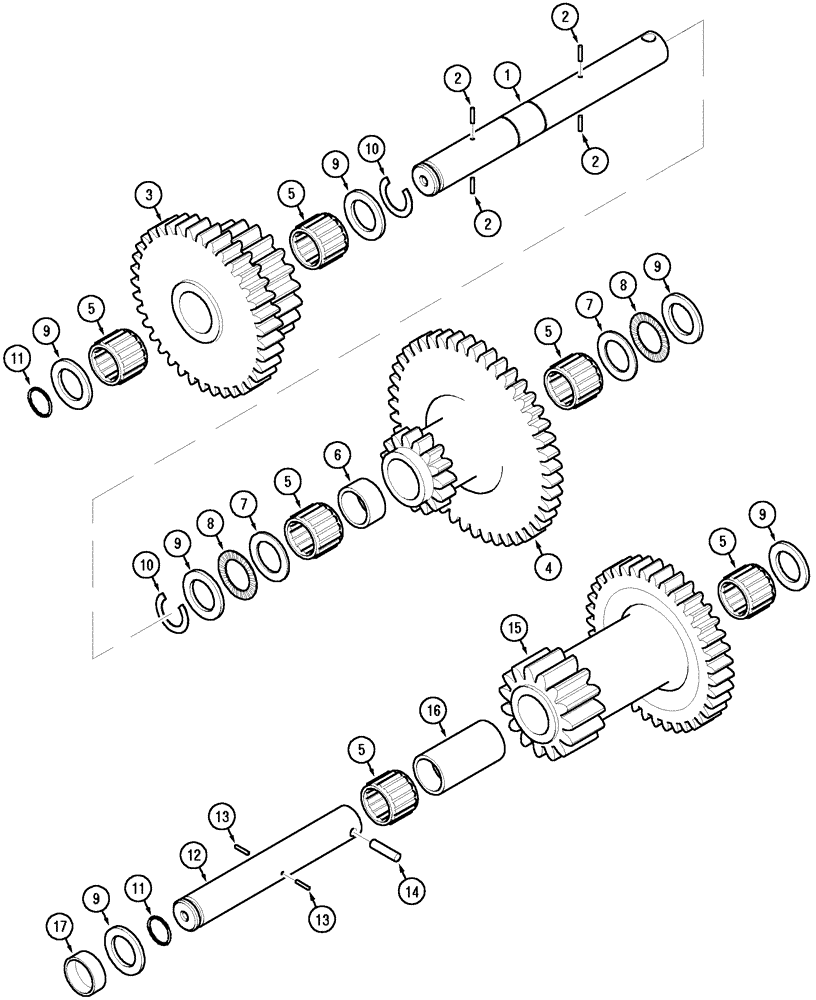

Запчасти Case IH CX100 (06-13) - CREEP SPEED RANGE (06) - POWER TRAIN

313801A1

SHAFT

Consists Of 1,2

1шт.

1

NSS

NOT SOLD SEPARAT

Shaft, Main

1шт.

2

NSS

NOT SOLD SEPARAT

Pin

4шт.

3

303042A1

PINION

20T/37T

1шт.

4

253701A1

PINION

15T/45T

1шт.

5

A62543

NEEDLE BEARING,25.39mm ID x 33.36mm OD x 31.56mm W

6шт.

6

303384A1

SPACER

1шт.

7

G46081

BEARING WASHER

2шт.

8

G13609

THRUST BEARING,25.4mm ID x 39.67mm OD x 1.98mm W

2шт.

9

G46082

WASHER

6шт.

10

100-13100

SNAP RING,#100, Ext, Crescent

Crescent

2шт.

11

638-53200

O-RING,2.65mm Thk x 20mm ID, Cl 5, 75 Duro

2шт.

313800A1

SHAFT

Consists Of 12,13

1шт.

12

NSS

NOT SOLD SEPARAT

Countershaft, Creep Speed

1шт.

13

NSS

NOT SOLD SEPARAT

Pin

2шт.

14

838-3645

PIN,M6 x 45, Coiled

6 x 45 mm

1шт.

15

299464A1

PINION

15T/37T

1шт.

16

303383A1

SPACER

1шт.

17

41-1616

PLUG,Cup, 1", Stainless

1шт.
