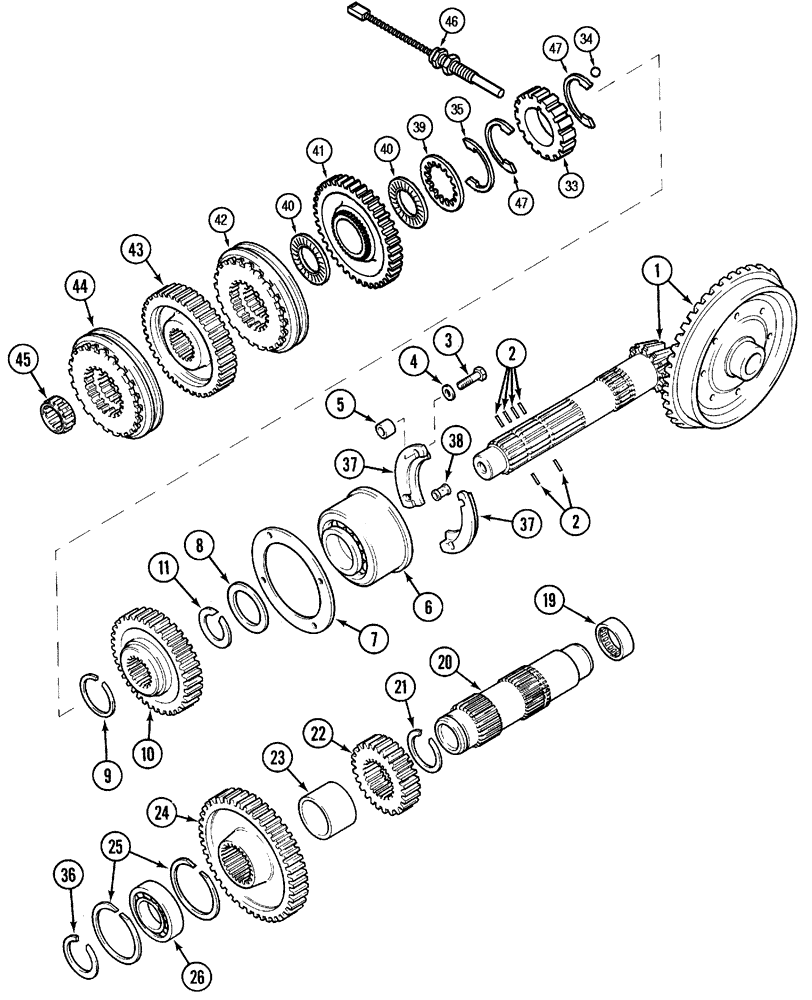

Запчасти Case IH CX100 (06-12) - CREEP SPEED RANGE (06) - POWER TRAIN

1

116638A4

GEAR, BEVEL

BEVEL GEAR , 11/52T, Includes 2

1шт.

1

116638A3

GEAR, BEVEL

BEVEL GEAR , 11/52T, Includes 2A

1шт.

2

438-1611

LOCK PIN,3/32" x 11/16", Slotted

3/32" x 11/16", Slotted

6шт.

2b

38-1605

LOCK PIN,2.36mm OD x 7.92mm L, Slotted

3/32" x 5/16", Slotted

6шт.

3

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

4

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

5

94323C1

BUSHING

1шт.

6

1289706C91

BEARING,52.4mm ID x 116.84mm OD x 66.67mm W

4WD

1шт.

6

65783C92

BEARING ASSY,53.9815 mm ID x 116.84 mm OD x 66.675 mm

1шт.

7

399826R1

SHIM

.004 mm

2шт.

7

399827R1

SHIM

.007 mm

5шт.

8

65788C1

WASHER

4WD

1шт.

9

67573C1

SNAP RING,2.13mm Thk, Ext

2.1336 mm

1шт.

10

82354C1

GEAR

38T, 4WD

1шт.

11

67568C1

CIRCLIP

1.6764 mm

1шт.

11

67569C1

CIRCLIP

1.7526 mm

1шт.

11

67570C1

CIRCLIP

1.8288 mm

1шт.

11

67571C1

CIRCLIP

1.9050 mm

1шт.

11

66077C1

CIRCLIP

1.9812 mm

1шт.

11

67572C1

CIRCLIP

2.0574 mm

1шт.

11

67573C1

SNAP RING,2.13mm Thk, Ext

2.1336 mm

1шт.

11

67574C1

CIRCLIP

2.2098 mm

1шт.

11

67575C1

CIRCLIP

2.2860 mm

1шт.

11

67628C1

CIRCLIP

2.3622 mm

1шт.

19

158187C91

NEEDLE BEARING,47.62mm ID x 57.15mm OD x 25.27mm W

1шт.

20

116583A1

SHAFT

1шт.

21

101-11215

SNAP RING,#215, 2.026", Ext

1шт.

22

116581A1

PINION

24T

1шт.

23

116592A1

SPACER

48.61 mm

1шт.

24

242204A1

PINION

45T

1шт.

25

399832R1

RING, SNAP

RING SNAP

2шт.

26

1201744C91

ROLLER BEARING

Heavy Duty

1шт.

26

G10418

BEARING, BALL

Standard

1шт.

33

140222A1

GEAR

1шт.

34

211-1008

BALL,1/4" Dia

24, CRS

1шт.

35

303589A2

CIRCLIP

1.76 mm

1шт.

35

303590A2

CIRCLIP

1.95 mm

1шт.

35

303591A2

CIRCLIP

2.15 mm

1шт.

35

303592A2

CIRCLIP

2.35 mm

1шт.

35

303593A2

CIRCLIP

2.55 mm

1шт.

35

303594A1

CIRCLIP

2.74 mm

1шт.

36

A27089

SNAP RING,2.36mm Thk, Ext

1шт.

37

83299C1

RETAINER

With 15 mm Hole, 4WD

1шт.

37

65784C2

RETAINER

2WD

2шт.

38

116598A1

TUBE

1шт.

39

301037A1

SHIM

2.25 mm

1шт.

40

1286466C1

BEARING, THRUST

2шт.

41

259517A1

PINION

37T

1шт.

42

307084A1

SYNCHRONIZER

See Page(s) 6-27

1шт.

43

116582A1

PINION

42T

1шт.

44

254540A1

SYNCHRONIZER

Hi/Lo, See Page(s) 6-27

1шт.

45

116589A1

BEARING, NEEDLE,37.3mm ID x 50.01mm OD x 28.5mm W

1шт.

46

123300A1

SENSOR

See Page(s) 4-11

1шт.

47

100-13200

SNAP RING,#200, Ext

2шт.
