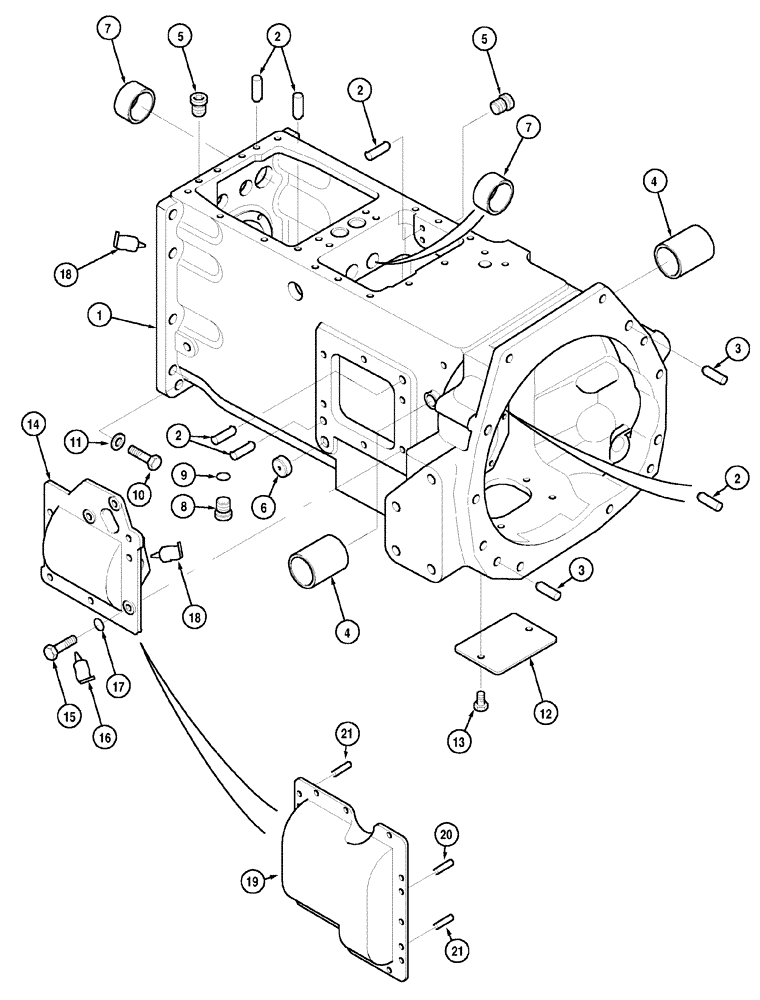

Запчасти Case IH CX100 (06-02) - CLUTCH HOUSING (06) - POWER TRAIN

253946A4

HOUSING

Includes 1 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

837-10020

DOWEL,M10 x 20

3/8 x 3/4

8шт.

3

37-1816

DOWEL,1/2" x 1"

1/2 x 1

2шт.

4

530815R1

BUSHING,22.27mm ID x 25.46mm OD x 22.23mm L

2шт.

5

1342851C1

PLUG

10 mm

5шт.

6

293813A1

PLUG

1шт.

7

193380A1

BUSHING

4шт.

8

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Incl Ref 9

1шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

10

326-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

8шт.

11

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

8шт.

12

399817R1

COVER

1шт.

13

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

14

277920A2

COVER

1шт.

15

326-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

5шт.

15

326-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

1шт.

15

326-634

BOLT,Hex, 3/8" - 16 x 2-1/8", Gr 8

3/8 x 2-1/2; 8

1шт.

16

345-75

SEALANT

1шт.

17

392-11038

LOCK WASHER,3/8"

3/8"

2шт.

18

B17501

LOCTITE

6 ml

1шт.

313802A1

COVER

With Creep Speed, Consists Of 19 - 22

1шт.

19

NSS

NOT SOLD SEPARAT

Cover

1шт.

20

837-10035

DOWEL,M10 x 35

1шт.

21

837-10020

DOWEL,M10 x 20

3/8 x 3/4

2шт.

22

1345889C1

PLUG

6,5 mm OD, Not Illustrated

1шт.
