Запчасти Case IH CX100 (05-03) - POWER STEERING CYLINDER - 2 W.D. (05) - STEERING

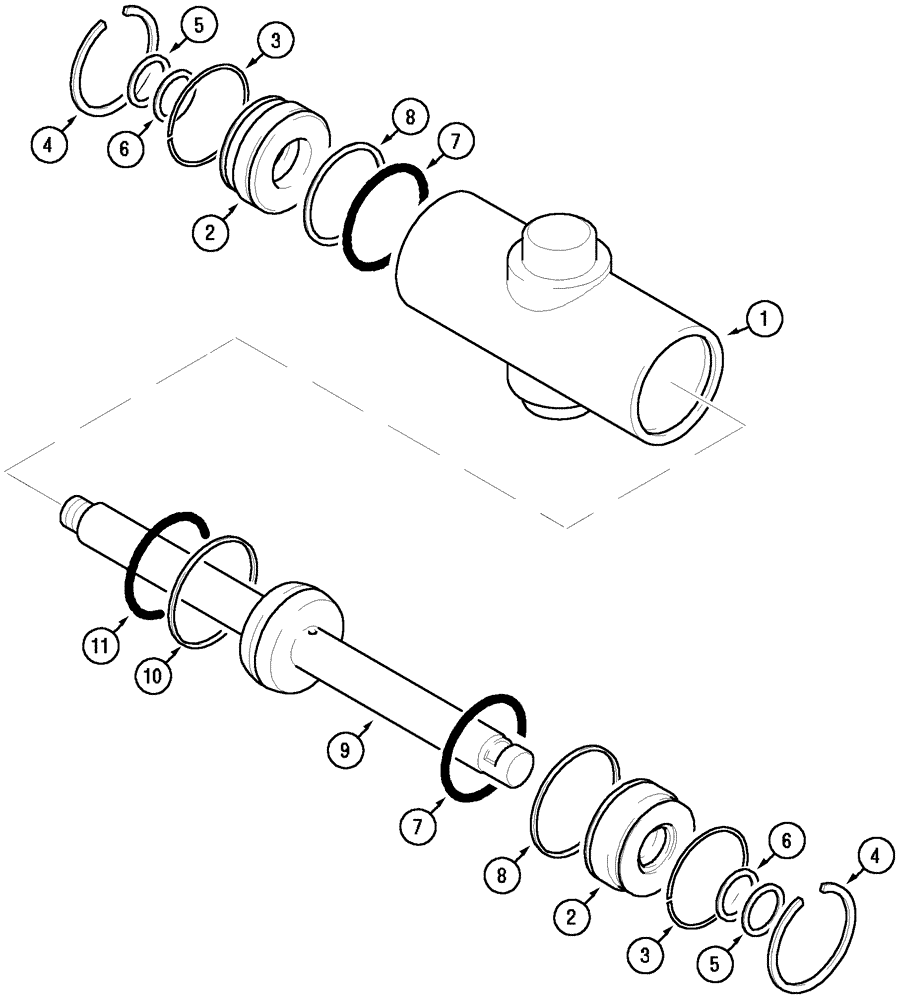

Схема запчастей Case IH CX100 - (05-03) - POWER STEERING CYLINDER - 2 W.D. (05) - STEERING
6
11
8
6
5
2
8
1
2
9
3
5
10
7
3
4
7
4

Артикул

Название

Примечание

Количество

188842A1

STEERING CYLINDER

Consists Of 1 - 13

1шт.

84336125R

REMAN-HYD CYLINDER

CX70, CX80, CX90, CX100 All (1/98-), Reman for New P/N 188842A1

1шт.

84336125C

CORE-HYD CYLINDER

Return Number

1шт.

1

188843A1

HYD CYL SLEEVE

1шт.

2

188844A1

RING

1шт.

3

188852A1

RING

2шт.

4

188853A1

CIRCLIP

2шт.

188855A1

GASKET KIT

Consists Of 5 - 13

1шт.

5

NSS

NOT SOLD SEPARAT

Wiper

2шт.

6

NSS

NOT SOLD SEPARAT

Seal

2шт.

7

NSS

NOT SOLD SEPARAT

O-Ring

2шт.

8

NSS

NOT SOLD SEPARAT

Ring, Retaining

2шт.

188854A1

ROD ASSY.

Consists Of 9,10,11

1шт.

9

NSS

NOT SOLD SEPARAT

Rod

1шт.

10

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

11

NSS

NOT SOLD SEPARAT

Seal

1шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Not Illustrated

1шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Not Illustrated

2шт.

Выбрано товаров: 18
