Запчасти Case IH L-F194 (J-5) - PLOW CHIEF BOTTOM, RSPC, WITH CAST LANDSIDE AND REPLACEABLE SHIN, 1954 TO 1959

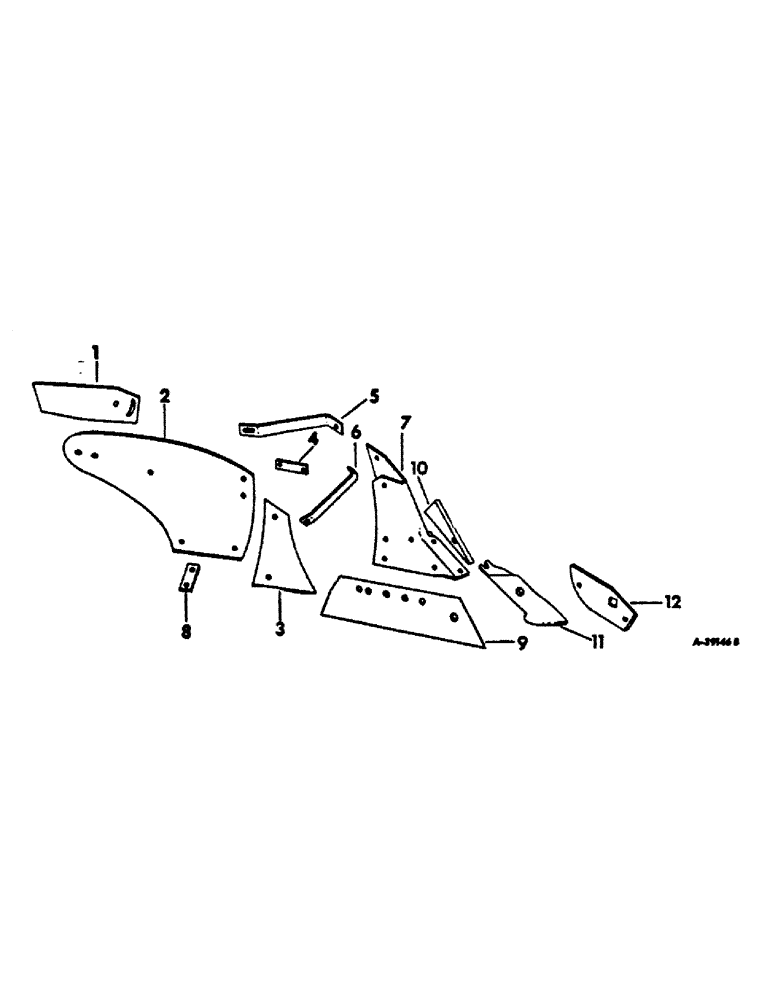

Схема запчастей Case IH L-F194 - (J-5) - PLOW CHIEF BOTTOM, RSPC, WITH CAST LANDSIDE AND REPLACEABLE SHIN, 1954 TO 1959

Артикул

Название

Примечание

Количество

1

PO26664

EXTENSION

moldboard

1шт.

2

520190R11

MOLDBOARD W/BOLTS

1шт.

19019R1

CARRIAGE BOLT,#3, 3/8" - 16 x 1", Gr 2

BOLT, 3/8-16 x 1 C-Z no. 3 plow

3шт.

21195R1

BOLT

3/8-16 x 1-1/8 C-Z no. 3 plow

3шт.

19021R1

CARRIAGE BOLT,#3, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8-16 x 1-1/2 C-Z no. 3 plow

1шт.

120377

NUT,3/8" - 16, Gr 5

7шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

1шт.

3

515680R11

SHIN

W/BOLTS

1шт.

21195R1

BOLT

3/8-16 x 1-1/8 C-Z no. 3 plow

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

4

516706R1

TIE, Serial Range: moldboard-shin

1шт.

5

PO13202

SUPPORT

BRACE, Serial Range: beam-moldboard

1шт.

6

515666R2

BRACE, Serial Range: frog-moldboard

1шт.

7

522226R92

FROG ASSY

1шт.

18449R1

BOLT,Short NK, 5/8"-11 x 3", G2

5/8-11 x 3 znd sq-nk crg

1шт.

516637R11

BOLT

W/NUT, 5/8-11 x 2 sq-hd mach

1шт.

18824R1

BOLT,Hex, 5/8"-11 x 2 1/2", G2

5/8-11 x 2-1/2 znd hex-hd mach

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 znd hex.

3шт.

8

516922R1

SUPPORT

TIE, Serial Range: moldboard-share

1шт.

9

515714R5

SHARE

fullcut

1шт.

493280R1

CARRIAGE BOLT,#3, 3/8" - 16 x 1 1/8" , Gr 8

BOLT, 3/8-16 x 1-1/8 znd no. 3 plow

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

10

522214R1

PLATE

frog fill-in right

1шт.

19020R1

PLOW BOLT,#3, 3/8" - 16 x 1 1/4", Gr 2

BOLT, 3/8-16 x 1-1/4 C-Z no. 3 plow

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

11

515638R1

TOOTH

POINT, share, cast

1шт.

515662R2

SPECIAL BOLT,Plow, 1/2" - 13 x 1 1/2"

BOLT, 1/2-13 x 2 special plow

1шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2-13 C-Z hex. jam

1шт.

516997R31

BOLT

W/NUT, 7/16-20 x 1-1/2 sq-hd mach

1шт.

NLS

NO LONGER SERVICED

7/16-20 C-Z hex.

1шт.

893862R1

WASHER

15/32 x 1-1/4 x 11 ga C-Z

1шт.

11

515640R51

SHARE

POINT W/CAP SCREW, 454997

1шт.

454997

O-RING,175mm ID x 8mm Width

SCREW, 1/2-13 x 7/8 znd type 8 hex head cap

1шт.

12

520184R1

LANDSIDE

front, cast

1шт.

19041R1

BOLT,7/16"-14 x 1 1/4", G2, Full Thd

7/16-14 x 1-1/4 C-Z no. 3 plow

1шт.

19043R1

BOLT

7/16-14 x 1-3/4 C-Z no. 3 plow

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 C-Z hex.

2шт.

Выбрано товаров: 38
