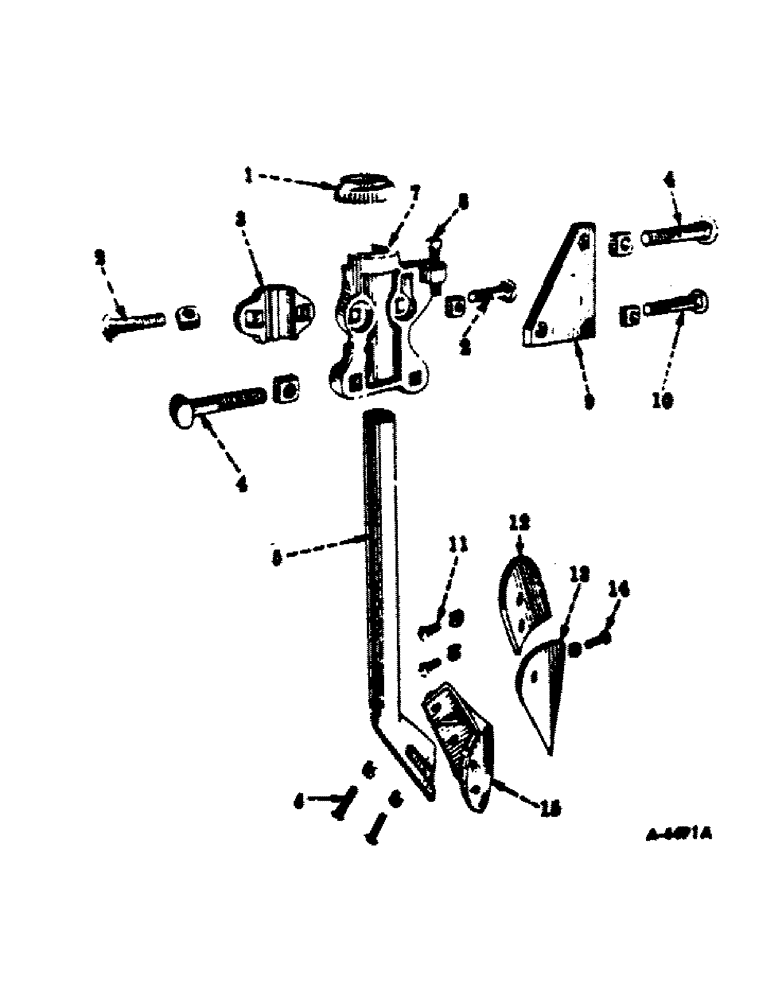

Запчасти Case IH L-F194 (J-4) - STATIONARY JOINTERS, FOR PLOW BUILT 1955 AND SINCE

-X-, Serial Range: key-units

1шт.

-X- letters of these units correspond with those shown following the description of the parts in the list below and identifies the unit for which the part is used. Items without letters after the description indicates the part is used for all units.

1шт.

UNIT A - stationary jointer, right steel, machine attachment, 520791R91

1шт.

UNIT B - stationary jointer, right, chilled, machine attachment, 520792R91

1шт.

1

PO1285

WASHER

eccentric

1шт.

2

15091R11

BOLT (SPREADER)

BOLT W/NUT, 1/2-13UNC x 2-1/4 crg

2шт.

3

8267

PRESSURE GAUGE

CAP, clamp

1шт.

15091R11

BOLT (SPREADER)

BOLT W/NUT, 1/2-13UNC x 2-1/4 crg

2шт.

4

15192R11

BOLT (SPREADER)

BOLT W/NUT, 5/8-11UNC x 3-3/4 crg

2шт.

5

S7404

SHANK, right

1шт.

6

15023R11

BOLT

W/NUT, 3/8-16UNC x 1-1/4 crg

1шт.

7

PO1800AX

CLAMP W/SET SCREW, right

1шт.

NLS

NO LONGER SERVICED

1/2-13UNC x 2 cup-pt sq-hd set

1шт.

8

110454

1/2-13UNC x 2 cup-pt sq-hd set

1шт.

9

PO17025

PLATE, clamp

1шт.

15144R11

BOLT (SPREADER)

BOLT W/NUT, 1/2-13UNC x 3 crg

1шт.

15192R11

BOLT (SPREADER)

BOLT W/NUT, 5/8-11UNC x 3-3/4 crg

2шт.

10

15144R11

BOLT (SPREADER)

BOLT W/NUT, 1/2-13UNC x 3 crg

1шт.

11

15815R11

BOLT W/NUT, 3/8-16UNC x 1-1/8 no. 7 plow

2шт.

12

PO1186

MOLDBOARD, chilled right, 1 used unit B

1шт.

12

S7408X

MOLDBOARD W/BOLT, steel right, 1 used unit A

1шт.

15815R11

BOLT W/NUT, 3/8-16UNC x 1-1/8 no. 7 plow

2шт.

13

PO2226

SHARE, chilled right, 1 used unit A

1шт.

13

PO20092X

BLADE

SHARE W/BOLT, steel right, 1 used unit B

1шт.

15830R11

BOLT W/NUT, 3/8-16UNC x 1-3/8 no. 7 plow

1шт.

14

15830R11

BOLT W/NUT, 3/8-16UNC x 1-3/8 no. 7 plow

1шт.

15

PO1564

FROG, right

1шт.

15023R11

BOLT

W/NUT, 3/8-16UNC x 1-1/4 crg

1шт.

15039R11

BOLT (SPREADER)

BOLT W/NUT, 3/8-16UNC x 1-1/2 crg

1шт.
