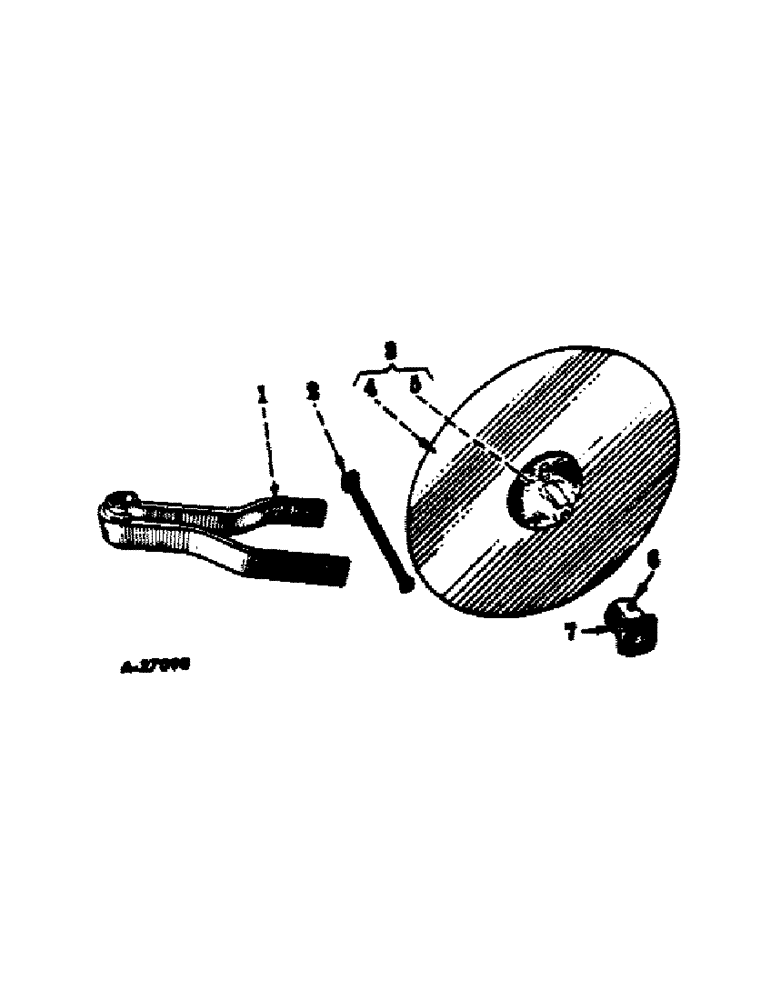

Запчасти Case IH L-F194 (J-3) - ROLLING COLTERS, FOR PLOW BUILT 1955 AND SINCE

-X-, Serial Range: key-units

1шт.

-X- letters of these units correspond with those shown following the description of the parts in the list below and identifies the unit for which the part is used. Items without letters after the description indicates the part is used for all units.

1шт.

UNIT A - Colter, rolling right, w/16 in. plain blade, machine attachment, 516704R91

1шт.

UNIT B - Colter, rolling right, w/16 in. notched blade, machine attachment, 516708R91

1шт.

UNIT C - Colter, rolling right, w/18 in. plain blade, machine attachment, 516708R91

1шт.

UNIT D - Colter, rolling right, w/18 in. notched blade, machine attachment, 516710R91

1шт.

1

512910R92

YOKE, right

1шт.

BOLT W/NUT, 1/2-13UNC x 7-3/4 sq-hd mach, 1-3/4 thd

1шт.

2

512912R11

BOLT (SPREADER)

BOLT W/NUT, 1/2-13UNC x 7-3/4 sq-hd mach, 1-3/4 thd

1шт.

3

PO10401

HALF BLADE

BLADE W/HUBS, plain

1шт.

4

468726R1

COULTER

BLADE, notched, 18 in. dia, 1 used unit D

1шт.

4

468724R1

BLADE

notched, 16 in. dia, 1 used unit B

1шт.

4

468723R1

COULTER

BLADE, plain, 16 in. dia, 1 used unit A

1шт.

4

468725R1

COULTER

BLADE, plain, 18 in. dia, 1 used unit C

1шт.

5

HUB, order PO10401

1шт.

104101

RIVET, 5/16 x 1-1/4 rd-hd

3шт.

6

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, 1/8 straight

2шт.

7

PO2194

BLOCK

2шт.

516712R91

COMBINATION JOINTER, machine attachment

1шт.
