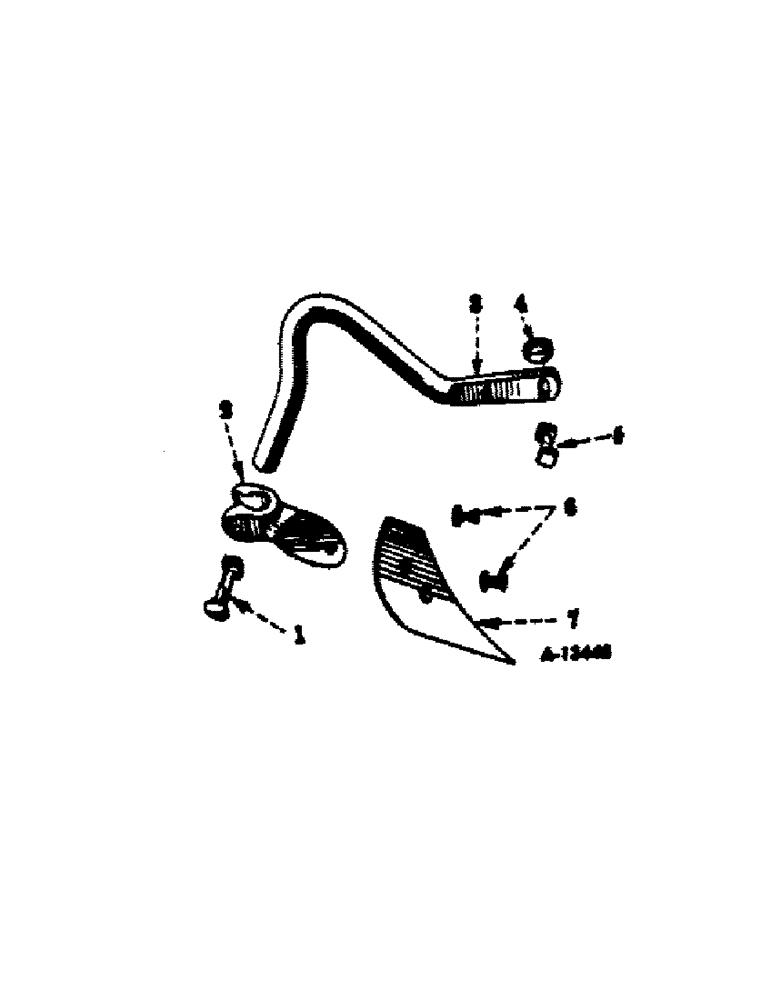

Запчасти Case IH L-F194 (J-3[A]) - COMBINATION JOINTER, FOR PLOW BUILT 1955 AND SINCE

1

15073R11

BOLT (SPREADER)

BOLT W/NUT, 1/2-13UNC x 2 crg

1шт.

2

512326R1

CLAMP, shank

1шт.

15073R11

BOLT (SPREADER)

BOLT W/NUT, 1/2-13UNC x 2 crg

1шт.

3

512914R2

SHANK

1шт.

13292R11

BOLT W/NUT, 7/16-14UNC x 1-1/2 sq-hd mach

1шт.

4

512911R1

WASHER, corrugated

1шт.

5

13292R11

BOLT W/NUT, 7/16UNC x 1-1/2 sq-hd mach

1шт.

6

15554R11

BOLT,#3 Hd, 3/8" - 16 x 1", W/ Nut

W/NUT, 3/8-16UNC x 1 no. 3 plow

2шт.

7

510576R11

BLADE W/BOLTS

1шт.

15554R11

BOLT,#3 Hd, 3/8" - 16 x 1", W/ Nut

W/NUT, 3/8-16UNC x 1 no. 3 plow

2шт.
