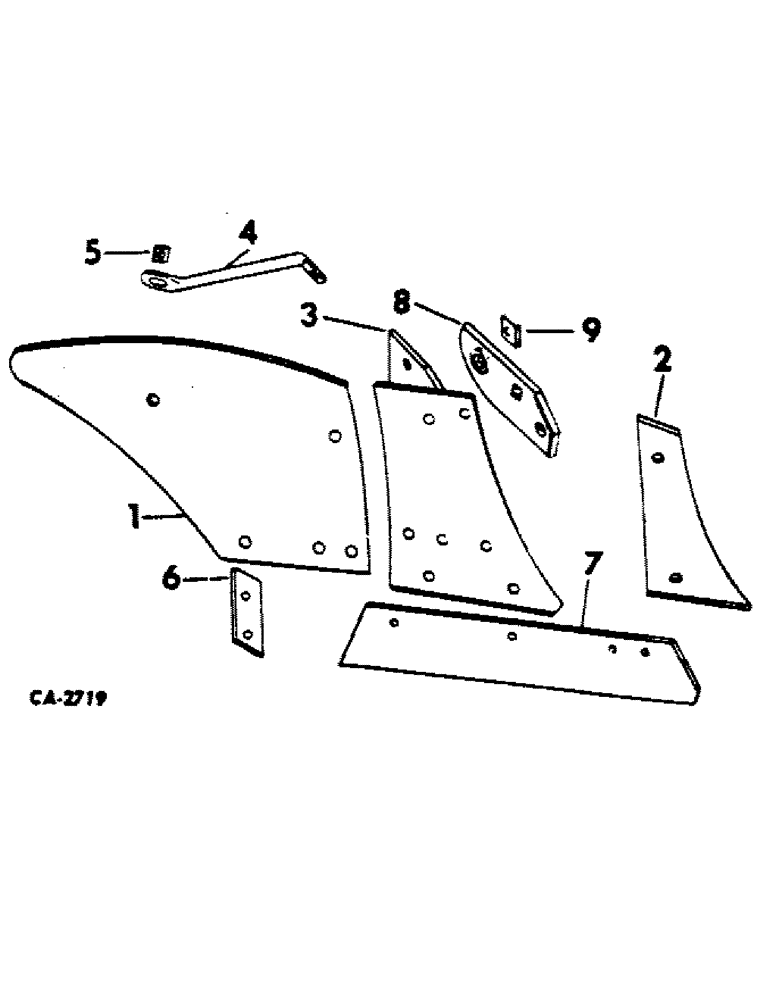

Запчасти Case IH L-F194 (J-7) - SUPER CHIEF BOTTOM, SCX, BUILT 1975 AND SINCE

1

544603R11

MOLDBOARD W/BOLTS

1шт.

493280R1

CARRIAGE BOLT,#3, 3/8" - 16 x 1 1/8" , Gr 8

BOLT, 3/8-16 x 1-1/8 znp type 8 no. 3 plow

3шт.

26538R1

CARRIAGE BOLT,#3, 3/8" - 16 x 1 1/2", Gr 8

BOLT, 3/8-16 x 1-1/2 znp type 8 no. 3 plow

2шт.

21333R1

NUT,3/8"-16, G8

3/8-16 znp type 8 hex.

5шт.

22264R1

WASHER

13/32 x 1 x 7 ga

1шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

5шт.

2

544602R1

PLATE

SHIM

1шт.

493280R1

CARRIAGE BOLT,#3, 3/8" - 16 x 1 1/8" , Gr 8

BOLT, 3/8-16 x 1-1/8 znp type 8 no. 3 plow

1шт.

26538R1

CARRIAGE BOLT,#3, 3/8" - 16 x 1 1/2", Gr 8

BOLT, 3/8-16 x 1-1/2 znp type 8 no. 3 plow

1шт.

21333R1

NUT,3/8"-16, G8

3/8-16 znp type 8 hex.

2шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

2шт.

3

490428R1

FROG

ASSY

1шт.

464601R31

BOLT

W/NUT, frog to beam upper, eccentric

1шт.

465968R21

BOLT

W/NUT, 5/8-18 x 2 C-Z type 8 sq-hd mach

1шт.

225861

NUT,5/8"-18, G8

3шт.

223814

SCREW,Hex, 5/8"-18 x 2 3/4", G5

5/8-18 x 2-3/4 C-Z type 8 hex-hd cap

1шт.

479814R1

WASHER

21/32 x 1-1/4 x 3/16 C-Z

1шт.

4

522318R2

SUPPORT

BRACE, Serial Range: moldboard-frog

1шт.

208491R1

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 8

SCREW, 7/16-14 x 1-1/4 C-Z type 8 hex-hd cap

1шт.

9418646

NUT,7/16"-14, G8

7/16-14 znp type 8 hex.

1шт.

5

490663R1

SQ HOLE WASHER,12.7mm ID x 31.75mm OD x 9.65mm Thk

serrated

1шт.

6

522320R1

BLOCK

TIE, Serial Range: moldboard-share

1шт.

7

SHARES, refer to super chief shares listing

1шт.

8

522342R2

LANDSIDE

front, cast

1шт.

489244R1

CARRIAGE BOLT,#3, 7/16" - 14 x 1 1/2", Gr 8

BOLT, 7/16-14 x 1-1/2 znp type 8 no. 3 plow

2шт.

9418646

NUT,7/16"-14, G8

7/16-14 znp type 8 hex.

2шт.

9

(Not used this application)

1шт.
