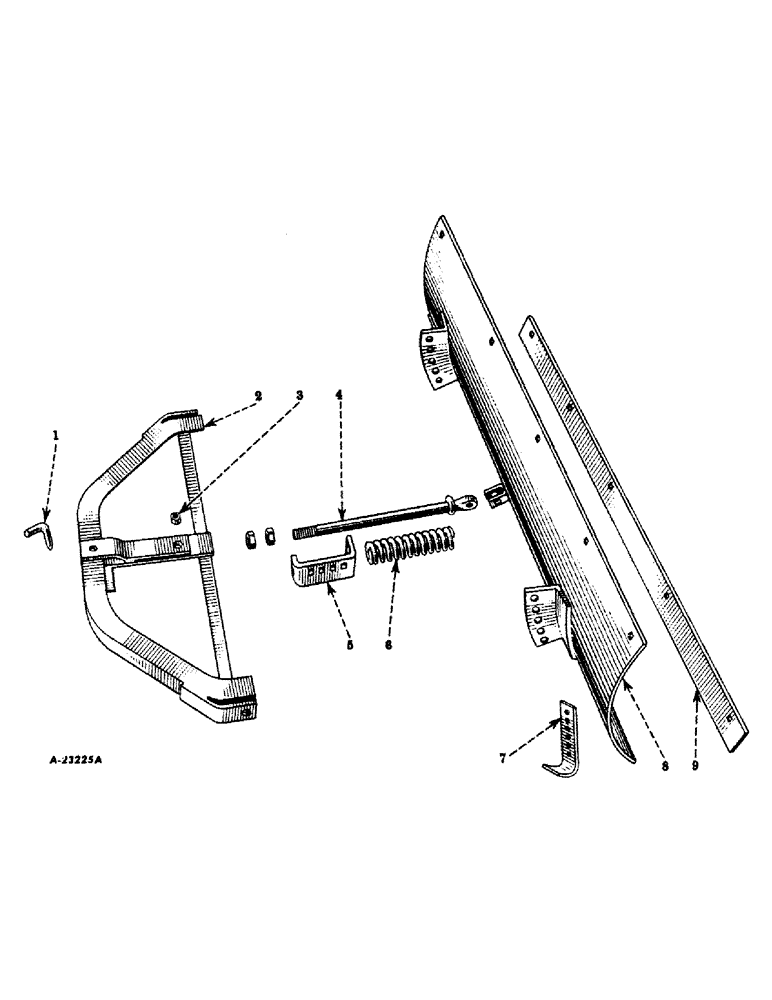

Запчасти Case IH L-54 (F-4) - BLADE AND RELIEF SPRING - L-54 LEVELING AND GRADER BLADE

1

650294R2

ROD

PIN, index

1шт.

2

650289R95

ANGLE

ASSY, support blade

1шт.

13095R1

PIN,1/4" x 1 1/4"

Split (Cotter), 1/4" x 1 1/4"

2шт.

PO28729

PIN

3/4 x 1-3/4 std-hd

2шт.

3

650283R2

SPACER

BUSHING, tie plate

1шт.

17525R1

BOLT

5/8-11 x 2 hex-hd mach

1шт.

350515R1

WASHER

21/32 x 1 x 16 ga

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

102639

NUT,5/8"-11, G5

1шт.

4

650134R1

BOLT

ROD, support spring

1шт.

218445

NUT,Jam, 1"-8, G5

1-8 hex. jam

2шт.

5

650295R2

CHANNEL

BAR, adjuster

1шт.

653138R1

BOLT, 1/2 x 1-3/4 sq-nk crg dld

1шт.

425-128

SLOTTED NUT,1/2"-13, G5

NUT, 1/2-13 slt-hex.

1шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

6

650161R1

SPRING

relief

1шт.

7

651244R1

SHOE

wearing

2шт.

8

650288R92

BLADE

ASSY, leveling & grader

1шт.

88707

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

102637

NUT,1/2"-13, G5

2шт.

Q1270

PIN, 1/2 x 1-9/16 std-hd dld

1шт.

13068R1

PIN,3/16" x 1"

Split (Cotter), , self-opening 3/16" x 1"

1шт.

9

650150R3

BAR

EDGE, cutting

1шт.

88707

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

3шт.

15041R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1 1/2"

BOLT, 1/2 x 1-1/2 sq-nk crg

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

5шт.

102637

NUT,1/2"-13, G5

5шт.
