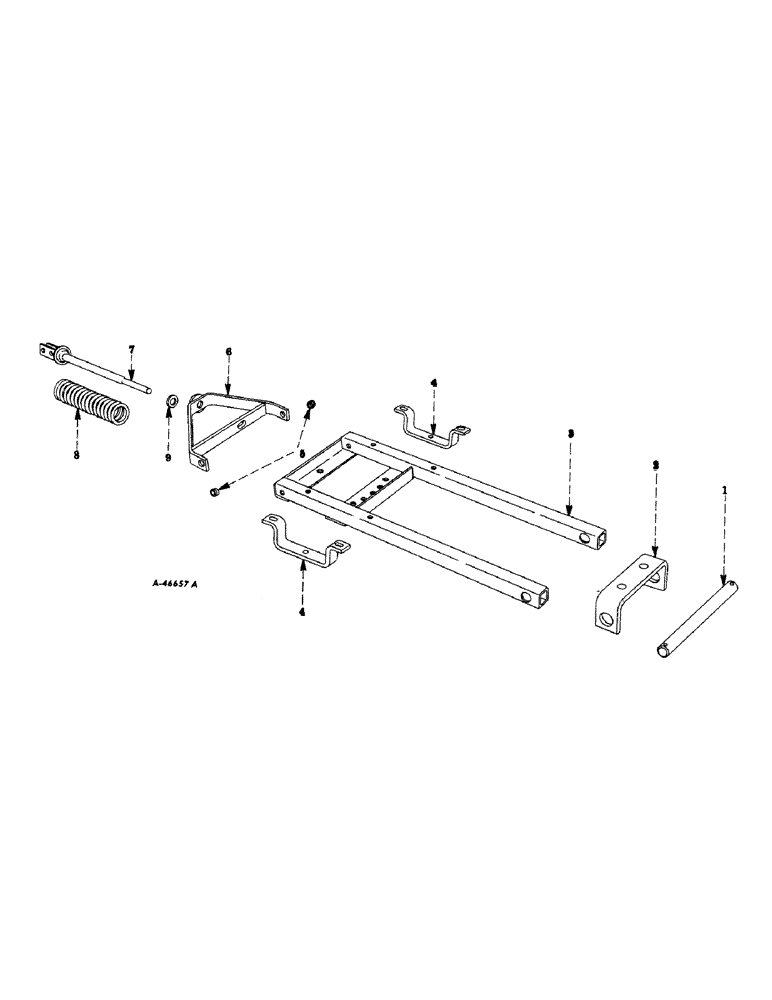

Запчасти Case IH L-54 (F-3) - LIFTING ARM AND PRESSURE SPRING ROD - L-54 LEVELING AND GRADER BLADE

1

650132R1

ROD

AXLE, pivot

1шт.

13121R1

Pin, Split (Cotter), 1/4" x 1 1/2", self opening 1/4" x 1 1/2"

2шт.

2

650138R2

BRACKET, mounting axle

1шт.

17500R1

BOLT,Hex, 5/8"-11 x 1 3/4", G2

5/8-11 x 1-3/4 hex-hd mach

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

102639

NUT,5/8"-11, G5

2шт.

3

651270R91

ARM

ASSY, lifting

1шт.

4

650270R1

GUIDE

support angle

2шт.

17576R1

BOLT,Hex, 1/2"-13 x 2 1/2", G2

1/2 x 2-1/2 hex-hd mach

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

102637

NUT,1/2"-13, G5

4шт.

5

650284R1

BUSHING, lifting straps

2шт.

17603R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 2

1/2-13 x 2-3/4 hex.

2шт.

12026R1

WASHER

17/32 x 1-1/4 x 16 ga.

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

102637

NUT,1/2"-13, G5

2шт.

6

652202R91

STRAP ASSY, lifting

1шт.

7

652298R91

ROD ASSY, pressure spring

1шт.

272321

SPRING

NUT, 7/8-9 slt hex.

1шт.

13081R1

Pin, Split (Cotter), 3/16" x 1 1/8", self-opening 3/16" x 1 1/8"

1шт.

PO26455

LARGE PIN,5/8" x 1 7/8"

PIN, 5/8 x 1-7/8 std-hd dld

1шт.

8

351872R1

SPRING

pressure

1шт.

9

651239R1

SPRING WASHER,23.02mm ID x 38.1mm OD x 6.35mm Thk

pressure spring rod

1шт.
