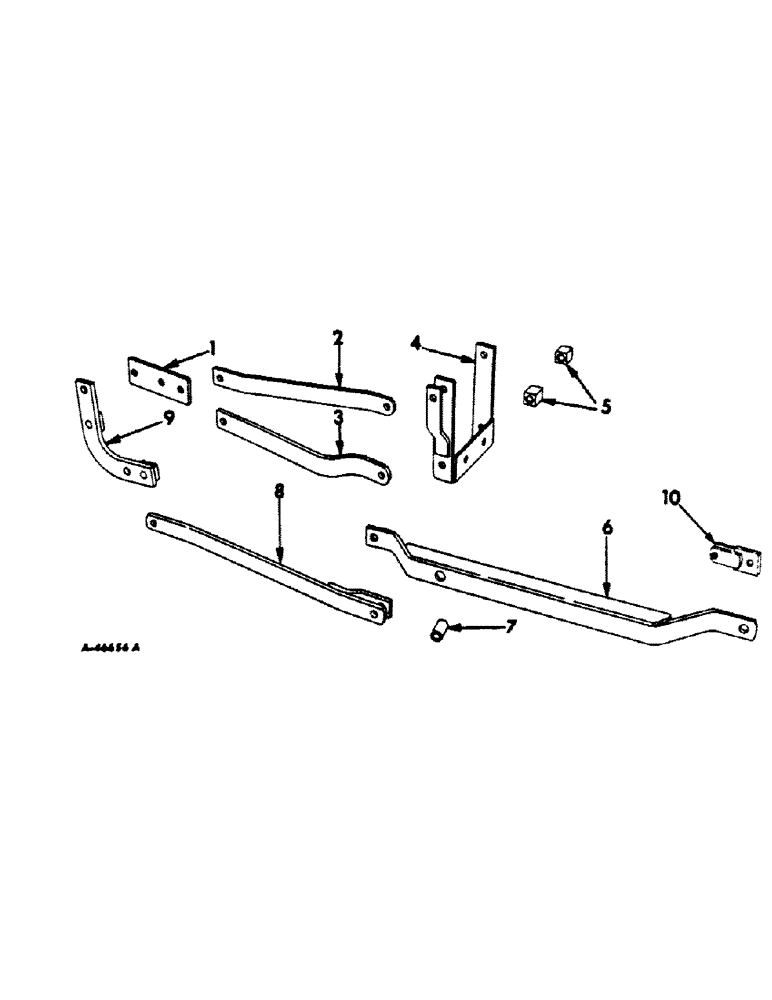

Запчасти Case IH L-54 (A-07) - MOUNTING FRAME AND REAR LIFTING ROD

1

650268R3

PLATE, axle brace support

1шт.

17500R1

BOLT,Hex, 5/8"-11 x 1 3/4", G2

5/8-11 x 1-3/4 hex-hd mach

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

102639

NUT,5/8"-11, G5

2шт.

2

651256R1

BRACE, front axle hanger left

1шт.

17500R1

BOLT,Hex, 5/8"-11 x 1 3/4", G2

5/8-11 x 1-3/4 hex-hd mach

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

102639

NUT,5/8"-11, G5

1шт.

3

652197R2

BRACE, front axle hanger right

1шт.

17500R1

BOLT,Hex, 5/8"-11 x 1 3/4", G2

5/8-11 x 1-3/4 hex-hd mach

1шт.

17552R1

BOLT, 5/8-11 x 2-1/4 hex-hd mach

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

102639

NUT,5/8"-11, G5

2шт.

4

652200R91

HANGER ASSY, front axle

1шт.

18065R1

BOLT,Hex, 5/8"-11 x 12", G2

5/8-11 x 12 hex-hd mach

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

102639

NUT,5/8"-11, G5

1шт.

5

651237R2

SPACER

axle hanger bolt

2шт.

511961R2

BOLT,Hex, 5/8" - 11 x 1 1/2"

5/8-11 x 1-1/2 hex-hd

2шт.

6

652196R91

LEVER ASSY, lifting

1шт.

7

651260R1

SPACER

BUSHING, lifting lever spacer

1шт.

8

651267R92

ROD ASSY, rear lifting

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

1шт.

N42024

HEADED PIN,15.88mm OD x 44.45mm L

PIN, 5/8 x 1-3/4 std-hd dld

1шт.

9

651266R92

EXTENSION ASSY, bellcrank

1шт.

17578R1

BOLT (SPREADER),Hex, 5/8"-11 x 2 1/2", G2

BOLT, 5/8-11 x 2-1/2 hex-hd mach

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

102639

NUT,5/8"-11, G5

2шт.

10

651268R91

CLEVIS, assembled flexible, 1960

1шт.

Q995

DOWEL

PIN, 5/8 x 1-3/8 std-hd dld

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

1шт.
