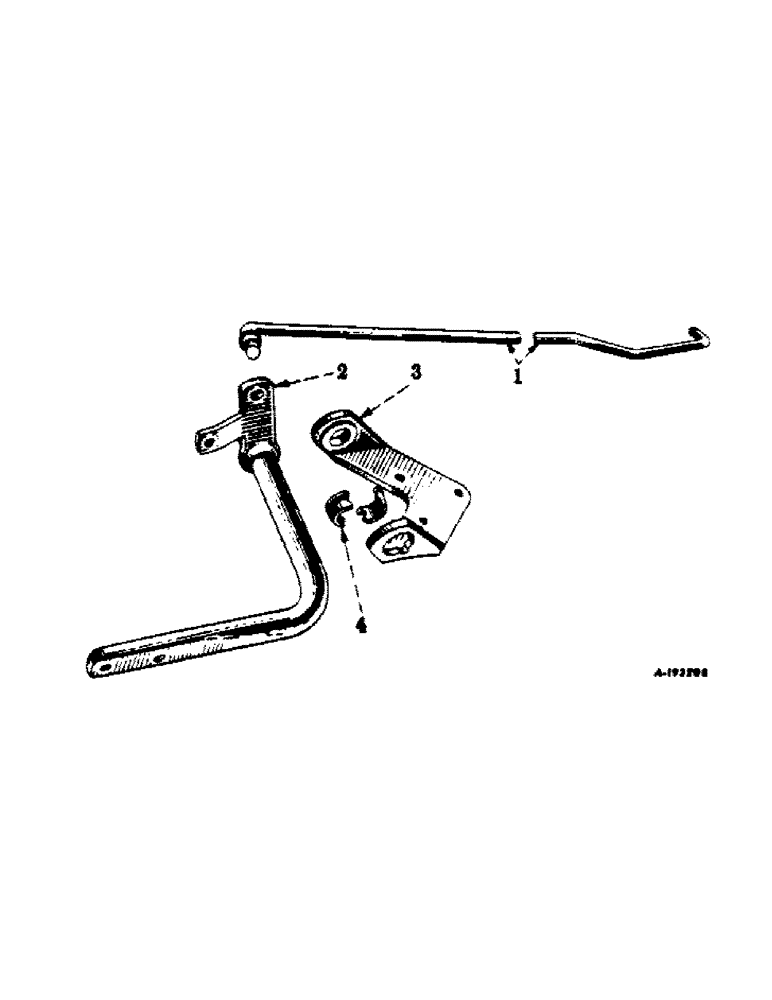

Запчасти Case IH L-38 (D-14) - REAR ROCKSHAFT / PRODUCT GRAPHICS

1

516192R1

ROD

LINK, left

1шт.

13094R1

Pin, Split (Cotter), 3/16" x 1 1/4" 3/16" x 1 1/4"

2шт.

2

514553R93

ROCKSHAFT

1шт.

13157R1

PIN, 1/4 x 2 C-Z cot.

1шт.

Q3487

WASHER

1-17/32 x 2-1/4 x 11 ga

1шт.

3

515741R1

PLATE, rockshaft mounting

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

SCREW, 1/2-13 x 1-1/2 C-Z hex-hd cap

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

4

514548R1

CAP

BEARING, lower half rockshaft

2шт.

4

514549R1

CAP

BEARING, upper half rockshaft

2шт.

476782R91

PACKAGE, product graphic, consists of

1шт.

2750850R2

PRODUCT GRAPHIC MODEL DESIGNATION (NSS), on rear of left gang frame

1шт.

2751132R1

PRODUCT GRAPHIC INTERNATIONAL, on rear of right gang frame

1шт.

1000693R3

IH CO. OF CANADA, for Canada only

1шт.
