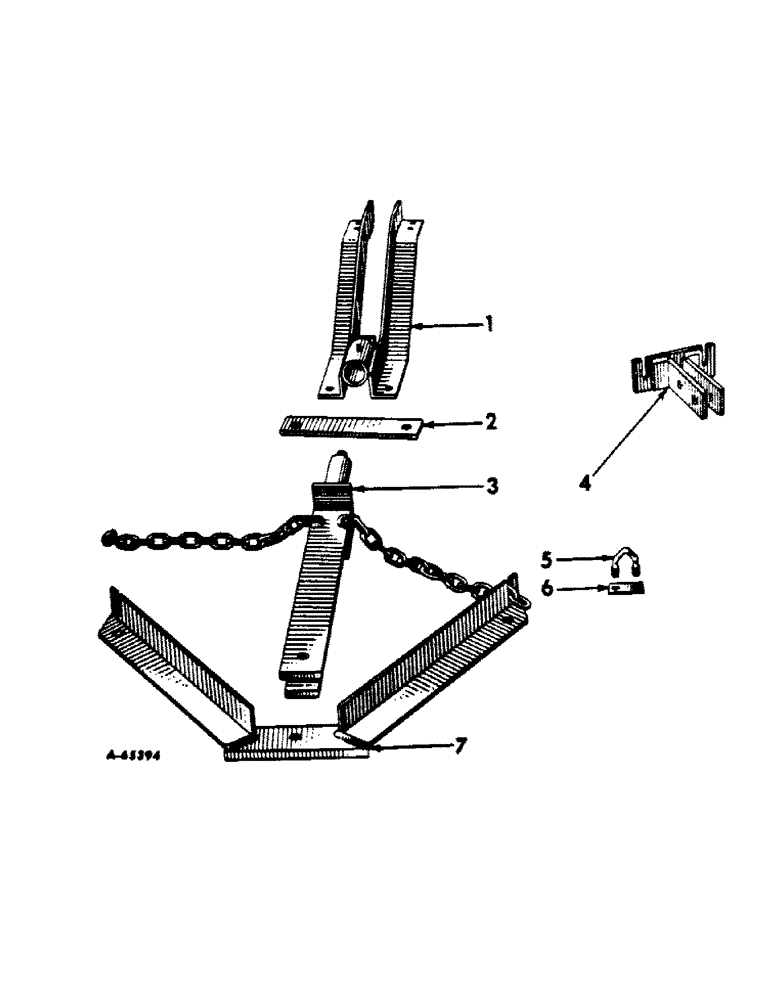

Запчасти Case IH L-38 (D-13) - HITCH FRAME AND DRAFT ANGLES

1

651488R91

ANGLE, draft

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (straight) 1/4"-28 NPT x .54" lg

1шт.

18809R1

BOLT,Hex, 1/2"-13 x 2", G2

1/2-13 x 2 C-Z hex-hd mach

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

2

651458R1

BRACKET, outer drawbar center

1шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2-13 x 1-1/4 C-Z hex-hd mach

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

3

651485R92

TONGUE

1шт.

425-1812

SLOTTED NUT,3/4"-10, G5, Thk

3/4-10 C-Z slt hex.

1шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

520175R1

CLIP

PIN, quick-attachable cotter

1шт.

650944R1

PIN, 5/8 x 3 dld-std-hd

1шт.

446256

WASHER,3/4" x 1 3/4" x .148"

13/16 x 1-3/4 x 9 ga C-Z

1шт.

4

651487R91

BRACKET, upper chain

1шт.

18810R1

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 2

. 1/2-13 x 2-1/4 C-Z hex-hd mach

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

5

P14804

U-BOLT W/NUTS

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

271501

SOCKET

NUT, 7/16-14 C-Z hex.

4шт.

6

651452R1

SPACER, u-bolt

2шт.

7

651486R91

FRAME, hitch

1шт.

22018R1

BOLT, 5/8-11 x 1-5/8 C-Z hex-hd mach

2шт.

20511R1

WASHER, 5/8 znd med lock

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 C-Z hex. lock

2шт.

651429R1

CHAIN. lifting, 34 links

2шт.
