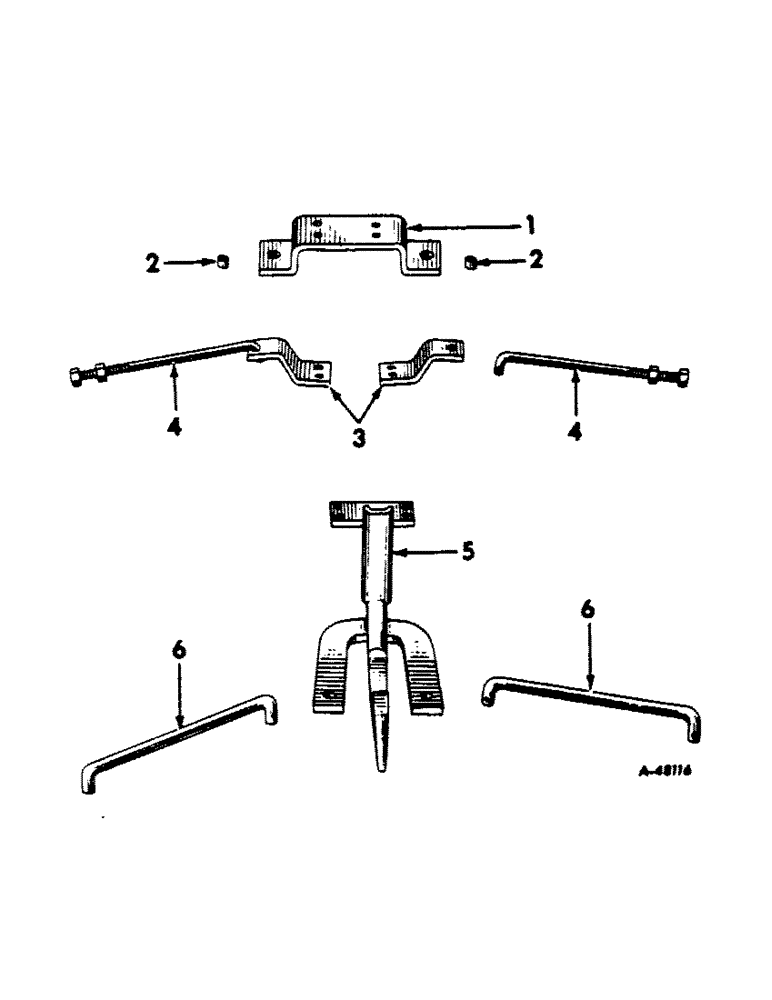

Запчасти Case IH L-38 (D-12) - COUPLING BEAM

1

651463R1

PLATE, gang swivel

1шт.

2

651484R1

SPACER,1" Tube x 13/16"

gang swivel

2шт.

3

650663R2

BRACKET, gang support rod inner

2шт.

4

650653R1

ROD, gang frame support

2шт.

280954

NUT,3/4"-10, G5

4шт.

87395

COTTER PIN,1/8" OD x 1-1/4" OAL

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

2шт.

5

651806R91

BEAM, coupling, for cub tractor, 1 used for 4 ft.

1шт.

5

652302R91

BEAM, coupling, for cub lo-boy

1шт.

17750R1

BOLT (SPREADER)

BOLT, 1/2-13 x 2-1/4 C-Z hex-hd mach

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

6

651449R1

DRAWBAR, outer

2шт.

187988

COTTER PIN,3/16" x 1 1/4"

PIN, SPLIT (COTTER), 3/16" x 1 1/4"

2шт.

520175R1

CLIP

PIN, 3/16 x 2-7/8 quick-attachable cotter

2шт.
