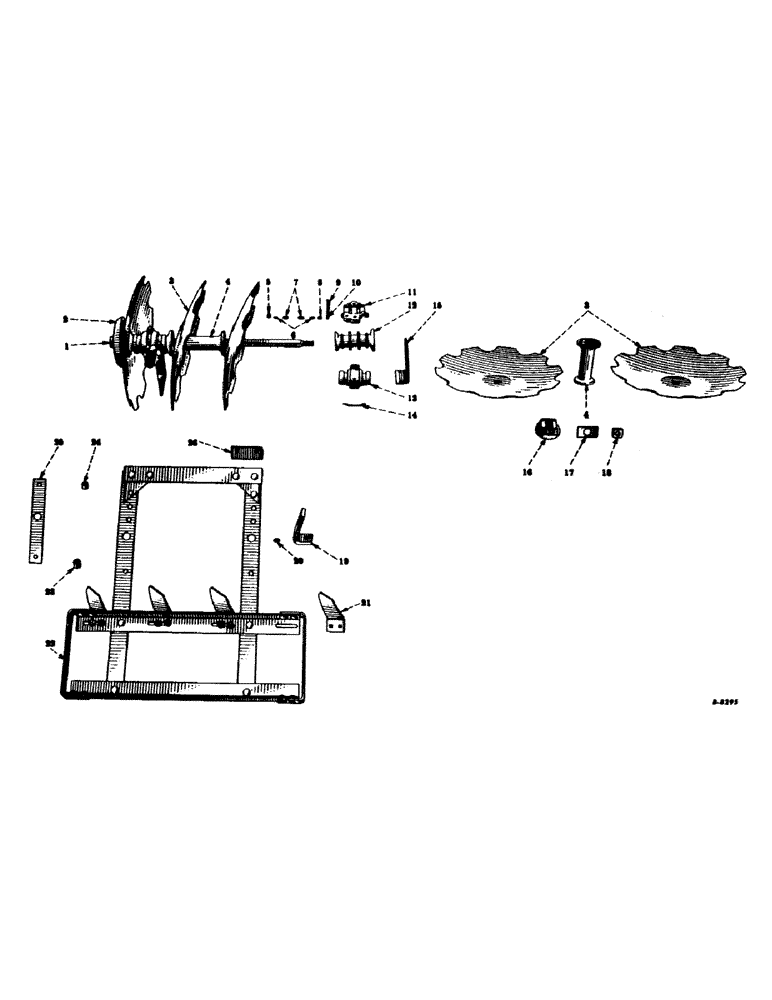

Запчасти Case IH L-38 (D-10) - MAIN FRAME AND GANG

1

NLS

NO LONGER SERVICED

BOLT, arbor, 2 used for 4 ft

1шт.

1

11037

BELT, TRANSMISSION

BOLT, arbor, 2 used for 5 ft. 1 in.

1шт.

2

P4186

SPACER

WASHER, bumper

2шт.

3

P34073

DISC

DISK, 16 in. 12 ga solid

1шт.

3

132601/2

DISK, 16 in. 11 ga notched

1шт.

3

93181/2

DISK, 18 in. 10 ga solid

1шт.

3

119441/2

DISK, 18 in. 10 ga notched

1шт.

3

93191/2

DISK, 20 in. 9 ga solid, Serial Range: 1961-1964

1шт.

3

119451/2

DISK, 20 in. 9 ga notched, 1961 to 1964, 8 used for 4 ft, 10 used for 5 ft. 1 in.

1шт.

4

PA821

SPOOL

SPOOK, blade spacing, 2 used for 4 ft., 4 used for 5 ft. 1 in.

1шт.

5

650131R1

CAP

oil pipe

4шт.

6

651352R1

WASHER, 7/8 x 9/16 x 18 ga

8шт.

7

651351R1

SEALING WASHER

WASHER, oil pipe leather

8шт.

8

PA13345

NUT

1/4 oil pipe lock

4шт.

9

219-31

LUBE NIPPLE,30 Degree Elbow, 1/8" - 27 NPTF

FITTING, 1/8 pt 30 deg elbow lub

4шт.

10

P34685

PIPE

oil upper bearing

4шт.

11

P4149

BEARING, lower right

2шт.

11

P4150

BEARING, lower left

2шт.

12

P4128

SPOOL

bearing

4шт.

13

651287R2

BEARING, upper

4шт.

14

P24896

GASKET, bearing

4шт.

15

651451R1

STANDARD, bearing

4шт.

18814R1

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 2

1/2-13 x 4-1/2 C-Z hex-hd mach

4шт.

18498R1

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 2

1/2-13 x 3-1/2 C-Z hex-hd mach

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

WASHER, 1/2-13 C-Z hex.

8шт.

16

P4166

SPACER

WASHER, arbor bolt nut

2шт.

17

P34100

LOCK

arbor bolt

2шт.

18

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

2шт.

19

650664R1

BRACKET, gang support rod outer

2шт.

20

495865R2

BUSHING, gang support rod bracket outer

2шт.

21

495868R1

SCRAPER, LH, Serial Range: 1961-1964

1шт.

21

495869R1

SCRAPER, RH, 1961 to 1964, 3 used for 4 ft, 4 used for 5 ft 1 in.

1шт.

BOLT W/NUT, 5/16 x 1 crg, 6 used for 4 ft., 8 used for 5 ft. 1 in.

1шт.

WASHER, 5/16 lock, 6 used for 4 ft., 8 used for 5 ft. 1 in.

1шт.

WASHER, 11/32 x 3/4 x 16 ga, 6 used for 4 ft., 8 used for 5 ft. 1 in.

1шт.

22

651489R91

FRAME, gang LH, 1 used for 4 ft

1шт.

22

651490R91

FRAME, gang RH, 1 used for 4 ft

1шт.

22

651491R91

FRAME, gang LH, 1 used for 5 ft. 1 in.

1шт.

22

651492R91

FRAME, gang RH, 1 used for 5 ft. 1 in.

1шт.

18780R1

BOLT,Hex, 3/8"-16 x 1 3/4", G2

3/8-16 x 1-3/4 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

18794R1

BOLT,Hex, 7/16" - 14 x 1", Gr 2

7/16-14 x 1 C-Z hex-hd mach

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

NLS

NO LONGER SERVICED

NUT, 7/16-14 C-Z hex.

4шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2-13 x 1-1/2 C-Z hex-hd mach

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

18839R1

BOLT,Hex, 3/4" x 2 1/4"

3/4-10 x 2-1/4 C-Z hex-hd mach

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

1шт.

280954

NUT,3/4"-10, G5

1шт.

22174R1

RIVET, 3/8 x 13/16 truss-hd

7шт.

21685R1

RIVET,Tr Hd, 3/8" x 1"

3/8 x 1 truss-hd

10шт.

178373R1

WASHER

17/32 x 1 16 ga C-Z

1шт.

23

L13763

PLATE ASSY.

SPACER, swivel bracket strap rear

2шт.

24

513973R1

SPACER, swivel bracket strap front

2шт.

25

651454R1

STRAP, swivel bracket

2шт.

26

651480R1

BRACKET, outer drawbar LH

1шт.

26

651481R1

BRACKET, outer drawbar RH

1шт.
