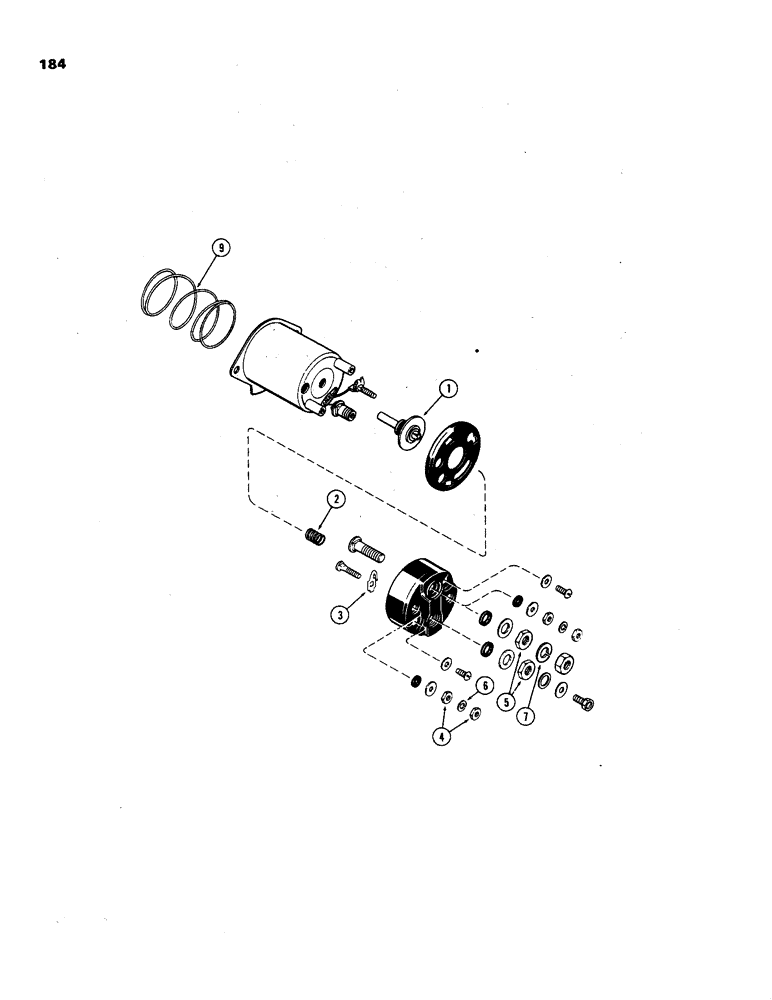

Запчасти Case IH 970 (184) - G44891 SOLENOID, 377B SPARK IGNITION ENGINE (04) - ELECTRICAL SYSTEMS

G44891

SOLENOID

ASSEMBLY - (Delco #1114356), Includes: Ref. 1 - 9

1шт.

It is suggested your local Delco-Remy dealer be contacted for all parts illustrated but not listed.

1шт.

1

A42061

SWITCH

CONTACT ASSEMBLY

1шт.

2

A42059

SPRING

- contact return

1шт.

3

A42060

HALF BLADE

BLADE - contact

1шт.

4

129-16

NUT,#8-32

Terminal #8-32

4шт.

5

120-143

NUT - terminal, 3/8" NC hex

3шт.

6

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

9

A40221

SPRING

- plunger return

1шт.
