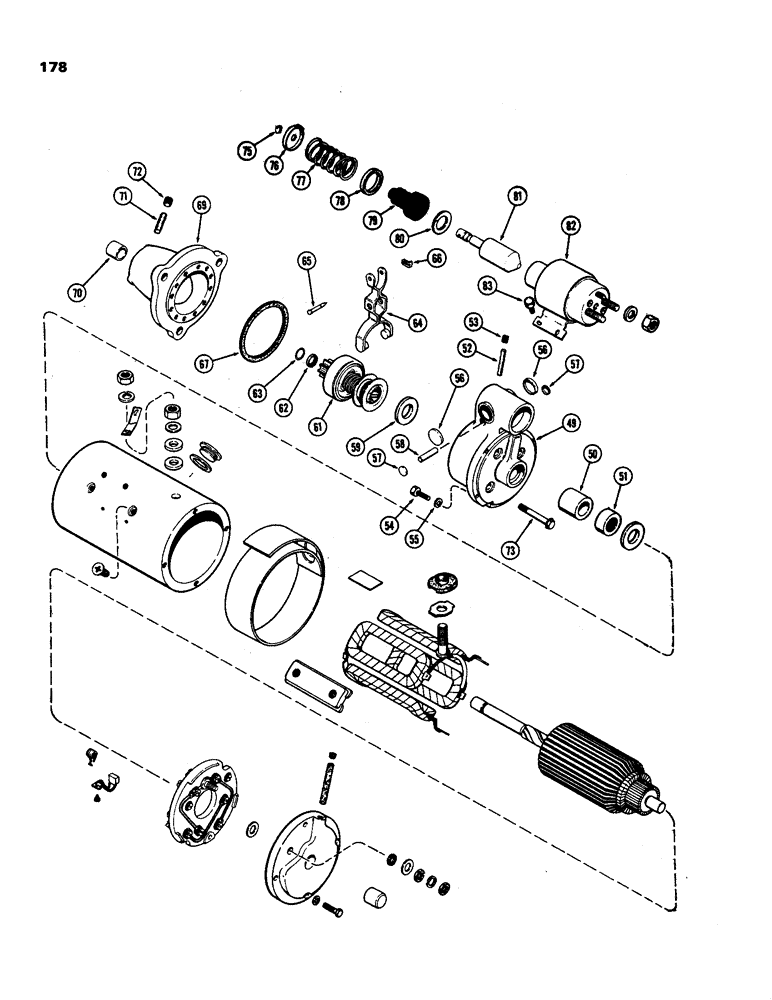

Запчасти Case IH 970 (178) - A59217 STARTER, USED PRIOR TO TRACTOR S/N 8696753, 401 DIESEL ENGINE (CONTD) (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
A59217
STARTER MOTOR
STARTER ASSEMBLY, Includes: Ref. 49 - 83 and 2 - 47 on Figure 176
1шт.
49
A42325
HOUSING ASSEMBLY - shift lever, Includes: Ref. 50 - 53
1шт.
50
A40944
BUSHING
- lever housing, 21/32 x 1-3/8 x 25/64"
1шт.
51
A25407
OIL SEAL
OIL SEAL - lever housing, 21/32 x 1-3/8 x 25/64"
1шт.
52
A41417
WICK
- oil
1шт.
53
221-1849
PLUG
- oil wick hole
1шт.
54
114-1
BOLT,Hex, 1/4" - 28 x 1", Gr 5
5шт.
55
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
WASHER, LOCK, 1/4"
5шт.
56
A42013
PLUG
- 1-3/16" expansion
2шт.
57
A42064
PLUG
- 5/8" expansion
2шт.
58
A25402
STUD
SHAFT - shift lever
1шт.
59
R15043
WASHER
- brake, lever housing, 25/32 x 2 x 3/32"
1шт.
61
A45470
DRIVE
ASSEMBLY - starter (Replaces A42331)
1шт.
62
R15049
COLLAR
- pinion stop
1шт.
63
R15048
RING
- pinion stop retainer
1шт.
64
A25398
LEVER
- shift
1шт.
65
A25400
PIN
- shift lever to solenoid plunger
1шт.
66
A25406
OIL SEAL
RETAINER - shift lever pin
1шт.
67
A41508
GASKET
- lever housing to drive housing
1шт.
69
A25347
HOUSING ASSEMBLY - drive end, Includes: Ref. 70 - 72
1шт.
70
A40868
BUSHING
- drive housing, 9/16 x 3/4 x 3/4"
1шт.
71
R15023
WICK
- oil
1шт.
72
221-1041
PLUG
- oil wick hole
1шт.
73
A42012
BOLT (SPREADER),5/16" x 2 13/32"
SCREW ASSEMBLY - lever housing to drive housing
4шт.
75
G46146
SNAP RING,#37, Ext
Ring, Snap, , plunger retaining #37, Ext
1шт.
76
R21571
RETAINER
- spring, with 13/32" hole
1шт.
77
A41242
SPRING
- plunger return
1шт.
78
R21572
RETAINER
- spring, with 1-13/64" hole
1шт.
79
A42308
BOOT
- solenoid
1шт.
80
A42008
WASHER
- retainer, 31/32 x 1-7/16 x 1/32"
1шт.
81
A25394
PLUNGER
- solenoid
1шт.
82
A44817
SOLENOID
ASSEMBLY (Replaces A42326), See Figure 183A
1шт.
83
R15159
SCREW,Hex, 1/4" - 20 x 3/8", w/ LW
- solenoid attaching
4шт.
Выбрано товаров: 33
