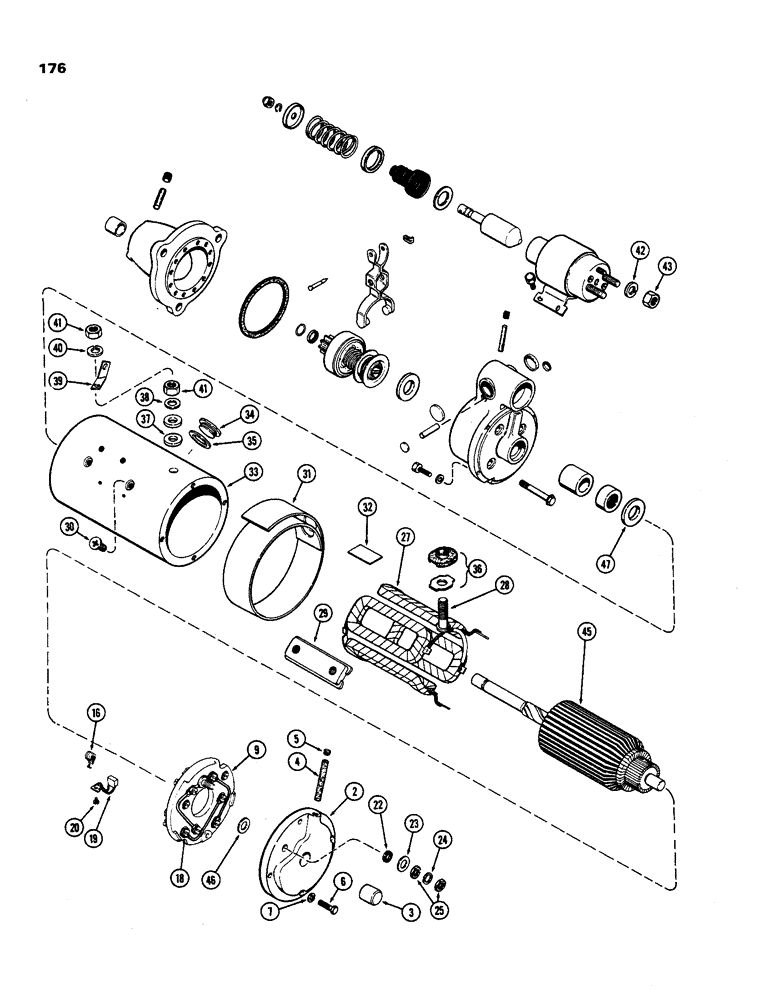

Запчасти Case IH 970 (176) - A59217 STARTER, USED PRIOR TO TRACTOR S/N 8696753, 401 DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

A59217

STARTER MOTOR

STARTER ASSEMBLY - (Delco #1113689) (A64907), Includes: Ref. 2 - 47 and 49 - 83 on Figure 178

1шт.

2

A42341

FRAME

ASSEMBLY - commutator end, Includes: Ref. 3 - 5

1шт.

3

A42323

BUSHING

- frame, 9/16 x 11/16 x 57/64"

1шт.

4

R15023

WICK

- oil

1шт.

5

221-1041

PLUG

- oil wick hole

1шт.

6

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

4шт.

7

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

9

A42786

LARGE PLATE

PLATE ASSEMBLY - brush, Includes: Ref. 16 & 18

1шт.

16

A42333

SPRING

- brush

4шт.

18

187-1051

SCREW - brush plate assembly mounting

1шт.

19

A40891

BRUSH, COMMUTATOR

BRUSH ASSEMBLY

4шт.

20

174-211

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

- brush attaching, #8 x 5/16" NC, round head machine

4шт.

22

A42085

BUSHING

WASHER - commutator end terminal (Rubber)

1шт.

23

R15013

WASHER

- 25/64 x 11/16 x 1/16"

1шт.

24

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

25

192-143

NUT - 3/8" NC hex, jam

2шт.

27

A42332

COIL

ASSEMBLY - field, Includes: Ref. 28

1шт.

28

A40896

STUD

- starter terminal

1шт.

29

R15115

SHOE

- pole

4шт.

30

A42127

SCREW,3/8" - 24 x 0.20"

- pole shoes

8шт.

31

A42342

INSULATOR

INSULATION - field coil

1шт.

32

A42327

INSULATOR

INSULATION - field coil

2шт.

33

NSS

NOT SOLD SEPARAT

FRAME - field

1шт.

34

R21587

PLUG

- brush inspection

1шт.

35

A41924

GASKET

- inspection plug

2шт.

36

A41925

BUSHING

PACKAGE - terminal stud

1шт.

37

D30005

INSULATOR

WASHER - insulator field terminal stud

2шт.

38

D30006

WASHER

- field terminal stud

1шт.

39

A42343

CONNECTOR, ELEC

CONNECTOR - field, Serial Range: stud-solenoid

1шт.

40

192-113

LOCK WASHER,1/2"

WASHER - lock, 1/2"

1шт.

41

129-145

JAM NUT,Jam, 1/2"-13, G5

2шт.

42

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

43

87016560

JAM NUT,Jam, 3/8"-16, G5

1шт.

45

A40800

ARMATURE

- starter

1шт.

46

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

- armature, commutator end

1шт.

47

A42202

WASHER

- armature spacer, 49/64 x 1-3/4 x 19/64"

1шт.
