Запчасти Case IH 970 (174) - A64907 STARTER, USED TRACTOR S/N 8696753 TO 8814501, 401 DIESEL ENGINE (CONTD) (04) - ELECTRICAL SYSTEMS

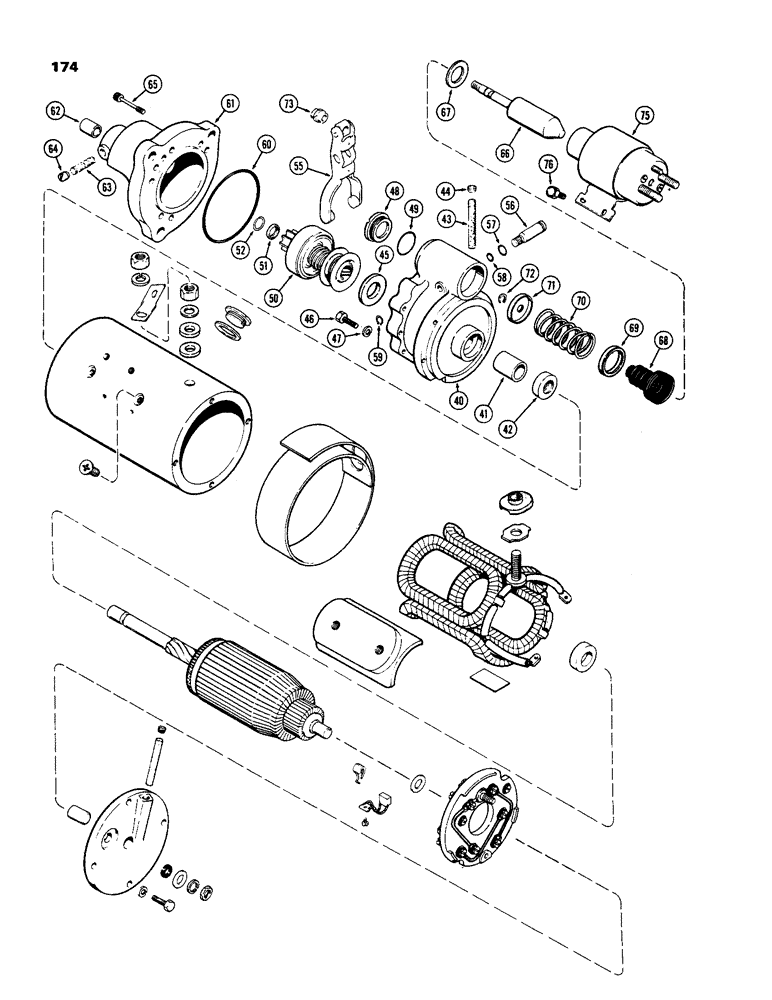

Схема запчастей Case IH 970 - (174) - A64907 STARTER, USED TRACTOR S/N 8696753 TO 8814501, 401 DIESEL ENGINE (CONTD) (04) - ELECTRICAL SYSTEMS
52
46
75
69
42
65
70
69
68
49
49
41
57
48
28
64
45
50
62
66
47
61
73
59
56
55
44
72
76
71
63
51
67
42

Артикул

Название

Примечание

Количество

A64907

ELECTRIC MOTOR

STARTER ASSEMBLY, Includes: Ref. 40 - 76 and 2 - 37 on Figure 172

1шт.

104212A2R

REMAN-STARTER

Remanufactured Starter

1шт.

104212A1C

CORE-STARTER

Return Part Number

1шт.

40

A43859

HOUSING

HOUSING ASSEMBLY - shift lever, Includes: Ref. 41 - 45

1шт.

41

A40944

BUSHING

BUSHING - 3/4 x 7/8 x 3/4"

1шт.

42

A25407

OIL SEAL

SEAL - oil, 3/4 x 1-3/8 x 13/32"

1шт.

43

A41417

WICK

WICK - oil

1шт.

44

221-1849

PLUG

PLUG - 1/8" hex socket head, pipe

1шт.

45

R15043

WASHER

WASHER - brake, 25/32 x 2 x 3/32"

1шт.

46

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

BOLT, Hex, 1/4"-28 x 1", G5

5шт.

47

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

5шт.

48

R21587

PLUG

PLUG - inspection, lever housing

1шт.

49

A41924

GASKET

GASKET - plug

1шт.

50

A45470

DRIVE

DRIVE ASSEMBLY - clutch (Replaces A42331)

1шт.

51

R15049

COLLAR

COLLAR - pinion stop

1шт.

52

R15048

RING

RING - retainer, pinion stop

1шт.

55

A43852

LEVER

SHAFT LEVER ASSEMBLY

1шт.

56

A43851

SHAFT

SHAFT - shift lever

1шт.

57

R21573

O-RING,0.369" ID x 0.515" OD x 0.073"

O-RING - 13/64 x 33/64 x 1/16"

1шт.

58

R21574

O-RING,0.244" ID x 0.391" OD x 0.073"

O-RING - 15/64 x 25/64 x 1/16"

1шт.

59

G46146

SNAP RING,#37, Ext

Ring, Snap, , shift lever attaching pin #37, Ext

1шт.

60

A43854

O-RING,3.237" ID x 0.106" THK

O-RING - lever housing to drive housing

1шт.

61

A43858

HOUSING

HOUSING ASSEMBLY - drive, Includes: Ref. 62 - 64

1шт.

62

A40868

BUSHING

BUSHING - 9/16 x 3/4 x 3/4"

1шт.

63

R15023

WICK

WICK - oil

1шт.

64

221-1849

PLUG

PLUG - 1/8" hex socket head, pipe

1шт.

65

62-414

HEX SOC SCREW,1/4"-28 x 7/8"

SCREW - 1/4 x 7/8" NF socket head cap

6шт.

66

A43857

PLUNGER

PLUNGER ASSEMBLY

1шт.

67

A41922

WASHER

WASHER - 53/64 x 1-3/8 x 1/32"

1шт.

68

A42308

BOOT

BOOT - plunger

1шт.

69

A43380

BACK-UP RING

RETAINER - spring, with 1-13/64" hole

1шт.

70

A41242

SPRING

SPRING - 1-3/8" OD x 2-25/32" long

1шт.

71

A43419

SEAT

RETAINER - spring, with 13/32" hole

1шт.

72

G46146

SNAP RING,#37, Ext

Ring, Snap, , plunger spring retainer #37, Ext

1шт.

73

A43856

NUT

NUT - plunger rod guide adjusting

1шт.

75

A43846

SOLENOID

SOLENOID ASSEMBLY, See Figure 182

1шт.

76

R15159

SCREW,Hex, 1/4" - 20 x 3/8", w/ LW

SCREW - 1/4 x 23/64" NC hex

4шт.

Выбрано товаров: 37
