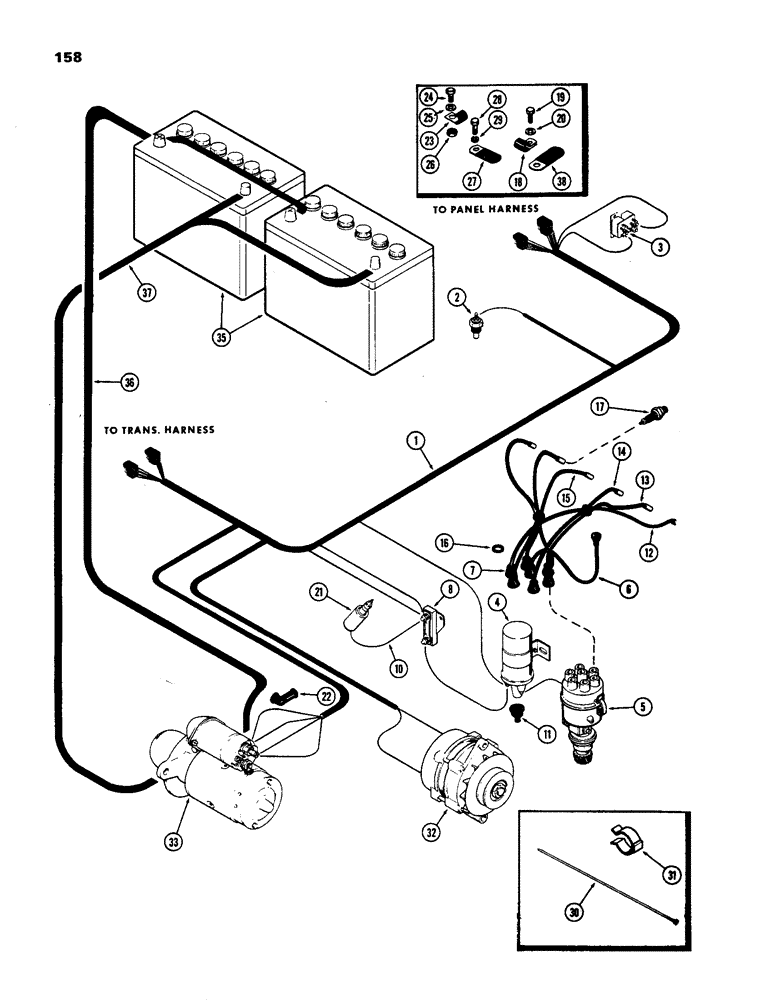

Запчасти Case IH 970 (158) - ENGINE HARNESS, 377B SPARK IGNITION ENGINES (04) - ELECTRICAL SYSTEMS

1

A135743

HARNESS

- engine wire (Used with turn signal)

1шт.

1

A135744

HARNESS

- engine wire (Used with Delco alternator) (Used without turn signal)

1шт.

1

A62411

HARNESS

- engine wire (Used with Prestolite alternator) (Used without turn signal)

1шт.

2

A61787

TRANSMITTER

UNIT - engine temperature sending (with or without air conditioning)

1шт.

3

A59704

BREAKER

- circuit, See Figure 152

1шт.

4

A58811

COIL

- 12 volt, See Figure 152

1шт.

5

A58836

DISTRIBUTOR, See Figure 200

1шт.

6

A29180

CABLE

WIRE - distributor cap to coil (See A62857)

1шт.

6

A62857

ELECTRICAL WIRE

WIRE - distributor cap to coil (noise suppression)

1шт.

7

A29338

COVER

NIPPLE - distributor and coil wires

7шт.

8

A46049

WEIGHT

RESISTOR - 12 volt (Replaces A24504)

1шт.

10

A59716

WIRE - carburetor solenoid to ignition resistor

1шт.

11

G46803

BOOT

NIPPLE - ignition coil wire

1шт.

12

A26768

CABLE

WIRE - #1 spark plug (26" long) (See A62855)

1шт.

12

A62855

WIRE - #1 spark plug (26" long) (noise suppression)

1шт.

13

A26800

CABLE

WIRE - #2 spark plug (21" long) (See A62856)

1шт.

13

A62856

WIRE - #2 spark plug (21" long) (noise suppression)

1шт.

14

A31212

ELECTRICAL WIRE

WIRE - #3 and #6 spark plugs (15" long) (See A62853)

2шт.

14

A62853

CABLE

WIRE - #3 and #6 spark plugs (15" long) (noise suppression)

2шт.

15

A20144

ELECTRICAL WIRE

WIRE - #4 and #5 spark plugs (11" long) (See A62854)

2шт.

15

A62854

CABLE

WIRE - #4 and #5 spark plugs (11" long) (noise suppression)

2шт.

16

A23258

RING - ignition wires

1шт.

17

G44840

SPARK PLUG

PLUG - spark

4шт.

18

A7922

CLIP

- wire, carburetor solenoid

1шт.

19

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

20

92-6

LOCK WASHER,3/8"

1шт.

21

A33219

SOLENOID

ASSEMBLY - carburetor

1шт.

22

A21753

CAP

- starter positve terminal

1шт.

23

A59718

CLAMP

CLIP - engine wire harness

1шт.

24

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

25

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

26

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

27

A37179

CLIP

- fender and alternator wires

1шт.

28

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

29

92-6

LOCK WASHER,3/8"

1шт.

30

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - engine wire harness (Replaces L11541)

1шт.

31

A60894

CLIP

- alternator wire harness to breather tube

1шт.

32

REF

INSTRUCTION

ALTERNATOR ASSEMBLY, See Figure 148

1шт.

33

REF

INSTRUCTION

STARTING MOTOR, See Figure 146

1шт.

35

A58559

BATTERY

- 12 volt

2шт.

36

A62142

CABLE

- battery positive (Replaces A59729)

1шт.

37

A59730

CABLE - battery negative (Ground)

1шт.

38

A22883

CLIP

- battery cable

1шт.
